Description

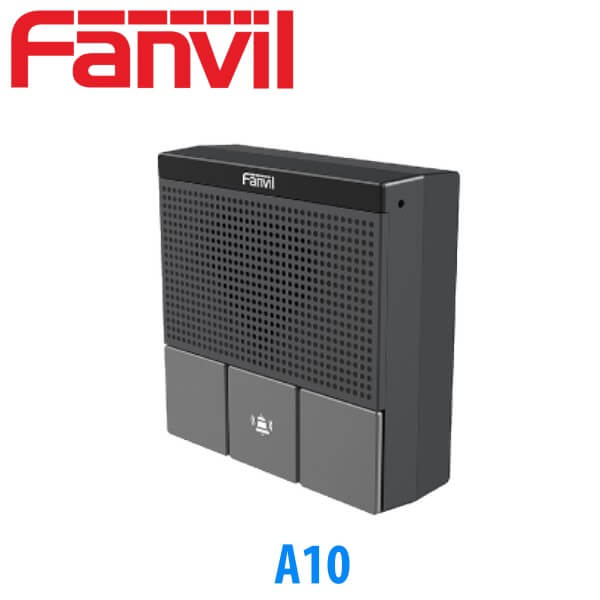

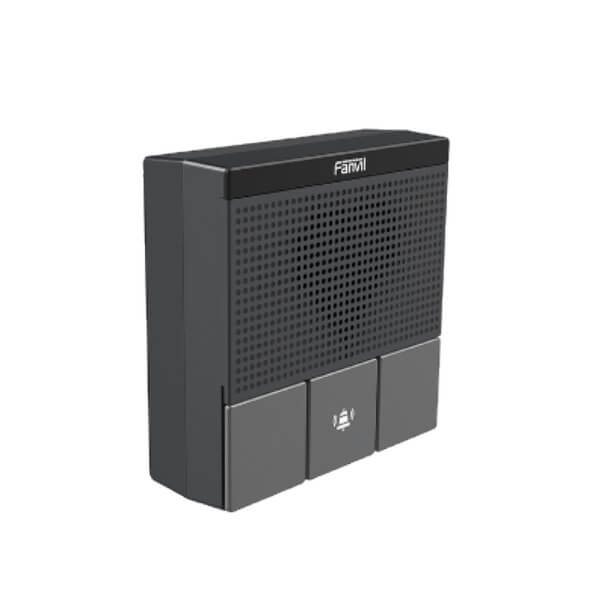

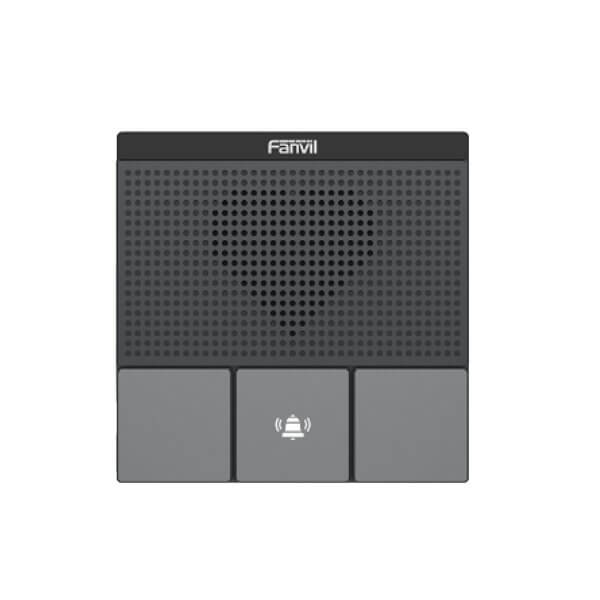

Fanvil A10 SIP Intercom Ghana

The Fanvil A10 Ghana SIP mini intercoms are meticulously designed for indoor settings, addressing security, intercom, and broadcasting requirements. Characterized by a sleek, contemporary design, these intercoms offer numerous features to improve functionality and user experience. Supporting 2 SIP accounts and 3 detachable function buttons, along with PoE power supply, they ensure seamless communication.Beyond their stylish appearance, the A10 series presents advanced functionalities, including HD audio, IP54 waterproof and dustproof rating, and integrated 2.4G & 5G Wi-Fi connectivity (found in A10W/A10W-E models), ensuring exceptional communication quality even in adverse conditions.

What distinguishes the A10 series is its flexibility in installation methods. It accommodates both wall mountable setups (A10/A10W) and standard 86 box embedded installations (A10-E/A10W-E), making it adaptable to various indoor scenarios.The incorporation of these features not only enhances communication but also improves security and convenience indoors. Whether for residential complexes, office spaces, or commercial establishments, the Fanvil A10 Ghana SIP mini intercoms offer dependable solutions tailored to contemporary communication demands.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 4G, 802.11 b/g/n
  • 5G, 11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : 711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : 722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light :  Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W (A10/A10-E)
  • 42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 48W~2.37W (A10/A10-E)
  • 99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• W/CTN : 3.41kg
• W/CTN : 3.6kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
