Description

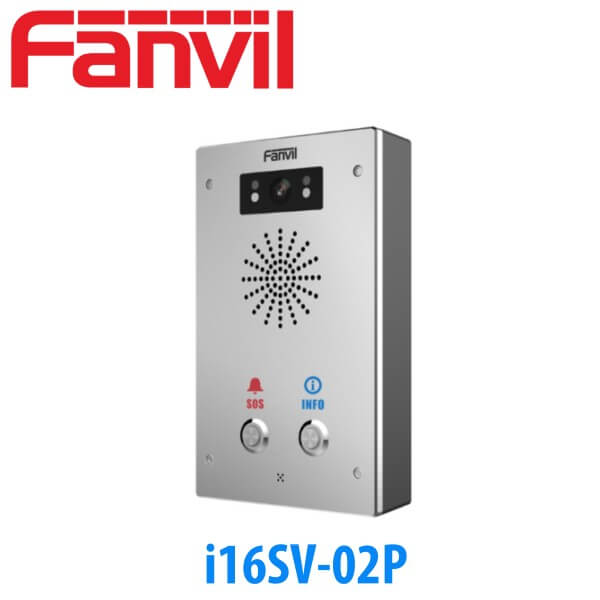

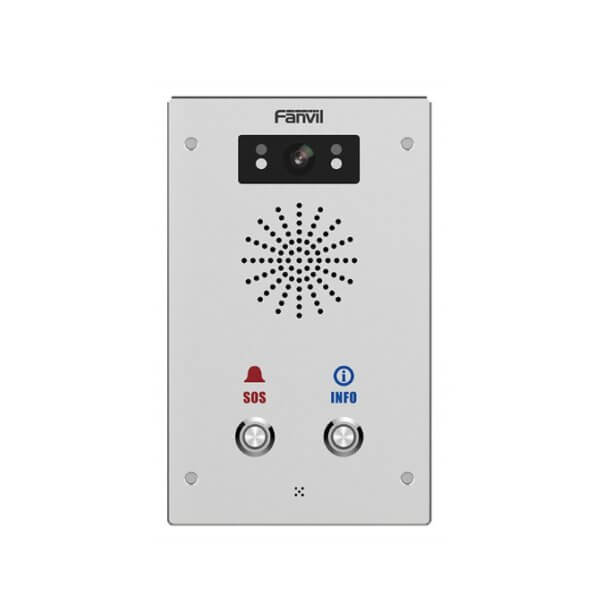

Fanvil i16SV-02P SIP Intercom Ghana

The Fanvil i16SV-02P Ghana SIP Intercom is a state-of-the-art solution designed for outdoor environments, emphasizing reliability, high-definition audio/video features, and robust IP65/IK10 protection standards. Tailored to diverse settings, it seamlessly integrates security, intercom, and broadcasting functions for superior communication experiences. Built to endure outdoor challenges, the Fanvil i16SV-02P Ghana SIP Intercom boasts durability and performance, fortified by its IP65/IK10 protection grade against dust, water, and physical impacts, ensuring uninterrupted operation.

Focused on enhancing communication efficiency, this system offers a comprehensive feature set for optimized user experiences. From clear audio transmission to HD video streaming, every aspect is designed for unmatched clarity and reliability. Moreover, it goes beyond traditional intercoms with advanced broadcasting capabilities, enabling efficient information dissemination across designated areas in industrial, commercial, or residential settings. As a versatile device, it forms the core of seamless communication infrastructure.

The Fanvil i16SV-02P Ghana SIP Intercom sets new benchmarks for outdoor communication, offering a holistic solution with cutting-edge technology, unmatched reliability, and uncompromising performance to meet modern users’ evolving needs.

Highlights

• Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV-02P)
• IP65 waterproof and dustproof.
• IK10 anti-collision with robust die-cast aluminum frame
• Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
• HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
• Audio line out port, expandable external active speaker.
• Built-in 2 short-in detect port and 2 short-out control port
• Support built-in TF card slot for data storage or audio offline broadcasting.

Features

Generic

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key
• Support mono active speaker
• Talkback recording output
• Switch signal input and output
• Support TF card
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Incoming call multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec : G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband codec : G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV-02P)

• Sensor : 1/2.8” color CMOS
• Pixels : 2 Mega
• Video coding : H.264
• Resolution : 720P/1080P
• Minimum illumination : 0.1Lux, support for infrared illumination
• Viewing angle :
  • Diagonal : 126°
  • Horizontal : 98°
  • Vertical : 65°

Network

• Physical : 10/100 Mbps Ethernet
• IP mode : IPv4/IPv6/IPv4&IPv6
• IP configuration : Static IP / DHCP / PPPoE
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• Qos

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 2 DSS key (support LED)
• RJ45 port x1 : connect the network
  • Power over Ethernet (IEEE 802.3af), class 3
• Line out port x1 : connect the active speaker
  • Out : adjustable by volume, max up to1.2Vpp.
  • Port : terminal socket
• Recording output port x1 : connect audio device
  • Out : mixed output of local microphone voice and call voice recording
  • Impedance : 15 Ohm
  • Port : terminal socket
• Short circuit input and output port x2 (built-in relay)
  • Relay : MAX DC30V / 2A, AC125V / 0.5A
  • Active switching output : 12V/500mA DC(only 1 relay support)
  • Port : terminal socket
• Tamper alarm switchx1
• TF card slot x1 : connect TF card
• DC port x1 : DC power input
  • DC power input : DC12V~24V/1A
  • Port : 2 Pin terminal socket
• Protection level : IP65 and IK10
• Housing material : aluminum alloy shell
• Installation : wall-mounted
• Working temperature : -30℃ ~ 60℃
• Storage temperature : – 40℃ ~ 70℃
• Working humidity : 10~95%
• Net weight/box : 9.5 kg
• Gross weight/box : 10.05 kg
• Device dimensions : 195x120x40 mm
• Gift box dimensions : 260x165x62 mm
• Outer CTN dimensions : 348x328x280 mm (10 PCS)
