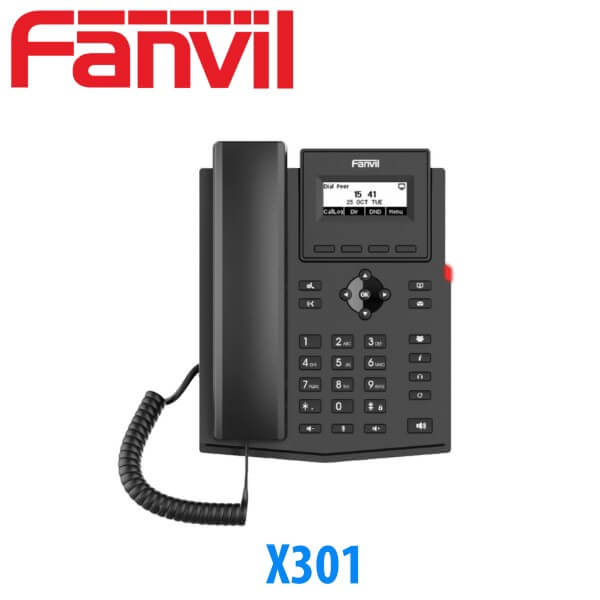

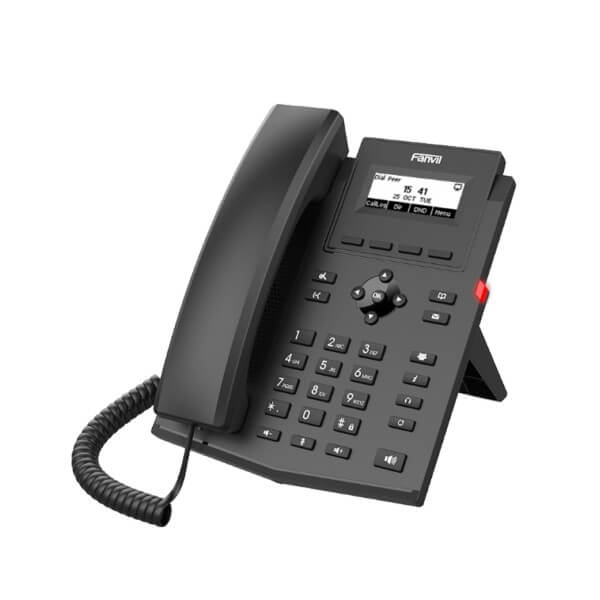

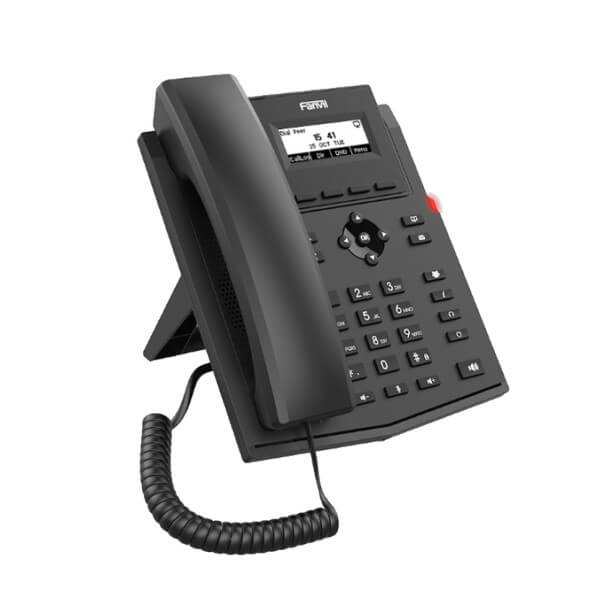

The Fanvil X301 Ghana is a cost-effective SIP phone with multi-functionality. It features a 2.3-inch 128×48 pixel dot-matrix display, supporting 2 SIP lines and local 6-party conferencing to render a user-friendly experience.

Description

Fanvil X301 Entry Level IP Phone Ghana

The Fanvil X301 Ghana is a cost-effective SIP phone with multi-functionality. It features a 2.3-inch 128×48 pixel dot-matrix display, supporting 2 SIP lines and local 6-party conferencing to render a user-friendly experience. The Fanvil X301 Ghana has rich functions such as HD audio, dual 10/100 Mbps network ports, providing an efficient and high-quality business communication experience for enterprises.

Features

  • 3-inch 128×48 pixel dot-matrix display
  • Support audio codec G.722 and Opus, HD audio on speakerphone and handset
  • Support 6-party local conference
  • Support EHS wireless headset
  • Dual 10/100 Mbps network ports
  • Two installation methods of desktop stand and wall mountable

Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • Dot-matrix display screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall mountable (optional)
  • Optional External Power Supply

Phone Functions

  • Local Phonebook (1000 entries)
    • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Blocked List/Allowed List
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URI
  • uaCSTA
  • Wideband Codec : G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
    • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (with server)
  • 6-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u, G.723.1,G.726,G.729A/B, iLBC
  • Syslog

Network

  • Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6
  • IP Configuration : Static IP / DHCP / PPPoEl Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • 0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPV6
  • LLDP
  • PPPoE
  • 1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
    PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade

Physical Specifications

  • LCD : 128×48 pixel graphical LCD with backlight
  • Keypad : 33 keys, including
  • 4 Soft-keys
  • 9 Function keys (Hold/Transfer/Voicemessage/Conference/Phonebook/MWI/Headset/Redial/Hands-free)
  • 4 Navigation keys
  • 1 OK key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys (Up/Down/Mute (Microphone))
  • Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 5M CAT.5E Ethernet Cable x1
  • Desktop Stand x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • Security Slot x1
  • DC Power Input : 5V/0.6A
  • Power Consumption(Adapter) : 0.8~1.29W
  • Power Consumption(PoE) : 1.25~1.86W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%
  • Installation :
    • Desktop Stand
    • Wall mountable (optional )
  • Color : Black
  • W/CTN : 9.05kg(X301), 8.55kg(X301P)
  • W/CTN : 9.76kg(X301), 9.26kg(X301P)
  • Device Dimensions :
    • Desktop Stand (45°) : 169×201.1×177.4 mm
    • Desktop Stand (50°) : 169×191.9×185.8 mm
    • Wall mountable : 169×120.1×213.7 mm
    • Gift Box Dimensions : 250x220x55mm
    • Outer CTN Dimensions : 460x300x270mm(10 PCS)
