Description

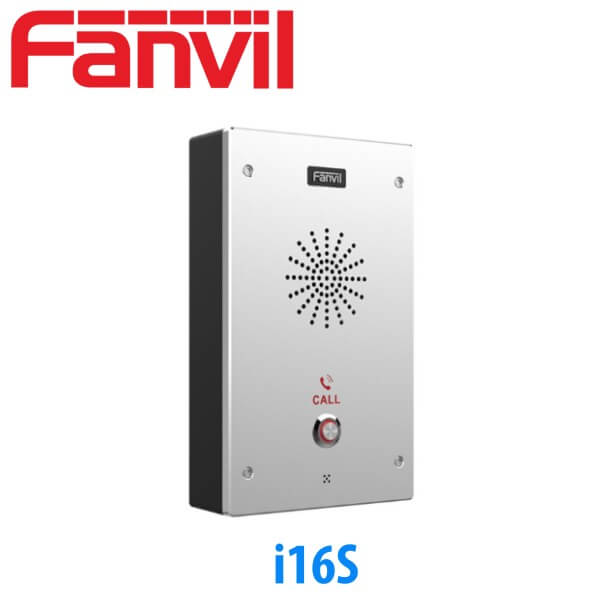

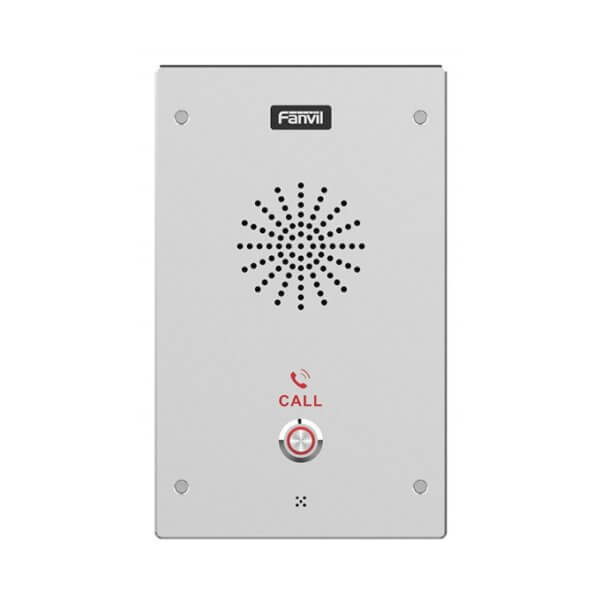

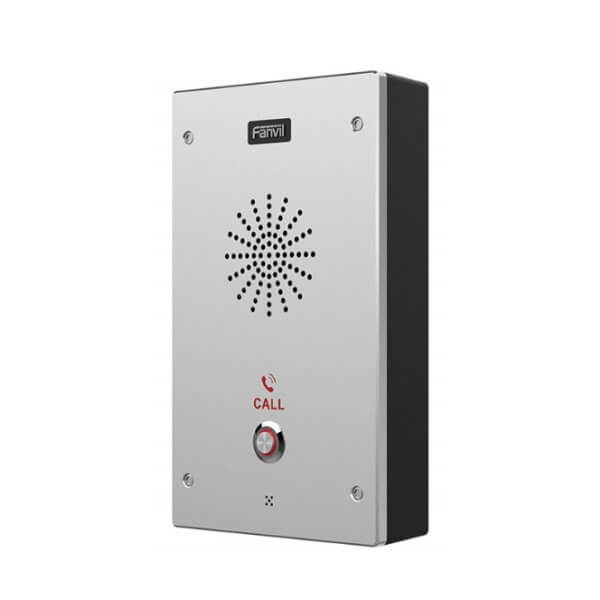

Fanvil i16S SIP Intercom Ghana

The Fanvil i16S Ghana SIP Intercom stands as an innovative solution tailored for outdoor settings, prioritizing reliability and performance. Engineered meticulously, this intercom system ensures top-notch audio and video quality, even in adverse outdoor conditions. With an impressive IP65/IK10 protection rating, it remains resilient against elements, preserving its functionality over time.

Beyond its sturdy design, the Fanvil i16S Ghana integrates security features, audio/video intercom functionality, and efficient broadcasting capabilities, offering users unmatched convenience and peace of mind. Whether in commercial, industrial, or residential environments, it excels in delivering seamless communication experiences, catering to diverse user needs and enhancing productivity.

Additionally, the Fanvil i16S Ghana embodies a dedication to innovation, consistently pushing boundaries in communication technology. Its adaptability and reliability make it indispensable for environments requiring dependable communication solutions.More than a mere communication device, the Fanvil i16S Ghana SIP Intercom signifies engineering excellence and a commitment to addressing modern communication challenges with cutting-edge solutions.

Highlights

• Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV)
• IP65 waterproof and dustproof.
• IK10 anti-collision with robust die-cast aluminum frame
• Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
• HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
• Audio line out port, expandable external active speaker.
• Built-in 2 short-in detect port and 2 short-out control port
• Support built-in TF card slot for data storage or audio offline broadcasting.
• Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.

Features

Generic

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key
• Support mono active speaker
• Talkback recording output
• Switch signal input and output
• Support TF card
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)
• Incoming call multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec : G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband codec : G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV)

• Sensor : 1/2.8” color CMOS
• Pixels : 2 Mega
• Video coding : H.264
• Resolution : 720P/1080P
• Minimum illumination : 0.1Lux, support for infrared illumination
• Viewing angle :
• Diagonal : 126°
• Horizontal : 98°
• Vertical : 65°

Network

• Physical : 10/100 Mbps Ethernet
• IP mode : IPv4/IPv6/IPv4&IPv6
• IP configuration : Static IP / DHCP / PPPoE
• VPN : L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 1 DSS key (support LED)
• RJ45 port x1 : connect the network
  • PoE enabled
• Line out port x1 : connect the active speaker
  • Out : adjustable by volume, max up to1.2Vpp.
  • Port : terminal socket
• Recording output port x1 : connect audio device
  • Out : mixed output of local microphone voice and call voice recording
  • Impedance : 15 Ohm
  • Port : terminal socket
• Short circuit input and output port x2 (built-in relay)
  • Relay : MAX DC30V / 2A, AC125V / 0.5A
  • Active switching output : 12V/500mA DC(only 1 relay support)
  • Port : terminal socket
• Tamper alarm switchx1
• TF card slot x1 : connect TF card
• DC port x1 : DC power input
  • DC power input : DC12V~24V/1A
  • Port : 2 Pin terminal socket
• PoE level : Class 3
• Protection level : IP65 and IK10
• Housing material : aluminum alloy shell
• Installation : wall-mounted
• Working temperature : -30℃ ~ 60℃
• Storage temperature : – 40℃ ~ 70℃
• Working humidity : 10~95%
• W/CTN : 9.5kg
• W/CTN : 10.05kg
• Device dimensions : 195x120x40 mm
• Gift box dimensions : 260x165x62 mm
• Outer CTN dimensions : 348x328x280 mm (10 PCS)
