Fanvil X303 Ghana



Fanvil X303 Ghana

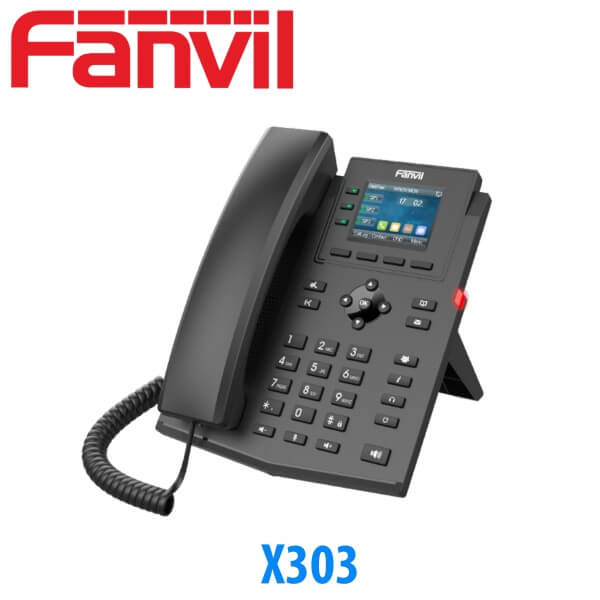

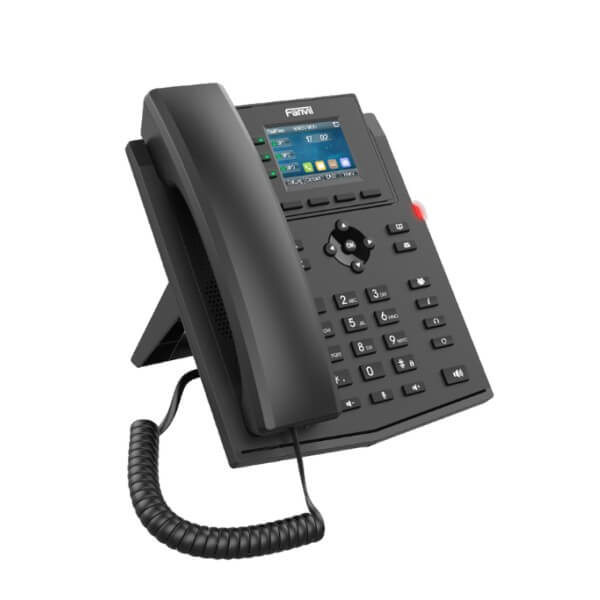

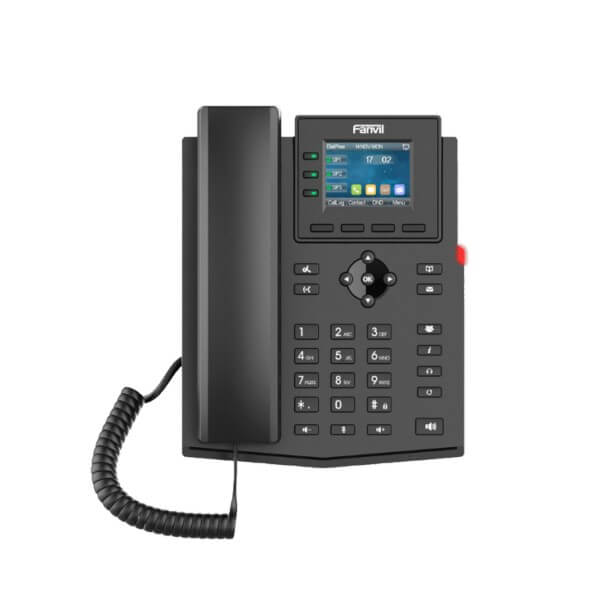

The Fanvil X303 Ghana is a cost-effective colour screen SIP phone designed for enterprise situations. It features a 2.4-inch 320×240 pixel colour screen, supports 4 SIP lines and local 6-party conferencing to render a user-friendly experience.

Description

Fanvil X303 IP Phone Ghana

The Fanvil X303 Ghana is a cost-effective colour screen SIP phone designed for enterprise situations. It features a 2.4-inch 320×240 pixel colour screen, supports 4 SIP lines and local 6-party conferencing to render a user-friendly experience. The Fanvil X303 Ghana has rich functions such as HD audio, dual 10/100 Mbps network ports, providing an efficient and high-quality business communication experience for enterprises.

Features

  • 4-inch 320×240 pixel color screen
  • Support audio codec G.722 and Opus, HD audio on speakerphone and handset
  • Support 6-party local conference
  • Support EHS wireless headset
  • Dual 10/100 Mbps ports
  • Two installation methods of desktop stand and wall mountable

Specifications

Generic

  • 4 SIP Lines
  • HD Voice
  • 4-inch color screen
  • Handset / Hands-free / Headset mode
  • Desktop Stand / Wall mountable (optional)
  • Optional External Power Supply

Phone Functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/Out/Missed, 600 entries)
  • Blocked List/Allowed List
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Server)
  • Action URL / Active URIl uaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 6-way Conference
  • Hot Line
  • Hot desking

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHzFrequency Response)
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u,G.723.1,G.726, G.729A/B, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring

Datasheet Download
