Cisco Catalyst2960-24TCS Ghana



Cisco Catalyst2960-24TCS Ghana

The Cisco Catalyst2960-24TCS Ghana switch features advanced Quality of Service, rate-limiting, Access Control Lists, IPv6 management, multicast control, and more

Category:

Description

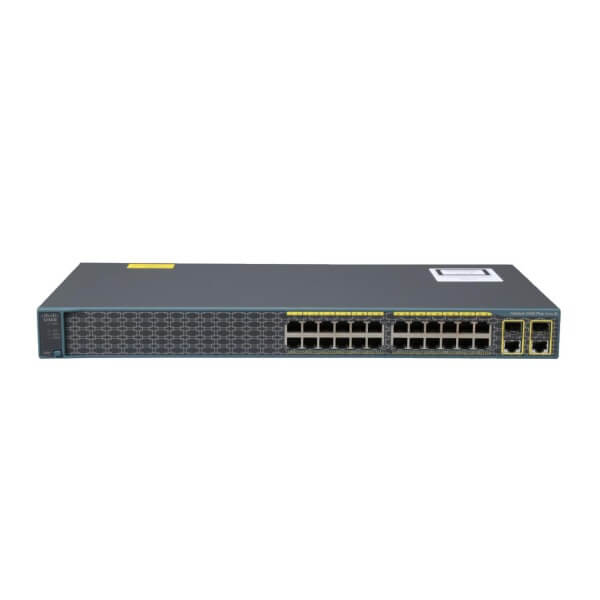

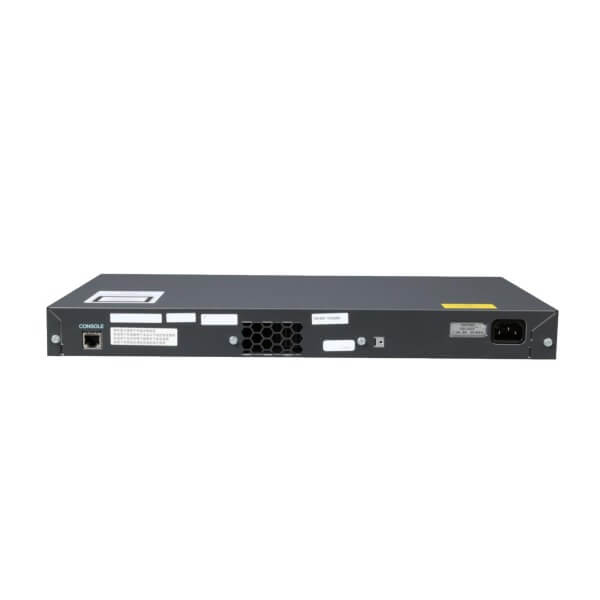

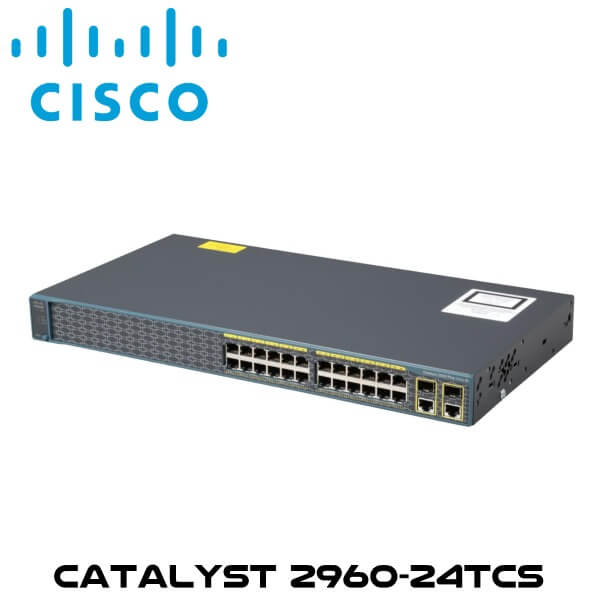

Cisco Catalyst2960-24TCS Network Switch Ghana

The Cisco Catalyst2960-24TCS Ghana is an enterprise-class switch that gives you advanced features and control over your small-to-medium sized business network. This switch features twenty-four Fast Ethernet ports as well as two dual-purpose uplink ports. These dual-purpose uplink ports can either function as a Gigabit Ethernet port or as SFP-based Gigabit Ethernet port. With the included Lan Lite software, you can easily and quickly configure the switch’s settings. The Cisco Catalyst2960-24TCS Ghana switch features advanced Quality of Service, rate-limiting, Access Control Lists, IPv6 management, multicast control, and more.

Features

  • Cisco Catalyst2960-24TCS Ghana supports Layer 2 Fast Ethernet switching in a 24-port configuration with 2 dual-purpose uplink ports(10/100/1000 or SFP)
  • Security management through SSH, SSL, SNMPv3, and Network Admission Control enabled through 802.1x, MAC-Auth Bypass, and Port Security
  • Availability : 802.1S/W enables standards-based fault tolerance, load balancing, and rapid recovery; PVST+ increases available bandwidth by allowing traffic on redundant links
  • QoS : Cisco Catalyst2960-24TCS Ghana supports traffic classification and shaping to prioritize various applications
  • Management : Cisco IOS software based switch operation, Cisco Network Assistant support : Express Setup is quick and easy using the web page interface for network configuration
  • Simplified installation, configuration, and troubleshooting with ease of use capabilities such as Auto Smart Ports and DHCP Auto Install
  • Cisco Catalyst2960-24TCS Ghana supports enhanced troubleshooting for link connectivity issues and cable diagnostics
  • Single IP address, SYSLOG, SNMP management for a stack of up to 16 switches
  • Limited lifetime hardware warranty
  • Software updates at no additional charge

Specifications

Performance
Standards
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1p CoS Prioritization
  • IEEE 802.1Q VLAN
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab (LLDP without MED)
  • IEEE 802.3ad
  • IEEE 802.3ah (100BASE-X single- and multimode fiber only)
  • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  • IEEE 802.3 10BASE-T specification
  • IEEE 802.3u 100BASE-TX specification
  • IEEE 802.3ab 1000BASE-T specification
  • IEEE 802.3z 1000BASE-X specification
  • 100BASE-FX (SFP)
  • 1000BASE-SX (SFP)
  • 1000BASE-LX/LH (SFP)
  • Remote Monitoring (RMON) I and II standards
  • SNMPv1, v2c, and v3
Protocols TCP/IP
Ports
  • 24 x  Ethernet 10/100
  • 2 x  dual-purpose ports (10/100/1000 or SFP)
Bandwidth Forwarding Bandwidth : 16Gbps
Flash Memory 32MB
Memory (DDR SDRAM) 64MB
Speed 10/100 Mbps
10/100/1000 Mbps (dual-purpose ports only)
MAC Address Table Size 8K
Frame Rate 9016 bytes
Switching Method Managed
VLANs
  • up to 64
  • up to 4000 IDs
Output Data Size Maximum Transmission Unit (MTU) : Up to 9198 bytes
Maximum Forwarding Rate 6.5mpps
Advanced Features
  • Unicast MAC Addresses
  • Default : 8000
  • QOS : 8000
  • Dual : 8000IPv4 IGMP Groups
  • Default : 256
  • QoS : 256
  • Dual : 256
  • IPv4 MAC QoS Acccess Control Entries (ACEs)
    • Default : 128
    • QoS : 384
    • Dual : 0
  • IPv4 Mac Security ACEs
    • Default : 384
    • QoS : 128
    • Dual : 256
Management
  • BRIDGE-MIB
  • CISCO-CABLE-DIAG-MIB
  • CISCO-CDP-MIB
  • CISCO-CLUSTER-MI
  • CISCO-CONFIG-COPY-MIB
  • CISCO-CONFIG-MAN-MIB
  • CISCO-ENTITY-VENDORTYPE-OID-MIB
  • CISCO-ENVMON-MIB
  • CISCO-ERR-DISABLE-MIB
  • CISCO-FLASH-MIB
  • CISCO-FTP-CLIENT-MIB
  • CISCO-IGMP-FILTER-MIB
  • CISCO-IMAGE-MIB
  • CISCO-IP-STAT-MIB
  • CISCO-LAG-MIB
  • CISCO-MAC-NOTIFICATION-MIB
  • CISCO-MEMORY-POOL-MIB
  • CISCO-PAGP-MIB
  • CISCO-PING-MIB
  • CISCO-PORT-QOS-MIB
  • CISCO-PORT-SECURITY-MIB
  • CISCO-PORT-STORM-CONTROL-MIB
  • CISCO-POWER-ETHERNET-EXT-MIB
  • CISCO-PRODUCTS-MIB
  • CISCO-PROCESS-MIB
  • CISCO-RTTMON-MIB
  • CISCO-SMI-MIB
  • CISCO-STP-EXTENSIONS-MIB
  • CISCO-SYSLOG-MIB
  • Cisco-UDLDP-MIB
  • CISCO-TC-MIB
  • CICSO-TCP-MIB
  • CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
  • CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB
  • CISCO-VTP-MIB
  • ENTITY-MIB
  • ETHERLIKE-MIB
  • IEEE8023-LAG-MIB
  • IF-MIB
  • INET-ADDRESS-MIB
  • OLD-CISCO-CHASSIS-MIB
  • OLD-CISCO-FLASH-MIB
  • OLD-CISCO-INTERFACES-MIB
  • OLD-CISCO-IP-MIB
  • OLD-CISCO-SYS-MIB
  • OLD-CISCO-TCP-MIB
  • OLD-CISCO-TS-MIB
  • RFC1213-MIB
  • RMON-MIB
  • RMON2-MIB
  • SNMP-FRAMEWORK-MIB
  • SNMP-MPD-MIB
  • SNMP-NOTIFICATION-MIB
  • SNMP-TARGET-MIB
  • SNMPv2-MIB
  • TCP-MIB
  • UDP-MIB
Pressure Levels Typical Sound Pressure : 40dB
MTBF 403,745 hours
General
Agency & Safety Certifications
  • ·UL 60950-1, Second Edition
  • ·CAN/CSA 22.2 No. 60950-1, Second Edition
  • ·TUV/GS to EN 60950-1, Second Edition
  • ·CB to IEC 60950-1 Second Edition with all country deviations
  • ·CE Marking
  • ·NOM (through partners and distributors)
Emissions Standards
  • ·FCC Part 15 Class A
  • ·EN 55022 Class A (CISPR22)
  • ·EN 55024 (CISPR24)
  • ·AS/NZS CISPR22 Class A
  • ·CE
  • ·CNS13438 Class A
  • ·MIC
  • ·GOST
  • ·China EMC Certifications
Environmental Reduction of Hazardous Substances (ROHS) 5
Environmental Requirements
  • Operating Temperature Up to 5,000′ / 1500 m : 23° to 113°F / -5° to 45°C
  • Operating Temperature Up to 10,000′ / 3000 m : 23° to 104°F / -5° to 40°C
  • Short-term Exception at Sea Level : 23° to 31°F / -5° to 55°C
  • Short-term Exception Up to 5000′ / 1500 m : 23° to 122°F / -5° to 50°C
  • Short-term Exception Up to 10,000′ / 3000 m : 23° to 113°F / -5° to 45°C
  • Operating Altitude : Up to 10,000′ / 3,000m
  • Storage Altitude : Up ot 13,000′ / 4,000m
  • Operating Relative Humidity : 10% to 95% non-condensing
    Storage Relative Humidity : 10% to 95% non-condensing
Power Consumption
  • 100% Throughput
  • Measured Power Consumption : 22W
  • 5% Throughput
  • Measured Power Consumption : 21W
Power Requirements 100 to 240 VAC, 1.3 to 0.8 A, 50 to 60 Hz
Power Rating 0.05kVA
Safety Compliance
  • UL 60950-1, Second Edition
  • CAN/CSA 22.2 No. 60950-1, Second Edition
  • TUV/GS to EN 60950-1, Second Edition
  • CB to IEC 60950-1 Second Edition with all country deviations
  • CE Marking
  • NOM (through partners and distributors)
Emission Standard
  • FCC Part 15 Class A
  • EN 55022 Class A (CISPR22)
  • EN 55024 (CISPR24)
  • AS/NZS CISPR22 Class A
  • CE
  • CNS13438 Class A
  • MIC
  • GOST
  • China EMC Certifications
RoHS Compliant Yes
Dimensions 1.73 x 17.7 x 9.52″ / 4.4 x 45 x 24.2cm
Weight 8 lb / 3.6kg
Packaging Info
Box Dimensions (LxWxH) 21.8 x 14.2 x 6.8″
