Flyingvoice FGW4148-48S Ghana



Flyingvoice FGW4148-486S Ghana

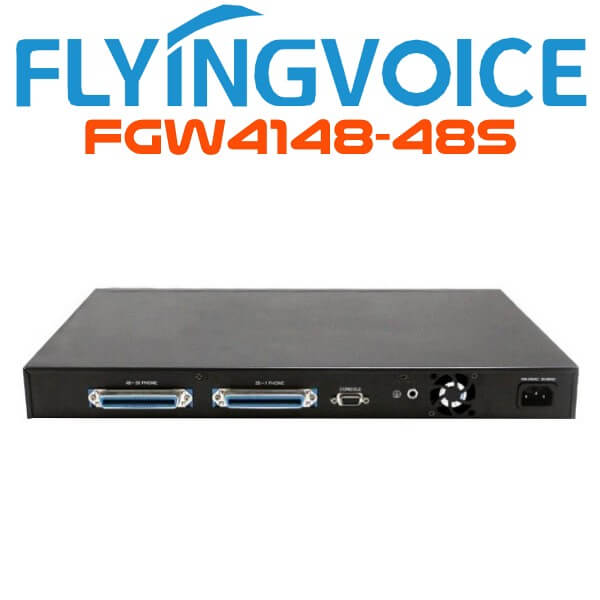

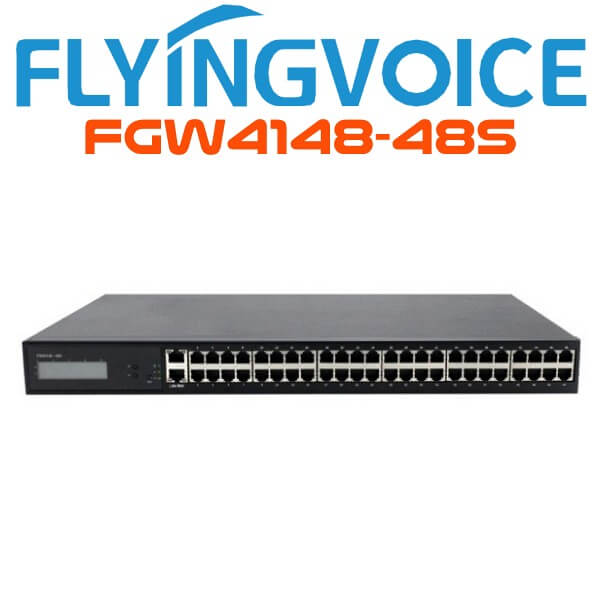

TheFlyingvoice FGW4148-48S VoIP Gateway Ghana has 48 FXS ports, one LAN port, and one WAN port with wire-speed NAT router. It is one in all the foremost popular VoIP gateway researched and produced by Flyingvoice.

Category:

Description

Flyingvoice FGW4148-486S VoIP Gateway Ghana

The Flyingvoice FGW4148-48S VoIP Gateway Ghana has 48 FXS ports, one LAN port, and one WAN port, is one in all the foremost popular VoIP gateway researched and produced by Flyingvoice. This product cannot only provide 48 SIP lines for users to create calls but also it’s a wire-speed NAT router, which causes you to enjoy an easy network atmosphere. What’s more, FGW4148-48S supports T.38 real-time FAX and T.30 FAX with G.711. Flyingvoice FGW4148-48S VoIP Gateway Ghana is a stand-alone device, which needs no PC to create Internet calls. This gateway guarantees clear and reliable voice quality on the Internet, which is fully compatible with the SIP industry standard and able to interoperate with many other SIP devices and software on the market.

The Flyingvoice FGW4148-48S VoIP Gateway Ghana is VoIP Gateway products in Flyingvoice, allowing customers to register to a different register to different SIP Proxy server, IP PBX and establishes up to several concurrent VoIP incorporate more flexibility within the auditory communication. they excellent voice quality, packed feature functionality and best-in-class price-performance point enables consumers to maximize the facility of IP voice and data connectivity. With 48 FXS ports and rich functions, FGW4148 VoIP adapter satisfies customers’ needs for network and calls, and is very suitable for voice office network structures such as industry parks, hotels, and enterprises.

Key Features

  • Gigabit Ethernet Ports
    • Flyingvoice FGW4148-48S VoIP Gateway Ghana has 2*10/100/1000M Gigabit Ethernet port providing reliable and high-speed network, transmitting and receiving data smoothly.
  • Multi-Function
    • Flyingvoice FGW4148-48S VoIP Gateway can make and receive SIP calls, it also supports IP sharing and QoS mechanism. The USB ports can make users connect to external storage devices, and realize file and data sharing via it. Meanwhile, it supports T.30, T.38 and G.711 protocols, no additional purchase costs.
  • Stand-Alone Device
    • FGW4148 is a stand-alone device, which requires no PC to make Internet calls. It supports 16/48 voice calls simultaneously, providing convenient and flexible voice communication.
  • Broad Compatibility
    • The FGW4148 is based on SIP V2 standard and compatible with most service providers, which brings great convenience when deploying VoIP network.
  • Easy Management
    • Flyingvoice FGW4148-48S VoIP Gateway Ghana is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Technical Specifications

VoIP SoC : CPU:MT7621A

Flash: 32MB Flash

RAM: 256MB SDRAM

Operating System: Linux 2.6.36

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz

I/O Interfaces

  • 1 RJ-45 for WAN port (Ethernet 1000 Base-T)
  • 1 RJ-45 for LAN port (Ethernet 1000 Base-T)
  • 48 RJ-11 for FXS ports

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • 711(A/u), PESQ>4.3
  • 729AB, PESQ>3.7
  • Adaptive Jitter Buffer Management
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation
  • 30 FAX with G.711
  • Real time FAX over IP via T.38

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMPv2
  • TR069
  • Support Flying FCMS Cloud Management

Protocols

  • SIP V2 (RFC 3261,3262,3263,3264)
  • Backward Compatible with RFC2543
  • Session Timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889 and RFC1890)
  • NAPTR for SIP URI Lookup (RFC2915)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • PPTP/L2TP VPN/ OpenVPN
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provisioning
  • DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • PPPoE
  • SIP proxy redundancy
  • Dynamic via DNS SRV, A records
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detectionv

Call Features

  • 3-Way Conference
  • Music on hold
  • DTMF mode: In-band, RFC2833 and SIP INFO
  • Call Hold
  • Call Forwarding
  • Call Mute
  • Call Transfer
  • Call Waiting
  • Speed Dial
  • Caller ID and CWCID
  • Hotline
  • Dial Plan
  • Black List
  • Call Log
