Flyingvoice FWR7302 Ghana

Description

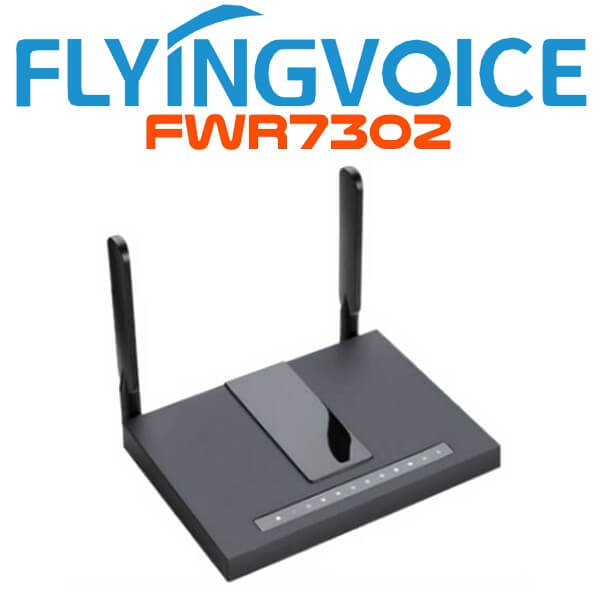

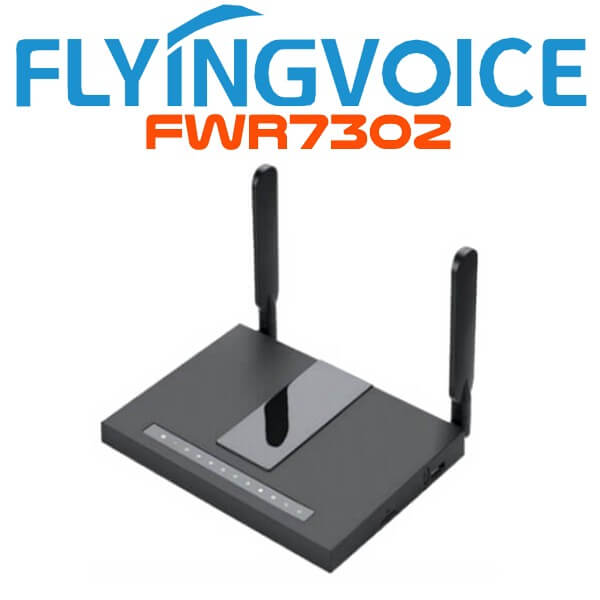

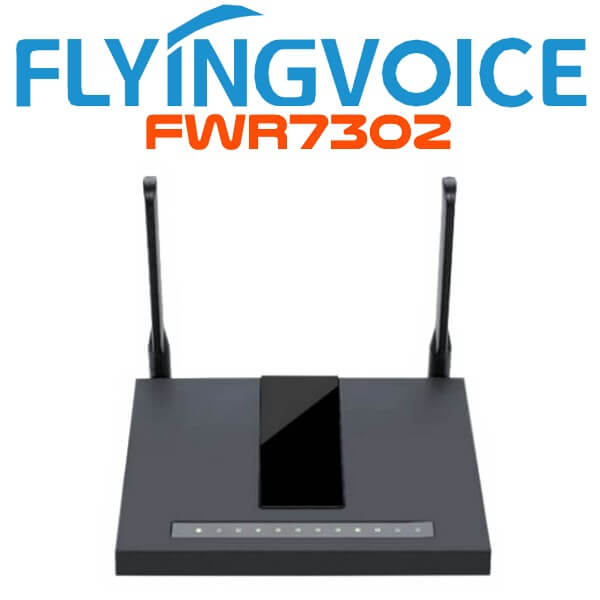

Flyingvoice FWR7302 VoIP Wireless Router Ghana

The Flyingvoice FWR7302 VoIP Wireless Router Ghana is a 4G-LTE Dual-Band Gigabit VoIP Router that includes extended functions which support SFP port, USB port, and 2 FXS ports. This design not only provide users with a conventional VoIP and routing capabilities. Users can also take FWR7302 as a FTP-Server, SAMBA-Server und Disk Management to share LAN files, pictures and other resources. Meanwhile, SFP for internet access, 2 analog FXS ports which is well adapted to small and micro enterprises, 1 FXS for telephone, 1 FXS for Fax, no need to add additional equipment.

The Flyingvoice FWR7302 VoIP Wireless Router Ghana is ideally suited for small and medium enterprises (SMB) to build wireless office. FWR7302 supports IEEE 802.11ac gigabit wireless LAN standard, the highest wireless speed is up to 867 Mbps and it supports both 2.4 GHz and 5GHz bands. For VoIP end user, 5G band guarantee none interference and the transmission quality. The more, users can enjoy greater bandwidth, and enhanced data throughput. Flyingvoice FWR7302 VoIP Wireless Router is a highly integrated wireless routing device that integrates routing and VoIP functions, allowing users to enjoy the pleasure of wireless network anywhere and anytime.

Key Features

Support 4G-LTE

Flyingvoice FWR7302 VoIP Wireless Router comes with a built-in SIM card slot, you can insert a SIM card and turn the router on, enjoying fast, stable Wi-Fi on a 4G LTE network wherever you go.

Gigabit Ethernet Ports

Flyingvoice FWR7302 VoIP Wireless packs 5*10/100/1000M Gigabit Ethernet ports provide reliable and high-speed network, transmitting and receiving data smoothly.

Dual-Band Wi-Fi

FWR7302 delivers up to 1200 Mbps. Dual-band 2.4 GHz and 5 GHz Wi-Fi can reduce interference, ensure transmission quality, and enhance data throughput.

Multi-Function

Flyingvoice FWR7302 Ghana can make and receive SIP calls, it also supports IP sharing and QoS mechanism. The USB port can make users connect to external storage devices, and realize file and data sharing via it. Meanwhile, it supports T.30, T.38 and G.711 protocols, no additional purchase costs.

Broad Compatibility

The Flyingvoice FWR7302 VoIP Wireless Router is based on SIP V2 and 802.11ac standard and compatible with most service providers, which brings great convenience when deploying VoIP network.

Easy Management

The wireless Flyingvoice FWR7302 VoIP Router is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Technical Specifications

VoIPSoC

CPU: MIPS Single-core 600MHz

Flash

16 MB Flash

RAM

128 MB DDR2 RAM

Power

AC/DC Adapter (EU-Version)
AC Input: 100~240V, 50~60Hz
DC Output: 12V,2A

Operating System

Linux 2.6.36

I/O Interfaces

1x RJ45 for WAN Port (Ethernet1000Base-T)
4x RJ45 for LAN Port (Ethernet1000Base-T)
2x RJ11 for analog FXS Port (Phone/Fax)
1x USB 2.0 Host Ports
1x Combo SFP port
1x SIM card slot

Environmental

Operation Temperature: 0~50 Degree C°
Storage Temperature: -25~85 Degree C°
Relative Humidity: 10%~90% No Condensing

Audio Codec

G.711 (A/u), PESQ>4.3
G.729 AB, PESQ>3.7
Adaptive Jitter Buffer Management
Voice Activity Detection
Comfort Noise Generation
Echo Cancellation
T.30 FAX with G.711
Real-time FAX over IP via T.38

LTE Features

Band TDD-LTE B38/B40/B41
Band FDD-LTE B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz)
WCDMA: B1/B5/B8
GSM: B3/B8
Uplink up to 50 Mbps
Downlink up to150 Mbps
2G/3G Fallback

Management
