Description

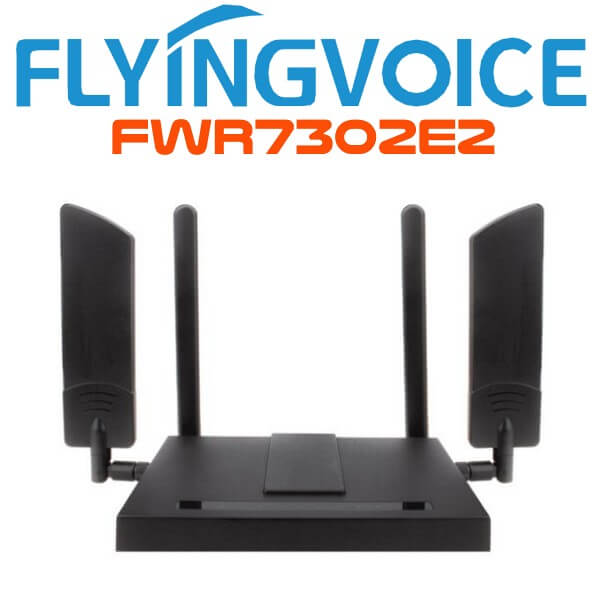

Flyingvoice FWR7302E2 VoIP Router Ghana
The Flyingvoice FWR7302E2 VoIP Router Ghana is a feature-rich 4G-LTE wireless routing device that integrates routing and VoIP functions. It supports Dual-SIM backup and link backup to ensure stable data transmission and dual-band Wi-Fi to ensure transmission quality, and enhance data throughput, allowing users to enjoy the pleasure of wireless network anywhere and anytime. FWR7302E2 supports 5 x 10/100/1000Mbps network ports and NAT routing function. As a portable VoIP router, it can be used as an internal desktop router. Users can enjoy convenient data connection and HD voice. FWR7302E2 can make and receive SIP calls, it also supports IP sharing and QoS mechanism. The USB ports can make users connect to external storage devices, and realize file and data sharing via it. Meanwhile, it supports T.30, T.38 and G.711 protocols, no additional purchase costs.
Key Features
Support 4G-LET
Flyingvoice FWR7302E2 VoIP Router Ghana is equipped with dual SIM card slots for standard SIM card and Micro SIM card, allowing you to enjoy fast, stable Wi-Fi on a 4G LTE network wherever you go.
Gigabit Ethernet Ports
5*10/100/1000M Gigabit Ethernet ports provide reliable and high-speed network, transmitting and receiving data smoothly.
Dual-Band Wi-Fi
The Flyingvoice FWR7302E2 VoIP Router supports the IEEE802.11ac standard, wireless connect rate up to 1200Mbps, supports 2.4GHz and 5GHz. For VoIP end users, the 5G frequency band not only has less interference, but also guarantees transmission quality and provides users with greater Bandwidth enhances data throughput
Stable Data Transmission
Flyingvoice FWR7302E2 VoIP Router Ghana supports SIM switch functionality and link backup to ensure stable data transmission.
Multi-Function
FWR7302E2 can make and receive SIP calls, it also supports IP sharing and QoS mechanism. The USB ports can make users connect to external storage devices, and realize file and data sharing via it. Meanwhile, it supports T.30, T.38 and G.711 protocols, no additional purchase costs.
Broad Compatibility
The Flyingvoice FWR7302E2 is based on SIP V2 and 802.11ac standards and is compatible with most service providers, which brings great convenience when deploying VoIP network.
Easy Management
Flyingvoice FWR7302E2 VoIP Router is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment, remote maintenance and centralized management.
Technical Specifications
Key Features
- >1000Mbps HNAT
- >2T2R 2.4G 802.11b/g/n (300 Mbps)
- >2T2R 5G 802.11ac (867Mbps)
- >VoIP FXS support SIP terminal and FAX
- >Network failover >IPv4 and IPv6
Power
- >AC/DC adapter
- >AC Input: 100~240V, 50~60Hz
- >DC Output: 12V, 2A
- Operating System
- >Linux 2.6.36
I/O Interfaces
- >1 x RJ-45 for 10/100/1000Mbps WAN port
- >4 x RJ-45 for 10/100/1000Mbps LAN port
- >2 x RJ11 FXS port
- >1 x USB 3.0 port
- >2 x SIM slot
- >RST key
- >WPS key
Environmental
- >Operation temperature: 0~50°C
- >Storage temperature: -25~ 85°C
- >Relative humidity: 10%~90% Non-condensing
- Audio Codec
- >G.711(A/u), PESQ>4
- >G.729，PESQ>3.6
- >T.30 FAX with G.711
- >Real time FAX over IP via T.38
- >Adaptive jitter buffer
- >Voice activity detection
- >Comfort noise generation
- >Echo cancellation
LTE Features
- >Dual card backup
- >LTE auto connection VoLTE
- >Lock SIM card
- >Lock cell
- >APN configuration
- >Cat4
- >Cat6 (Optional)
Management
- >Upgradeable firmware
- >Web management
- >IVR management
- >Local and remote syslog
- >Auto provisioning
- >Multi-user level access
- >SNMPv2
- >TR069
- >Telnet
- >FACS
- >SNTP time synchronization
- >Telnet
Protocols
- >SIP V2.0 (RFC 3261, RFC 3262, RFC 3263, RFC 3264)
- >SDP (RFC2327)
- >RTP/RTCP (RFC 1889/RFC 1890)
- NAPTR for SIP URI lookup (RFC2915)
- >STUN (RFC2030)
- >ARP/RARP (RFC 826/903)
- >SNTP (RFC 2030)
- >DHCP/PPPoE/Static
- >HTTP/HTTPS Server for Web Management
- >TFTP/HTTP/HTTPS for Auto Provisioning
- >Voice message (RFC3842)
- >DHCP Option (RFC3361)
- >DNS/DNS SRV (RFC1706/RFC 2782)
Call Features
- >3-way conferencing
- >Call hold
- >Call forwarding
- >Call transfer
- >Call waiting
- >Caller ID and CWCID
- >Black list
- >Call log
- >Dial plan
- >DTMF mode: In-band, RFC2833, SIP INFO
- >Speed dial
- >Hotline
Wireless
- >802.11 a/b/g/n/ac
- >8 SSID
- >Static WEP (64/128bit)
- >Dynamic WEP (64/128bit)
- >AES (CCMP/TKIP) station MAC
- >WEP
- >WPA-PAK/WPA-PSK (2.0)
- >WPA/WPA2
- >AP Isolation and MBSSID AP Isolation
- >WMM
- >WDS
- >WPS
- >Station list
- >MAC Filter (different from wired MAC Filter)
Applications
- >ALG: SIP, FTP, H323
- >NAT and bridge mode
- >DDNS
- >MAC clone
- >SIP proxy
- >NAT Traversal (STUN)
- >DHCP client and DHCP server
- >IP conflict detection
- >Port forward, DMZ, super DMZ
- >802.1Q VLAN/802.1p，DSCP
- >VPN (PPTP, L2TP, IPSec)
- >SNTP
- >IGMPv2
- >Firewall (SYN flooding, IP address spoofing, DoS attack)
