Description

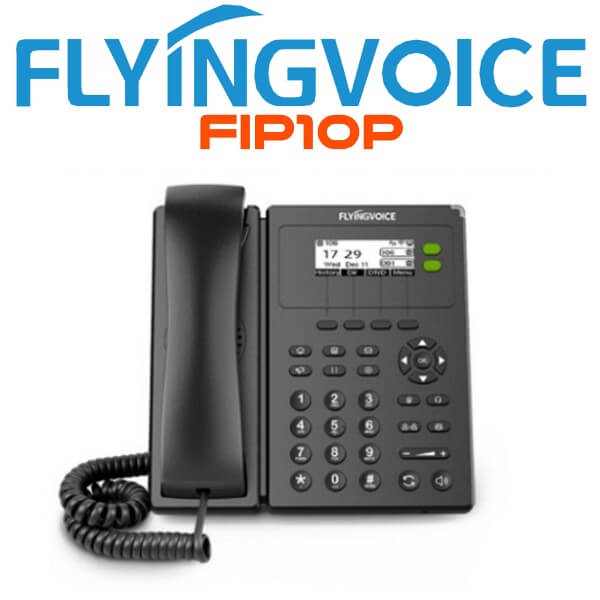

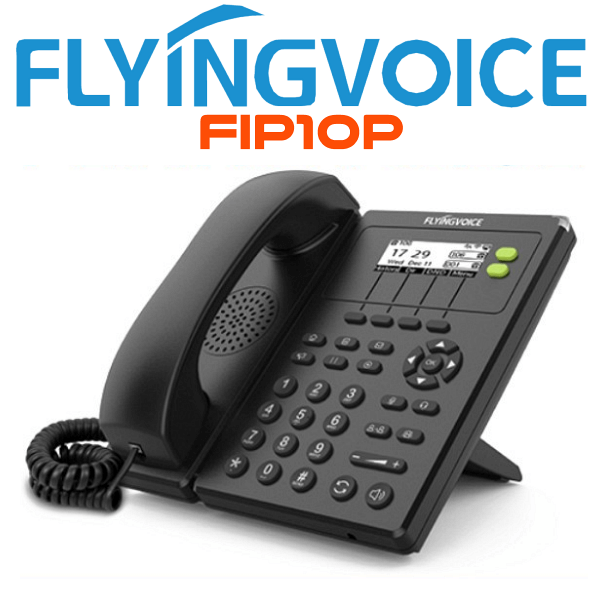

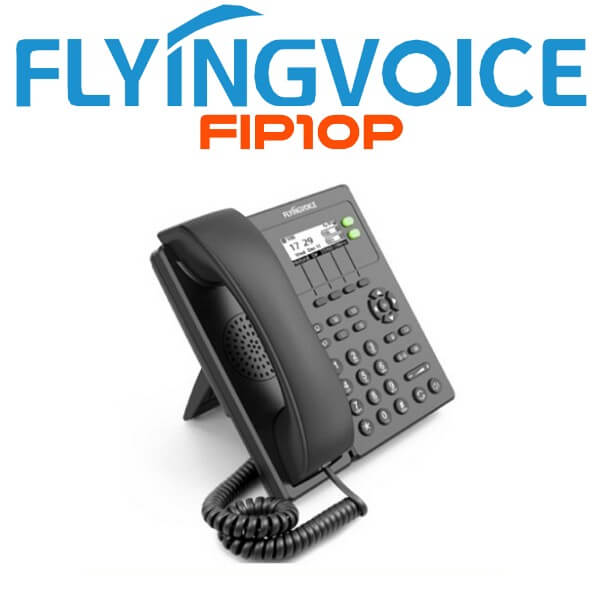

 Flyingvoice FIP10P Wireless SIP phone Ghana

The Flyingvoice FIP10P Wireless SIP phone Ghana has been designed to serve business entities, offering users a friendly dialing experience. It boasts an impressive 128 × 64-pixel graphical backlit B/W LCD for easy access to all the onboarded visual information at a glance. The Flyingvoice FIP10P Ghana incorporates dual 10/100 Mbps network ports, therefore comes with an optional power adapter as it supports Power over Ethernet (PoE). The Flyingvoice FIP10P wireless SIP Phone Ghana supports two VoIP accounts with 3-way local conferencing, as well as maximum compatibility with SIP – based PBX platforms such as Asterisk, Broadsoft and 3CX. The Flyingvoice FIP10P Wireless SIP Phone works with unified firmware, making it easy to deploy, streamline when being used as a series of phones, maintain, as well as update. The multi-angle stand is adjustable to enhance efficiency and freedom of use in different angles.

Key Features

Management Platform

The Flyingvoice FIP10P Wireless SIP Phone Ghana delivers convenience, reliability and seamless integration through the Flyingvoice Device Management Platform via an installed unified firmware. The platform is also used to troubleshoot and solve some of the common complexities that sometimes come during provisioning, call management, and quality control.

Full – Duplex Speakerphone

The FlyingVoice FIP10 Wireless SIP Phone Ghana uses its wideband audio codec embedded in its handset to give users high definition audio that maximizes productivity. The Full Duplex module transmits and receives audio simultaneously, minimizing sound clipping. The 360° surround sound delivered through powerful speakers offer optimum audio pick-up and broadcasting. It is infused with Noise Suppression filters to cut out static background noise, feedback, and distractions.

 Reliable

The Flyingvoice FIP10P Wireless SIP Phone Ghana is equipped with an extremely powerful chip, which gives it upgraded functions on top of amazing computing abilities for enhanced productivity and office experience. The high performance also makes it possible for the Flyingvoice FIP10P wireless SIP Phone to offer a wide range of services that meets varied demands of different businesses.

Easy to Operate

The FlyingVoice FIP10P Wireless SIP Phone is designed to ease call control on the display by using soft keys for daily functions such as transfer, conference and forwarding. You can also access the corporate directory quickly via the soft keys. The user can use the application keys such as the Phone key, Main menu, Contacts and Recents to navigate through the phone and display a list of options including features, network information, administration and many others.

Internet Wireless Connectivity

 The Flyingvoice FIP10P Wireless SIP Phone supports Wi-Fi® Wireless connections from a speed of 2.4GHZ. This enhanced feature offers you unparalleled convenience when it comes to content sharing and audio streaming.

SIP – Based Connection

You can easily connect your FlyingVoice FIP10P Wireless SIP Phone to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Flyingvoice FIP10P Wireless SIP phone is based on SIP v1(RFC2543) and SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms that currently exist in the market.

Conference Guide

 This advanced feature of the Flyingvoice FIP10P Wireless SIP Phone Ghana helps the user to easily set up group calls with a single click of a button. The hi-tech device allows for 3 – way group calls. Its phone book offers you an allowance of a maximum of one thousand (1,000) entries per profile. You can simply create a meeting or join one seamlessly while using your device.

 Highly Secured & Compatibility

Make all your conversations secure by using the Flyingvoice FIP10P Wireless SIP Phone which uses security algorithms such as configuration files which utilize AES, SRTP and TLS call encryption. The Flyingvoice FIP10P Wireless SIP Phone is compatible with SIP – based PBX platforms such as Asterisk, BroadSoft and 3CX.

1 Device, 2 Installation Options

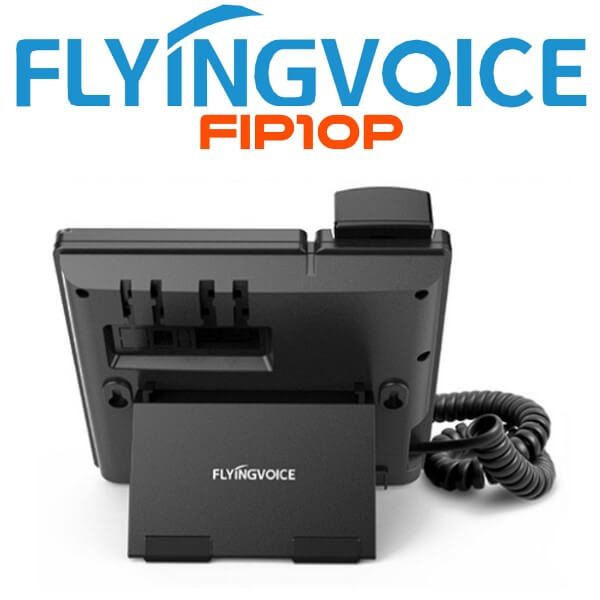

Designed by VoWLAN’s original team, the Flyingvoice FIP10P is delivered in a modern design with a wonderful appearance with ergonomic details that make it easy to use and operate. Whereas it can be mounted on the wall, the adjustable multi-angle stand, giving users the freedom to work with it on any other surface and at different angles.

Reliable

The hi-tech Flyingvoice FIP10P Wireless SIP Phone is configured to support low energy consumption thus lower power costs by using Power Consumption(PSU)which only uses about 1.5 – 3.5W, and Power over Ethernet(PoE) which uses only about 1.9 – 4.5W. This saves you from incurring extra costs while making or receiving important phone calls. The setup further gives you the freedom to select only what you need for a perfect fit based on the already existing office fixtures. It is possible to only purchase the media wall and infuse into the office fittings together with other components already available.

Flexible Deployment
Whether in the office or in the conference room,  say goodbye to the complex deployment,  connect people with the way you like. Flyingvoice FIP10P IP Phone supports dual 10/100 Mbps ports, PoE, and built-in 2.4G Wi-Fi connection.

Call Features:

Call Transfer

This advanced feature of the Flyingvoice FIP10P Wireless SIP Phone allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button on the phone, or software that has been configured for use on the Hospitality Phone.

Call Waiting

You can hear another incoming call when you are already on an active phone call (beep). With the Flyingvoice FIP10P Wireless SIP Phone, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another Phone call.

Call Holding

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Flyingvoice FIP10P Wireless SIP Phone.

Technical Specifications

• Audio Features
  • HD voice: HD handset, HD speaker
  • Codecs: Opus, iLBC, G.722(HD), G.711(A/u), G.729AB,    G.723
  • DTMF: In-band, RFC 2833 and SIP info
  • Full-duplex hands-free speakerphone
  • VAD, CNG, AEC, PLC, AJB, AGC
• Phone Features
  • 2 SIP accounts
  • Call hold, mute, DND, redail, auto-answer
  • One-touch speed dial, hotline, SMS
  • Call forward, call waiting, call transfer (attended/blind)
  • Paging, intercom
  • 3-Way conferencing
  • Direct IP call without SIP proxy
  • Set date time manually or automatically
  • Dial rule> IP conflict detection
  • 4 GHz Wi-Fi
• Directory
  • Phone book (500 records)
  • Blacklist
  • XML/LDAP remote phonebook
  • Phonebook search/import/export
  • Call history: dialed/received/missed (60 records)
  • IP-PBX Features
  • BLF
  • Anonymous call, anonymous call rejection
  • Voice mail, call park, call pickup
  • Message waiting indicator (MWI)
  • Feature keys
  • 2 Line keys
  • 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
  • 4 Soft Keys
  • 5 Navigate Keys
  • Volume /-
• Display and Indicator
  • 3″ 128 x 64px B/W screen with backlight
  • 16 bit depth color
  • LED for call and message waiting indication
  • Dual-color (red/green) illuminated LEDs for line status information
  • Intuitive user interface with icons and soft keys
  • Multilingual user interface
  • Caller ID with name and number
  • Power saving
• Interface
  • 2x RJ45 Ports (Ethernet 10/100 Base-T)
  • Support PoE (Optional)
  • 1 x RJ9 Handset port, 1 x RJ9 Headset port
  • 1 x Power adapter
  • Management
  • Configuration: browser/phone/auto-provision> TFTP/HTTP/HTTPS for Auto Provisioning
  • TR069(TR104/TR106)
  • Reset to factory, reboot
  • Package tracing export, system log
  • DNS/DNS SRV (RFC 1706, RFC 2782)
  • NAPTR for SIP URI lookup (RFC 2915)
  • Cloud device management: FCMS
  • DHCP server and DHCP client
• Others
  • Color: Classic grey
  • Stand with 3 adjustable angles
  • Wall mountable
  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 5V, 1A
  • Power consumption (PSU): 1.5-3.5W
  • Power consumption (PoE): 1.9-4.5W
  • Dimension (W x D x H x T):   189mm x 185mm x 173mm x 34mm
  • Relative humidity: 10%~90% No Condensing
  • Storage temperature: -25~ 85°C
  • Operation temperature: 0~50°C
• Network and Security
  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT Traversal By STUN
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: Static IP and DHCP
  • HTTP/HTTPS webserver
  • Time and date synchronization using SNTP
  • SDP (RFC 2327), UDP/TCP> Mutil-VLAN, DSCP and 802.1p QoS> SRTP
  • TLS
  • HTTPS certificate manager
  • AES encryption for the configuration file
  • Digest authentication
  • VPN: PPTP, l2TP, OpenVPN
  • IPv4 /IPv6, Dual-stack IPv4/IPv6
  • RTP/RTCP (RFC 1889, RFC 1890)
  • ARP/RARP (RFC 826/903)
  • 1Q VLAN/802.1p/DSCP
  • SNMPv2
  • LLDP/CDP/DHCP VLAN
