Flyingvoice FIP11CP Ghana

Description

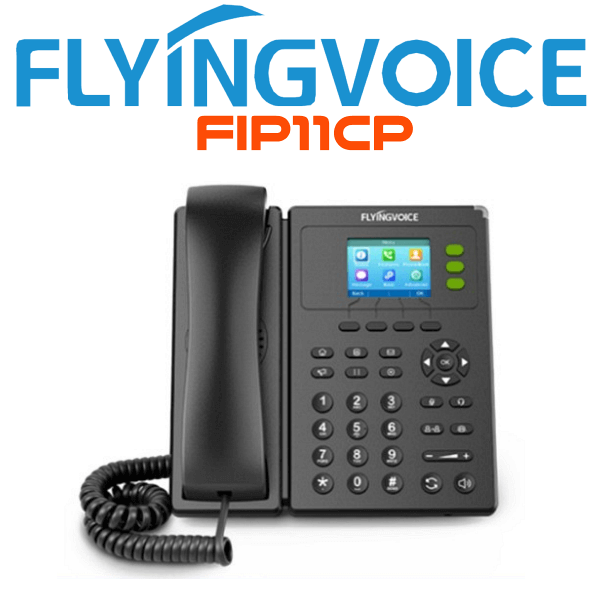

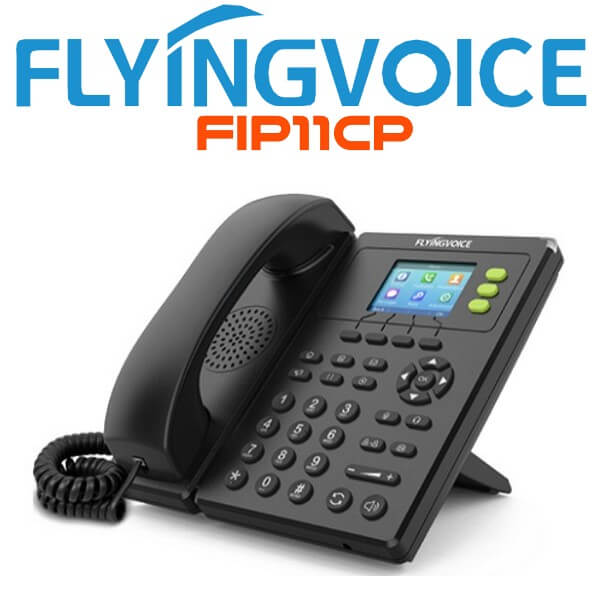

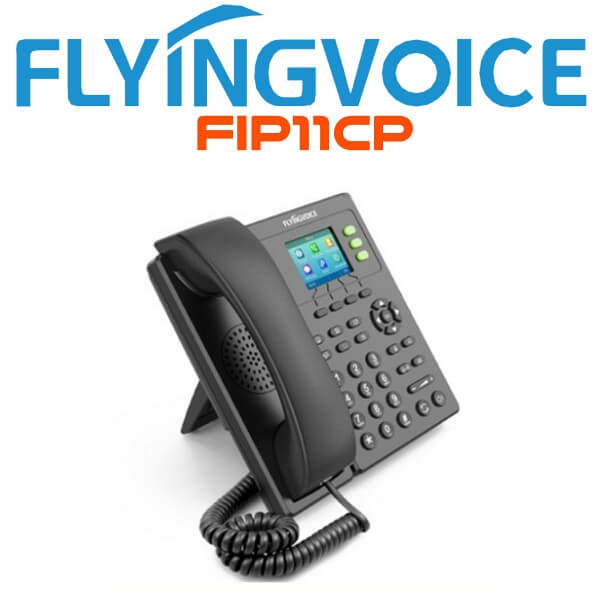

Flyingvoice FIP11CP IP Phone Ghana

The Flyingvoice FIP11CP IP Phone Ghana features new UI design with 2.4-inch LCD color screen display with backlight. It supports 3 SIP accounts, supports Opus and offers a 10/100Mbps dual-port switch with a 2.4GHz Wi-Fi module. Equipped with HD handset and HD speaker, start HD voice collaboration easier. Flyingvoice FIP11CP is designed for easy deployment saving corporates and service providers time and money on installations. The 2.4 inch color display comes with a new UI design, providing you with a rich visual experience. The programmable keys offer extensive productivity-enhancing features such as PoE, HD voice, and easy access to various Wi-Fi options. Featuring Easy and simple to Use UI design, the Flyingvoice FIP11C P VoIP Phone comes with a straightforward design yet ergonomic design that’s easy to use. Prompts guide you through an easy installation process making it easy to begin a voice collaboration of the systems.

Flyingvoice FIP11C P IP Phone Ghana provides the High Security and Compatibility All conversations are well protected. The Wireless VoIP Phone boasts of security algorithms like configuration files utilizing AES, SRTP and TLS call encryption. Flyingvoice-FIP11CP IP Phone has adjustable stand that supports 30, 45 and 60degree. You can adjust the phone up or down for the most comfortable height or angle. Moreover, the Flyingvoice FIP1X series IP phones are widely compatible with most of the SIP-based PBX platforms like Asterisk, Broadsoft, and 3CX. The EHS headset support gives more convenience for the call center users in Flyingvoice FIP11C P IP Phone. Also the Flyingvoice FIP11C P IP Phone has the option to connect the RJ9 headset.2.4″ 320 x 240px color display

Key Features

LDC & New UI Design

Flyingvoice FIP11C P IP Phone has a 2.4-inch 320 x 240 color LCD display with backlight. FIP11CP comes a new UI design, which is elegant and easy to use. Prompts guide you through simple installation process.

HD Voice Quality

The Flyingvoice FIP11C P IP Phone Ghana packs a wideband G.722 and Opus are supported. With the HD voice solutions for handset and hands-free scenarios, you can have clear VoIP calls even in noisy places.

Unique Wi-Fi to LAN and AP Mode

The unique Wi-Fi to LAN bridge mode and Wi-Fi AP mode can reduce the cost of purchasing additional router and AP. Devices such as printers and PC can quickly share resources in the same local area network and are easy to manage.

Ergonomics Design

Flyingvoice-FIP11CP IP Phone Ghana is designed with a concave structure that fits tightly to the fingers. It also supports an easy-grip handset.

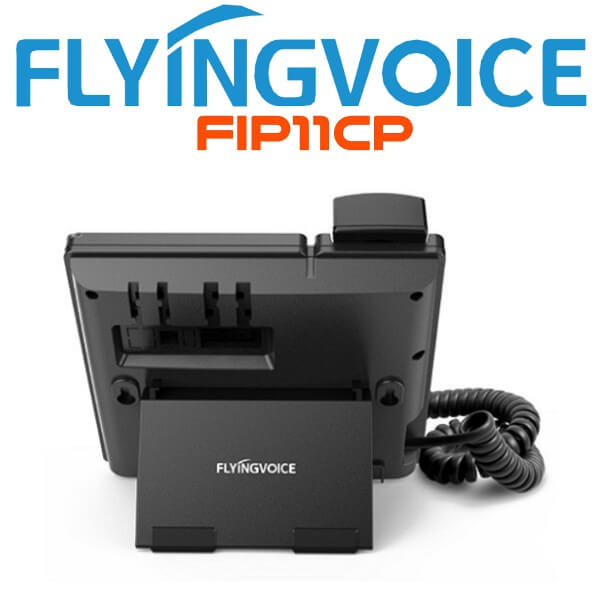

Multi-Angle Stand

Flyingvoice-FIP11CP IP Phone has adjustable stand that supports 30, 45 and 60degree. You can adjust the phone up or down for the most comfortable height or angle.

Easy to Configure & Upgrade

With multiple auto-provisioning modes such as FTP, TFTP, HTTP, option66 and Flyingvoice’s FACS, IP phones are automatically configured and can be managed centrally and remotely.

Flexible Deployment
Whether in your office or conference room, say goodbye to the complex deployments, connect with people the way you like. FIP11C(P) supports dual 10/100 Mbps ports, PoE, and a built-in 2.4G Wi-Fi connection.

Secure & highly Compatible
Flyingvoice-FIP11CP IP Phone use security algorithms such as configuration files utilizing AES, SRTP, and TLS call encryption. The FIP1X series IP phones are widely compatible with SIP-based PBX platforms such as Asterisk, Broadsoft, and 3CX.

Technical Specifications

Audio Features

Audio Features
- HD voice: HD handset, HD speaker
- Wideband Codec: G.722, Opus, AMR-WB(Optional),
- 711WB(Optional)
  - Narrowband Codec: G.711(A/u), iLBC, G.729AB, G.723,
- 726, AMR-NB(Optional)
  - DTMF: In-band, RFC 2833 and SIP info
  - Full-duplex hands-free speakerphone
  - VAD, CNG, AEC, PLC, AJB, AGC
- Phone Features
  - 3 SIP accounts
  - Call hold, mute, DND, redial, auto-answer
  - One-touch speed dial, hotline, SIP message
  - Call forward, call waiting, call transfer (attended/blind)
  - Paging, intercom, 3-Way conferencing, Dial rule
  - Direct IP call without SIP proxy
  - Set date time manually or automatically
  - IP conflict detection
  - 4 GHz Wi-Fi
  - Up to 3 DSS keys
- Directory
  - Phone book (2000 records)
  - Blacklist
  - XML/LDAP remote phonebook
  - Phonebook search/import/export
  - Call history: dialed/received/missed (60 records)
- IP-PBX Features
  - BLF
  - Anonymous call, anonymous call rejection
  - Voice mail, call park, call pickup
  - Message waiting indicator(MWI)
- Feature keys
  - 3 Line keys
  - 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
  - 4 Soft Keys
  - 5 Navigate Keys
  - Volume /-
Display and Indicator
- 4″ 320 x 240px Color screen with backlight
- 16-bit depth color
- LED for call and message waiting for an indication
- Dual-color (red/green) illuminated LEDs for line status information
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name and number
- Power saving
Interface
- 2x RJ45 Ports (Ethernet 10/100 Base-T)
- Support PoE
- 1 x RJ9 Handset port
- 1 x RJ9 Headset port
- 1 x Power adapter
Management
- Configuration: browser/phone/auto-provision
- TFTP/HTTP/HTTPS for Auto Provisioning
- TR069（TR104/TR106）
- Reset to factory, reboot
- Package tracing export, system log
- DNS/DNS SRV (RFC 1706, RFC 2782)
- NAPTR for SIP URI lookup (RFC 2915)
- Cloud device management: FACS
- DHCP server and DHCP client
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT Traversal By STUN
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: Static IP and DHCP
- HTTP/HTTPS webserver
- Time and date synchronization using SNTP
- SDP (RFC 2327) ，UDP/TCP
- Mutil-VLAN, DSCP and 802.1p QoS
- SRTP
- TLS
- HTTPS certificate manager
- AES encryption for the configuration file
- Digest authentication
- VPN：PPTP, L2TP, OpenVPN
- IPv4 /IPv6,Dual-stack IPv4/IPv6
- RTP/RTCP (RFC 1889, RFC 1890)
- ARP/RARP (RFC 826/903)
- 1Q VLAN/802.1p/DSCP
- SNMPv2
- LLDP/CDP/DHCP VLAN
