Flyingvoice FTA5120 Ghana



Flyingvoice FTA5120 Ghana

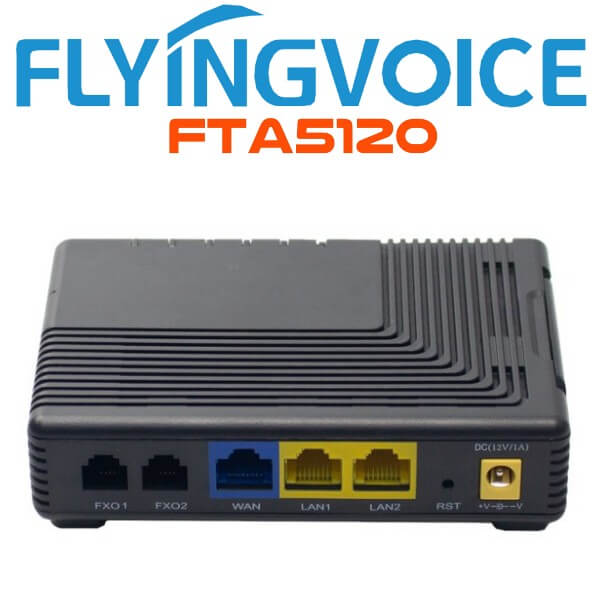

The Flyingvoice FTA5120 VoIP Adapter Ghana has two FXO ports, two LAN ports, and one WAN port. It is a portable and powerful adapter with rich functions, enjoying convenient data connection and HD voice communication.

Category:

Description

Flyingvoice FTA5120 VoIP Adapter Ghana

The Flyingvoice FTA5120 VoIP Adapter Ghana has two FXO ports, two LAN ports, and one WAN port is a portable and powerful adapter with rich functions, enjoying convenient data connection and HD voice communication. A built-in asterisk may also be used as a little PBX, this product cannot only provide users with 2 PSTN calls, and support high-performance NAT routing function, but can also be used as a little switch to supply internal Internet access. More importantly, the Flyingvoice FTA5120 Voice gateway support SAS and call type identification function can identify toll calls, and with simple configuration, the inner line will now not receive charged calls.

 The Flyingvoice FTA5120 VoIP Adapter features a stand-alone device that will make Internet calls without a computer. Establishing a reliable, clear voice calls over the net the Flyingvoice FTA5120 VoIP Adapter is fully compatible with industry standards and may be used with many other SIP devices and software. This VoIP adapter is supports SIP V2 standard, the Flyingvoice FTA5120 VoIP Adapter Ghana is compatible with most network service providers and supports the TR069 CPE Management & Detection Protocol.

Key Features

All-in-one Adapter

With 2 FXO ports, FTA5120 VoIP Adapter can provide users with 2 PSTN calls and support high-performance NAT routing function. It can also be used as a small switch to provide internal Internet access.

Caller Identification

Flyingvoice FTA5120 VoIP Adapter support Ghana SAS and call type identification function can identify toll calls, and with simple configuration, the internal line will no longer receive charged calls.

Stand-alone Device

Flyingvoice FTA5120 is a stand-alone device, which requires no PC to make convenient and flexible Internet calls.

Broad Compatibility

The Flyingvoice FTA5120 VoIP Adapter Ghana is based on SIP V2 and compatible with most service providers, which brings great convenience when deploying VoIP network.

Easy Management

Equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Technical Specifications

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 1A

Operating System

  • Linux 2.6.36

I/O Interfaces

  • 3 RJ-45 for 10/100 Ethernet Ports
  • 2 RJ-11 for FXO Ports
  • Reset key

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164) • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level • SNMPv2
  • TR069

Protocols

  • SIP V2.0 (RFC 3261, 3262, 3263, 3264)
  • Backward compatible with RFC2543
  • Session timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC823/903)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • 1Q VLAN/802.1p and IP DSCP

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detection

FXO Features

  • SAS
  • Busy tone detection
  • Voice interrupt detection
  • One-time dialing
  • Dial two times
  • FAS (Fake billing correction) • Impedance configuration
  • Caller ID (DTMF & FSK) • Flash validation time
  • Block Collect Calls

Datasheet Download
