Flyingvoice G508 Ghana



Flyingvoice G508 Ghana

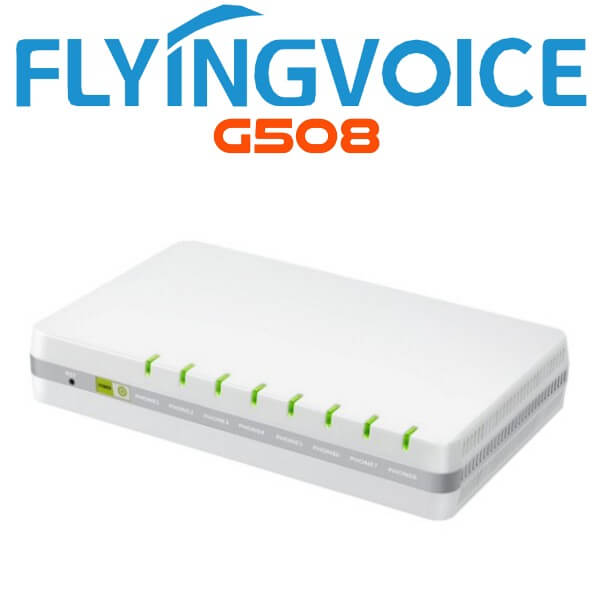

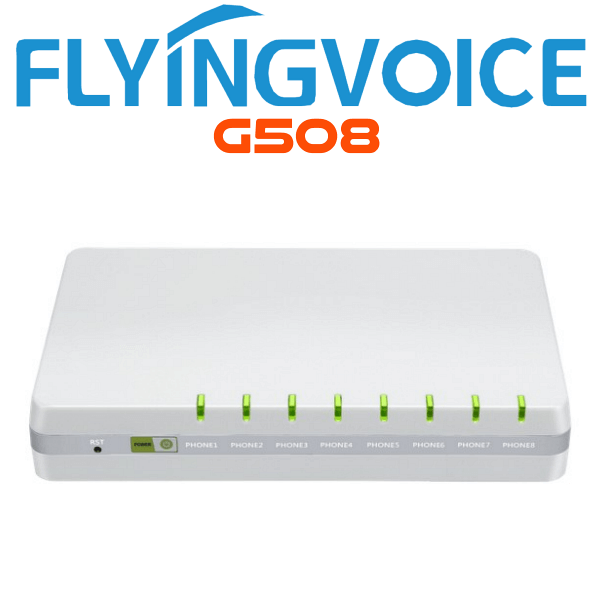

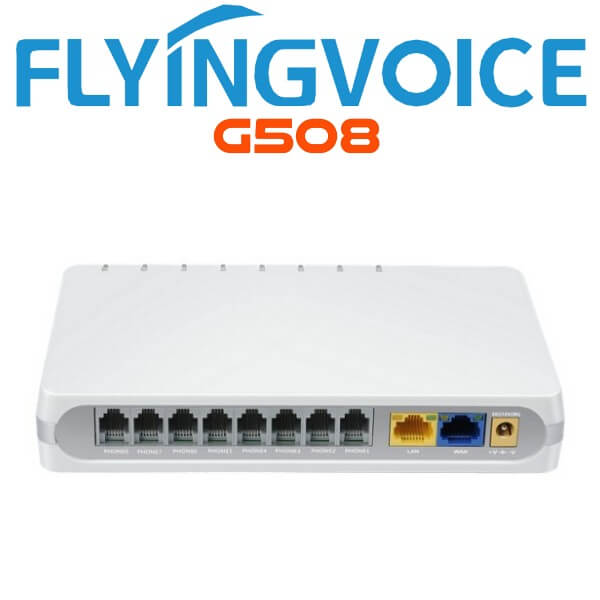

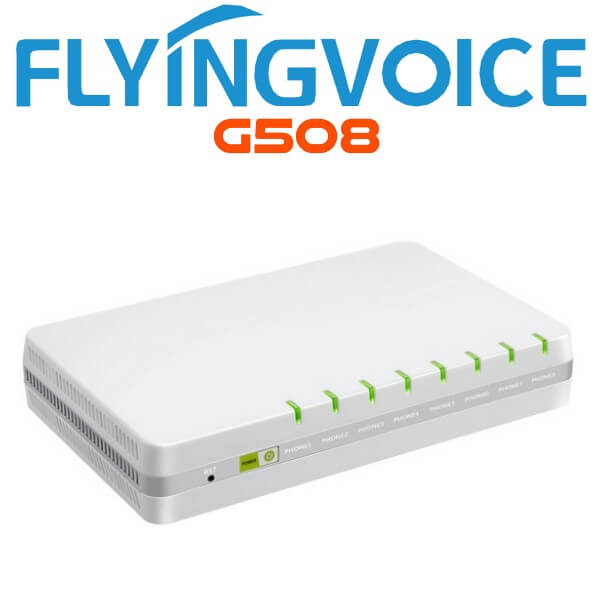

The Flyingvoice G508 VoIP Analog Adapter is a powerful VoIP Analog Telephone Adapter with Router function. It has 8 FXS ports , one LAN port and one WAN port. It  is one of the most popular VoIP ATAs researched and produced by FlyingVoice.

Category:

Description

Flyingvoice G508 VoIP Analog Telephone Adapter Ghana

The Flyingvoice G508 VoIP Analog Adapter Ghana is a powerful powerful VoIP Analog Telephone Adapter with Router function. It has 8 FXS ports , one LAN port and one WAN port, is one of the most popular VoIP ATAs researched and produced by FlyingVoice. This product can not only provide 8 SIP lines for users to make calls, but also it is a wire-speed NAT router, make you enjoy easy network connection. What’s more, G508 support T.38 real time FAX and T.30 FAX with G.711.

The Flyingvoice G508 VoIP Analog Adapter is a stand-alone device, which requires no PC to make Internet calls. This ATA guarantees clear and reliable voice quality on Internet, which is fully compatible with SIP industry standard and able to interoperate with many other SIP devices and software on the market.

 The G508, 8 FXS Analogue Telephone Adapter products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 8 concurrent VoIP calls for more flexibility in the voice communication.

The The Flyingvoice G508 VoIP Analog Adapter features acompact size, excellent voice quality, packed feature functionality and best-in-class price performance point enable consumers to maximize the power of IP voice and data connectivity.
The G508 is based on SIP V2.0 standard and compatibility with most service providers. It features 8 FXS telephone ports, TR069 CPE management & monitoring protocols and a base stand for vertical positioning.

Key Features

  • 8 FXS Ports
  • 38 And T.30 FAX
  • TR069, SNMP
  • 10/100/1000Mbps Ethernet

Technical Specifications

Flash

  • 16MB Flash

RAM

  • 256MB SDRAM

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 3A

Operating System

  • Linux 2.6.36

I/O Interfaces

  • 2 RJ-45 for 10/100/1000Ethernet Ports
  • 8 RJ-11 for FXS Ports

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • 711(A/u), PAMS>4.3
  • 729A/AB, PAMS>4.0
  • 30 FAX with G.711
  • Real time FAX over IP via T.38(Phone 2 port only)
  • Adaptive Jitter Buffer
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMPv2
  • TR069

Protocols

  • SIP V2 (RFC 3261)
  • Backward Compatible with RFC2543
  • Session Timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889 and RFC1890)
  • NAPTR for SIP URI Lookup (RFC2915)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • PPTP/L2TP VPN
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provisioning
  • DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • PPPoE
  • SIP proxy redundancy
  • Dynamic via DNS SRV, A records
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detection

Call Features

  • 3-way Conference
  • Music on hold
  • DTMF mode: In-band, RFC2833 and SIP INFO
  • Call Hold
  • Call Forwarding
  • Call Mute
  • Call Transfer
  • Call Waiting
  • Speed Dial
  • Caller ID and CWCID
  • Hotline
  • Real time fax over IP via T.38
  • 30 FAX with G.711
  • Dial Plan
  • Black List
  • Call Log

Size & Weight

  • 180mm(L)x110mm(W)x30mm(H)
  • 295g (N.W)

Datasheet Download
