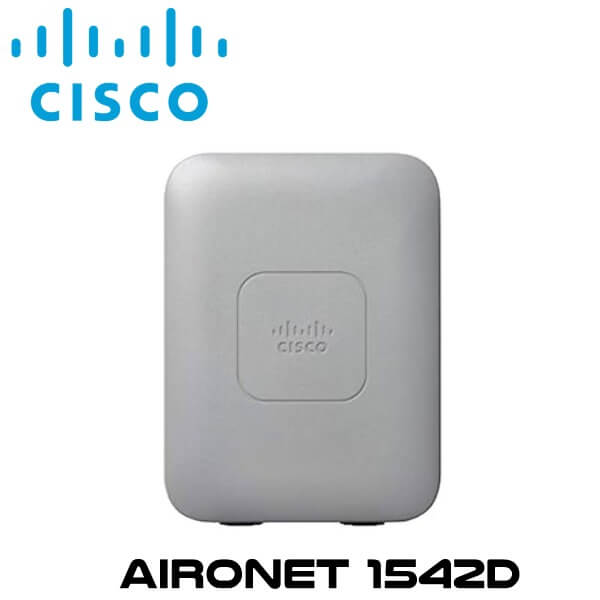

Cisco Aironet1542D Ghana



Cisco Aironet1542D Ghana

The Cisco Aironet1542D Ghana features outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.

Description

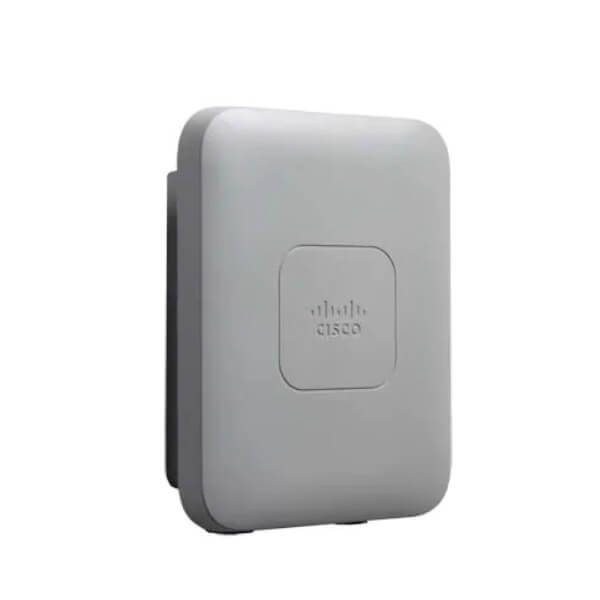

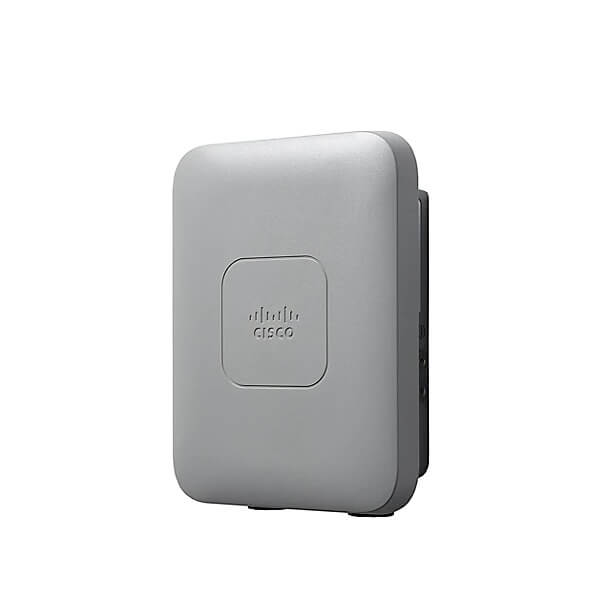

Cisco Aironet1542D Access Point Ghana

The Cisco Aironet1542D Ghana features outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily. The Cisco Aironet1542D Ghana is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, Cisco Aironet1542D Ghana offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. This Cisco WiFi Ghana access point gives network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. Whether deployed as a traditional access point or a wireless mesh access point, the Cisco Aironet1542D Ghana provides the throughput capacity needed for today’s bandwidth-hungry devices.

Features

Low power consumption

Cisco Aironet1542D Ghana achieves full operation on standard 802.3af power (13.9W).

Integrated antenna options

The Cisco Aironet1542D Ghana access point offers two models with different antenna patterns to address a variety of use cases.

Compact size

Featuring a compact design form, Cisco Aironet1542D Ghana enables deployment of the access point where it’s needed. The 1540 Series easily mounts to walls or light poles without disturbing the aesthetics of the area.

802.11ac Wave 2 radio

This Cisco WiFi Ghana provides up to 867-Mbps data rates with 2 x 2 Multiuser Multiple-Input, Multiple-Output (MU-MIMO) with up to two spatial streams.

Multiuser MIMO (MU-MIMO)

Cisco Aironet1542D Ghana allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience. Prior to the 802.11ac Wave 2 standard, access points could transmit data to only one client at a time, typically referred to as single-user MIMO.

Flexible deployment modes

Cisco Aironet1542D Ghana boasts of flexible deployment modes allowing for deployment in a variety of ways, including as traditional access points and in mesh networks. The access points can also be deployed with the Cisco Mobility Express Solution. This deployment is ideal for small to medium-sized networks that that require 50 or fewer access points without a physical controller. All deployment modes are easy to set up and configure.

Specifications

802.11ac Wave 1 and 2 capabilities
  • 1542I/D : 2 x 2 MIMO with two spatial streams
  • Multiuser and single-user MIMO
  • Maximal Ratio Combining (MRC)
  • 802.11ac beamforming (transmit beamforming)
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
  • Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic-Shift-Diversity (CSD) support
802.11n (and related) capabilities
  • 1542I/D : 2 x 2 MIMO with two spatial streams
  • MRC
  • 20- and 40-MHz channels (40 MHz in 5 GHz)
  • PHY data rates up to 300 Mbps
  • Packet aggregation : A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Data rates supported 802.11a : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 and 5 GHz :
MCS Index GI = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135
7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
802.11ac Data Rates (5 GHz)
MCS Index Spatial Streams GI = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps)
0 1 6.5 13.5 29.3 7.2 15 32.5
1 1 13 27 58.5 14.4 30 65
2 1 19.5 40.5 87.8 21.7 45 97.5
3 1 26 54 117 28.9 60 130
4 1 39 81 175.5 43.3 90 195
5 1 52 108 234 57.8 120 260
6 1 58.5 121.5 263.3 65 135 292.5
7 1 65 135 292.5 72.2 150 325
8 1 78 162 351 86.7 180 390
9 1 180 390 200 433.3
0 2 13 27 58.5 14.4 30 65
1 2 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
3 2 52 108 234 57.8 120 260
4 2 78 162 351 86.7 180 390
5 2 104 216 468 115.6 240 520
6 2 117 243 526.5 130 270 585
7 2 130 270 585 144.4 300 650
8 2 156 324 702 173.3 360 780
9 2 360 780 400 866.7
Maximum number of non-overlapping channels A (A regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.280 to 5.320 GHz, 3 channels
  • 5.500 to 5.580 GHz, 5 channels
  • 5.660 to 5.700 GHz, 3 channels
  • 5.745 to 5.825 GHz, 5 channels

B (B regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.180 to 5.240 GHz, 4 channels
  • 5.260 to 5.320 GHz, 4 channels
  • 5.500 to 5.720 GHz, 12 channels
  • 5.745 to 5.825 GHz, 5 channels

C (C regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.825 GHz, 5 channels

D (D regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.745 to 5.865 GHz, 7 channels

E (E regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.500 to 5.580 GHz, 5 channels
  • 5.660 to 5.700 GHz, 3 channels

F (F regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.805 GHz, 4 channels

G (G regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.825 GHz, 5 channels

H (H regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.825 GHz, 5 channels

I (I regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz, 8 channels
K (K regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.280 to 5.320 GHz, 3 channels
  • 5.500 to 5.620 GHz, 7 channels
  • 5.745 to 5.805 GHz, 4 channels

L (L regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.500 to 5.620 GHz, 7 channels
  • 5.745 to 5.865 GHz, 7 channels

M (M regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.500 to 5.580 GHz, 5 channels
  • 5.660 to 5.700 GHz, 3 channels
  • 5.745 to 5.805 GHz, 4 channels

N (N regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.745 to 5.825 GHz, 5 channels

Q (Q regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.500 to 5.700 GHz, 11 channels

R (R regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.260 to 5.320 GHz, 4 channels
  • 5.660 to 5.700 GHz, 3 channels
  • 5.745 to 5.825 GHz, 5 channels

S (S regulatory domain) :

  • 2.412 to 2.472 GHz, 13 channels
  • 5.500 to 5.700 GHz, 11 channels
  • 5.745 to 5.825 GHz, 5 channels

T (T regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.500 to 5.580 GHz, 5 channels
  • 5.660 to 5.700 GHz, 3 channels
  • 5.745 to 5.825 GHz, 5 channels

Z (Z regulatory domain) :

  • 2.412 to 2.462 GHz, 11 channels
  • 5.500 to 5.580 GHz, 5 channels
  • 5.660 to 5.700 GHz, 3 channels
  • 5.745 to 5.825 GHz, 5 channels
Note : This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Number of Non-overlapping Channels 2.4 GHz

  • 802.11b/g :
    • 20 MHz : 3
  • 802.11n :
    • 20 MHz : 3
5 GHz

  • 802.11a :
    • 20 MHz : 27
  • 802.11n :
    • 20 MHz : 27
    • 40 MHz : 13
  • 802.11ac :
    • 20 MHz : 27
    • 40 MHz : 13
    • 80 MHz : 6
Maximum conducted transmit power 1542I

  • 2.4 GHz : 27 dBm with 2 antennas
  • 5 GHz : 25 dBm with 2 antennas
1542D

  • 2.4 GHz : 27 dBm with 2 antennas
  • 5 GHz : 25 dBm with 2 antennas
Interface
  • WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
  • Management console port (RJ-45)
  • Multicolor LED/Reset button
Uplink options Ethernet and wireless mesh
Dimensions (W x L x H) 7.9 x 5.9 x 2.4 in.(20 x 15 x 6.1 cm)
Weight 2.75 lb (1.25 kg)
Environmental
  • Operating temperature
    • -40 to 65°C (-40 to 149°F) ambient air with no solar loading
    • -40 to 55°C (-40 to 131°F) ambient air with solar loading
  • Storage temperature : -50 to 85°C (-40 to 185°F)
  • Humidity : 5 – 95%, non-condensing
  • Wind resistance :
    • Up to 100-MPH sustained winds
    • Up to 165-MPH wind gusts
Environmental Ratings
  • IEC 60529 IP67
  • Icing protection : NEMA 250-2008
  • Corrosion : NEMA 250-2008 (600 hours)
  • Solar radiation : EN 60068-2-5 (1200 W/ m2)
  • Vibration : MIL-STD-810
Antennas
  • 1542I : Integrated dual-band, vertical polarization, omnidirectional antenna radome, 5 dBi (2.4 Ghz) and 5dBi (5.8 GHz) **
  • 1542D : Integrated dual-band, dual polarization, directional antenna radome, vertically polarized 8 dBi (2.4 GHz), 9 dBi (5 GHz)
Powering options
  • 802.3af, 802.3at
  • Cisco power injectors :
    • AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)
    • AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)
    • AIR-PWRINJ5= (indoor, 802.3af)
    • AIR-PWRINJ6= (indoor, 802.3at)
Power draw Max power draw is 13.9W with 100 meters Category 5 cable
Compliance
  • Safety
    • UL60950, 2nd Edition
    • CAN/CSA-C22.2  No.  60950,  2 nd Edition
    • IEC 60950, 2nd Edition
    • EN 60950, 2nd Edition
  • Immunity
    • <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform
    • ANSI/IEEE C62.41
    • EN61000-4-5 Level 4 AC Surge Immunity
    • EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
    • EN61000-4-3 Level 4 EMC Field Immunity
    • EN61000-4-2 Level 4 ESD Immunity
    • EN60950 Overvoltage Category IV
  • Radio approvals
    • FCC Part 15.247, 15.407
    • FCC Bulletin OET-65C
    • RSS-247
    • RSS-102
    • AS/NZS 4268.2003
    • ARIB-STD 66 (Japan)
    • ARIB-STD T71 (Japan)
    • EN 300 328
    • EN 301 893
  • EMI and susceptibility
    • FCC part 15.107, 15.109
    • ICES-003
    • EN 301 489-1, -17
  • Security
    • Wireless bridging/mesh (future availability)
    • X.509 digital certificates
    • MAC address authentication
    • Adv anced Encryption Standard (AES)
  • Wireless Access
    • 802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
    • 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module – (EAP-SIM), and Cisco LEAP
    • VPN pass-through
    • IP Security (IPsec)
    • Layer 2 Tunneling Protocol (L2TP)
    • MAC address filtering
