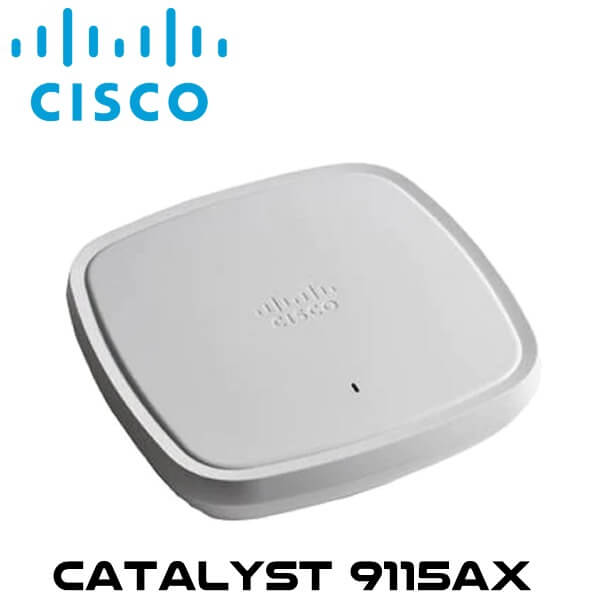

The Cisco Catalyst9115AX Ghana is new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics

Description

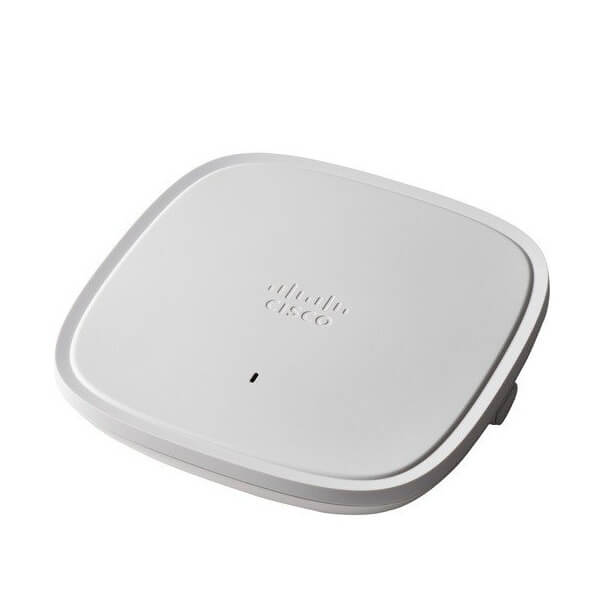

Cisco Catalyst9115AX Access Point Ghana

The Cisco Catalyst9115AX Ghana is new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics. It allows end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi. the next generation of enterprise access points. This Cisco WiFi Ghana is resilient, secure, and intelligent featuring Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today’s digital business.

Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst9115AX Ghana scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The Catalyst 9115 Series is also a leader in performance, security, and analytics. The Catalyst 9115 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides. With Cisco Wifi Ghana, you can secure remote workers or the micro-office. Any Cisco Aironet or Catalyst access point can function as an OfficeExtend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how.

Features

802.11ax (Wi-Fi 6)

The IEEE 802.11ax emerging standard, also known as High-Efficiency-Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It will deliver a better experience in typical environments and more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. 802.11ax is designed to use both the 2.4-Ghz and 5-GHz bands, unlike the 802.11ac standard

Uplink/downlink OFDMA

OFDMA-based scheduling splits the bandwidth into smaller chunks called Resource Units (RUs), which can be allocated to individual clients in both the downlink and uplink directions to reduce overhead and latency

MU‑MIMO technology

Cisco Catalyst9115AX Ghana supports four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.

BSS coloring

Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Access Points (APs) and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.

Target wake time

A new power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the AP. This offers significant energy savings for battery-operated devices, up to 3x to 4x compared to 802.11n and 802.11ac

Cisco Embedded Wireless Controller

This Cisco Wifi Ghana access point is available with a built-in controller. The Cisco Embedded Wireless Controller on Catalyst 9100 Access Points provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point, so there is no added footprint or complexity.

User Defined Network

A feature available in Cisco DNA Center, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network.

Application Hosting on Catalyst 9100 Access

Application Hosting on Cisco Catalyst9115AX Ghana helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks. Utilizing the USB interface, containerized applications and hardware modules can be deployed to reduce cost and complexity. Adding Cisco DNA Center provides workflows and deployment-wide application lifecycle management

Multigigabit Ethernet support

Cisco Catalyst9115AX Ghana integrate Bluetooth Low Energy (BLE) 5.0 radio to enable IoT use cases such as location tracking and wayfinding

Apple features

Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in iOS 10, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications. At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices. This handshake enables the Cisco WLAN to provide an optimal Wi-Fi roaming experience to Apple devices. Additionally, the Cisco WLAN trusts Apple devices and gives priority treatment for business-critical applications specified by the Apple device.

Specifications

Item Specification
Part numbers
  • Cisco Catalyst9115AXI Access Point : Indoor environments, with internal antennas
  • C9115AXI-x : Cisco Catalyst 9115 Series
  • Cisco Catalyst9115AXE Access Point : Indoor, challenging environments, with external antennas
  • C9115AXE-x : Cisco Catalyst 9115 Series
Software
  • Cisco Unified Wireless Network Software Release 8.9 or later
  • Cisco IOS  XE Software Release : 16.11 or later
Supported wireless LAN controllers
  • Cisco Catalyst 9800 Series Wireless Controllers
  • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities
  • 4×4 MIMO with four spatial streams
  • Maximal Ratio Combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
802.11ac
  • 4×4 downlink MU-MIMO with four spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
802.11ax
  • 4×4 downlink MU-MIMO with four spatial streams
  • Uplink/downlink OFDMA
  • TWT
  • BSS coloring
  • MRC
  • 802.11ax beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
Integrated antenna
  • 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth
  • 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)
  • Cisco Catalyst9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces
  • 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
  • Management console port (RJ-45)
  • USB 2.0 (enabled via future software)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)
  • Access point (without mounting brackets) : C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm)
  • C9115E : 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm)
Weight
  • Cisco Catalyst9115AXI : 1.98 lb (0.9 kg)
  • Cisco Catalyst9115AXE : 2.43 lb (1.1 kg)
Input power requirements
  • 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE ®)
  • Cisco power injector, AIR-PWRINJ6 = 802.3af PoE
  • Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2×2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.

Environmental Cisco Catalyst9115AXI

  • Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
  • Non-operating (storage) altitude test : 25˚C, 15,000 ft.
  • Operating temperature : 32° to 122°F (0° to 50°C)
  • Operating humidity : 10% to 90% (noncondensing)
  • Operating altitude test : 40˚C, 9843 ft.

Note : When the ambient operating temperature exceeds 40°C, the access point will shift from 4×4 to 2×2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.

System memory
  • 2048 MB DRAM
  • 1024 MB flash
