Description

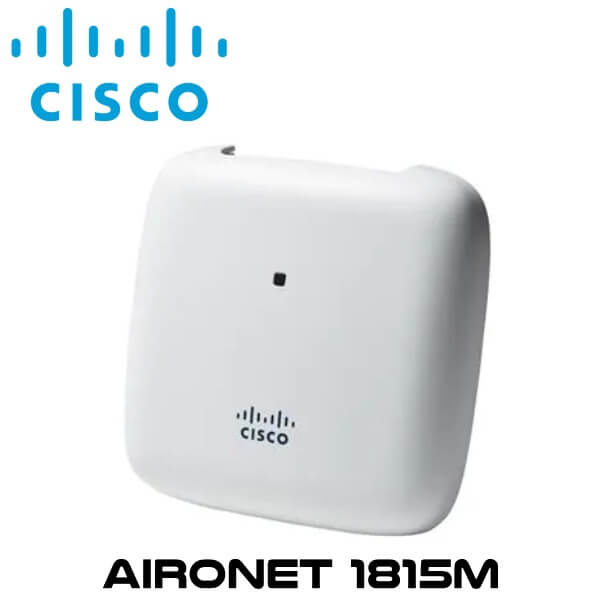

Cisco Aironet1815m Access Point Ghana

The Cisco Aironet1815m Ghana delivers industry-leading wireless performance with support for the latest Wi-Fi standard, the IEEE’s new 802.11ac Wave 2 standard. This Cisco wifi Kenya provides a data rate of up to 867 Mbps on the 5-GHz radio. This rate exceeds the data rates offered by access points that support the 802.11n standard. Also ,Cisco Aironet1815m Ghana enables a total aggregate dual-radio data rate of up to 1 Gbps, allowing for the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users. With more transmit power than the other access points in its family, the Cisco Aironet1815m supports a larger coverage area with fewer access points. Moreover, this Cisco WiFi Ghana extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

With Cisco Aironet1815m Ghana, you can secure remote workers or the micro-office. Any Cisco Aironet or Catalyst access point can function as an Office Extend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how. Cisco User Defined Network, a feature available in Cisco DNA Center, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. The Wi-Fi 6 readiness dashboard is a new dashboard in the Assurance menu of Cisco DNA Center. It will look through the inventory of all devices on the network and verify device, software, and client compatibility with the new Wi-Fi 6 standard. After upgrading, advanced wireless analytics will indicate performance and capacity gains as a result of the Wi-Fi 6 deployment.

Features

Increased wireless performance

The Cisco Aironet1815m Access Point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functions, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

The Cisco Aironet1815m Ghana allows wired access through a single RJ-45 10/100/1000 autodetection port. It supports full operation modes using Power over Ethernet (PoE) 802.3af power.

Mounting

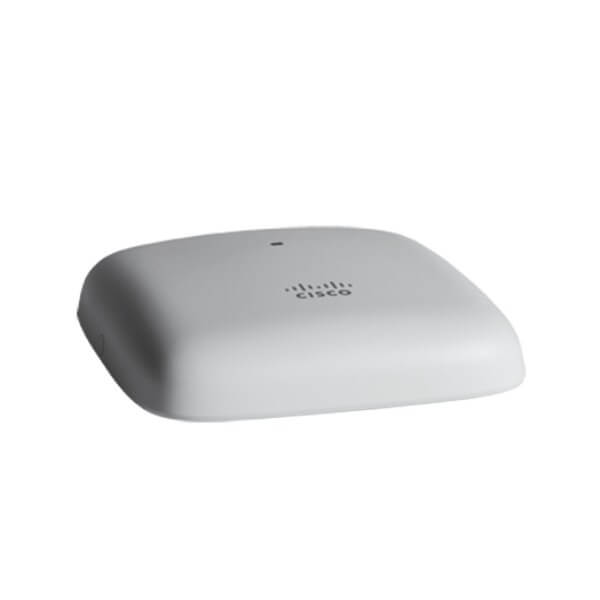

The Cisco Aironet1815m Ghana features sleek access point with a small form factor designed with flexible mounting options in mind, with support for placement on either ceilings or walls.

Higher Tx power

With more than 3 dB (twice the transmit power) than the 1815i, the Cisco Aironet1815m Ghana can penetrate walls and doors, making it ideal for deployment in hotels, dorm rooms, or other dense building locations.

MU-MIMO

Featuring Multiuser (MU) Multiple-Input, Multiple-Output (MU-MIMO) Cisco Aironet1815m Ghana, allows simultaneous data transmission of data to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This transmission was typically referred to as Single-User MIMO (SU-MIMO)

Cisco Mobility Express Solution

This Cisco WiFi Ghana boasts of flexible deployment mode through the Mobility Express software is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows deployment of the 1815m on networks without a physical controller

Integrated Bluetooth 4.1

Cisco Aironet1815m Ghana has integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking

Specifications

Authentication and security	Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) 802.11r 802.11i
Software	Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.3.112.0/83MR1 or later Cisco Mobility Express
Supported WLAN controllers	Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers. Cisco Mobility Express
Maximum clients	Maximum number of associated wireless clients : 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	2×2 single-user/multiuser MIMO with two spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
Ethernet ports	Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)	Integrated Bluetooth 4.1 (including BLE) radio Maximum transmit power: 4 dBm Antenna gain: 2 dBi
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
	802.11n data rates on 2.4 GHz:
	MCS Index			GI = 800 ns		GI = 400 ns
				20-MHz Rate (Mbps)		20-MHz Rate (Mbps)
	0			6.5		7.2
	1			13		14.4
	2			19.5		21.7
	3			26		28.9
	4			39		43.3
	5			52		57.8
	6			58.5		65
	7			65		72.2
	8			13		14.4
	9			26		28.9
	10			39		43.3
	11			52		57.8
	12			78		86.7
	13			104		115.6
	14			117		130
	15			130		144.4
	802.11ac data rates on 5 GHz:
	MCS Index	Spatial Streams		GI = 800 ns		GI = 400 ns
			20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)	20-MHz Rate (Mbps)	40-MHz Rate (Mbps)	80-MHz Rate (Mbps)
	1		6.5	13.5	29.3	7.2	15	32.5
	1		13	27	58.5	14.4	30	65
	1		19.5	40.5	87.8	21.7	45	97.5
	1		26	54	117	28.9	60	130
	1		39	81	175.5	43.3	90	195
	1		52	108	234	57.8	120	260
	1		58.5	121.5	263.3	65	135	292.5
	1		65	135	292.5	72.2	150	325
	1		78	162	351	86.7	180	390
	1		–	180	390	–	200	433.3
	2		13	27	58.5	14.4	30	65
	2		26	54	117	28.9	60	130
	2		39	81	175.5	43.3	90	195
	2		52	108	234	57.8	120	260
	2		78	162	351	86.7	180	390
	2		104	216	468	115.6	240	520
	2		117	243	526.5	130	270	585
	2		130	270	585	144.4	300	650
	2		156	324	702	173.3	360	780
	2		–	360	780	–	400	866.7
Maximum number of non-overlapping channels	A (A regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels B (B regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.720 GHz; 12 channels 5.745 to 5.825 GHz; 5 channels C (C regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels D (D regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels E (E regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.250 to 5.350 GHz; 4 channels 5.725 to 5.825 GHz; 4 channels G (G regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.865 GHz; 7 channels H (H regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels I (I regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels					K (K regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.620 GHz; 7 channels 5.745 to 5.805 GHz; 4 channels N (N regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels R (R regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.660 to 5.700 GHz; 3 channels 5.745 to 5.805 GHz; 4 channels S (S regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels 5.745 to 5.825 GHz; 5 channels T (T regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.280 to 5.320 GHz; 3 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels
Available transmit power settings	2.4 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78 mW)					5 GHz 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW) -1 dBm (0.78mW)
Integrated antennas	2.4 GHz, gain 2 dBi 5 GHz, gain 4 dBi

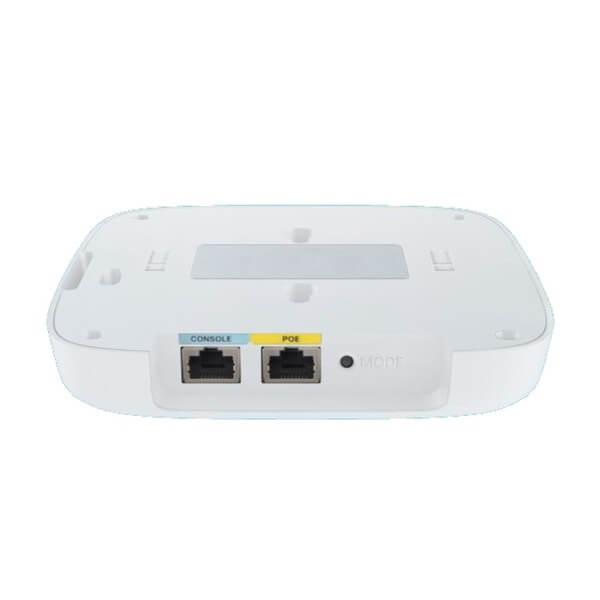

Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket) : 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight	Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental	Operating Temperature : 32° to 104°F (0° to 40°C) Humidity : 10% to 90% (noncondensing) Max. altitude: 9843 ft (3000 m) @ 40°C Nonoperating (storage and transportation) Temperature : -22° to 158°F (-30° to 70°C) Humidity : 10% to 90% (noncondensing) Max. altitude : 15,000 ft (4500 m) @ 25°C
System	1 GB DRAM 256 MB flash 710 MHz quad core
Input power requirements	Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Powering options	802.3af/at Ethernet switch Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	8.3W (maximum, on PoE)
Physical security	Torx security screw, included with the access point
Mounting	Included with the access point: mounting bracket AIR-AP-BRACKET8
Accessories	Mounting bracket : AIR-AP-BRACKET8= (available as spare) Physical security kit : AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
Compliance	Safety UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 60601-1-2 Radio approvals FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac Security 802.11i, WPA3, WPA2, WPA 802.1X AES Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 EAP-Flexible Authentication via Secure Tunneling (FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM) Multimedia Wi-Fi Multimedia (WMM) Other FCC Bulletin OET-65C RSS-102
