Description
Cisco WAP361 Access Point Ghana

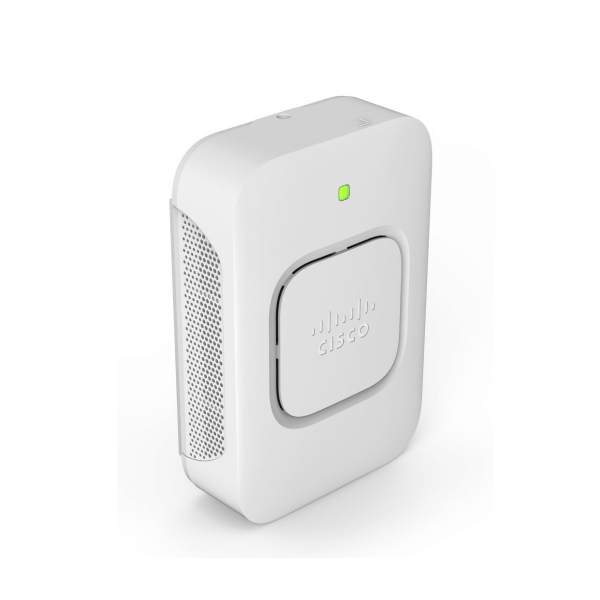

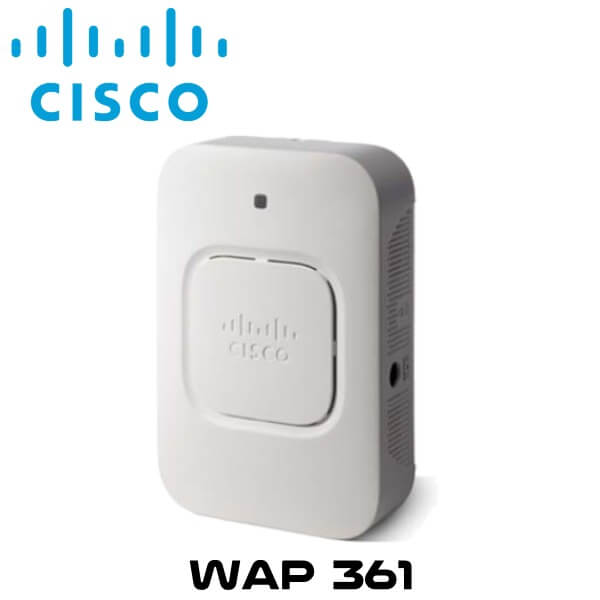

The Cisco WAP361 Ghana Dual Radio Wall Plate Access Point with Power over Ethernet (PoE). The Cisco WAP361 access point, uses a concurrent dual-band radio for improved coverage and user capacity. The 2×2 multiple-input multiple-output (MIMO) technology with two spatial streams allows the access point to run at maximum performance in both 5.0-GHz and 2.4-GHz frequencies. Gigabit Ethernet LAN interfaces with PoE facilitates flexible installation and can reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice over IP (VoIP) and video applications. To provide highly secure guest access to visitors and other users, this Cisco WiFi Ghana supports a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos.
Cisco WAP361 Ghana is easy to set up and use, with an intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options allows the access points to blend well into any small-business environment. To enhance reliability and safeguard sensitive business information, WAP361 access points support both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out. It provide a simple, cost-effective way to extend highly secure, high-performance mobile networking to your employees and guests, so they can stay connected anywhere in the office regardless of what mobile devices they use. This Cisco WiFi Ghana provides a flexible solution allowing users to connect dozens of employees, and can scale to accommodate additional users and changing business needs.
Designed to scale smoothly as your organization grows, the Cisco WAP361 Ghana feature controller-less Single Point Setup, which simplifies the deployment of multiple access points without additional hardware. With a WAP361 access point, you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.
Features
- Concurrent dual-band radio supports up to 867 Mbps on a 5.0-Ghz radio and 300 Mbps on a 2.4-Ghz radio to increase capacity and coverage
- 2×2 MIMO with two spatial streams on both 5.0 GHz and 2.4 GHz allows for maximum performance
- Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points, without requiring additional hardware
- A 5-port Gigabit Ethernet LAN switch supports both PoE powered device (PD) and powered sourcing equipment (PSE) so that IP devices can be powered and the access point can be powered by the backbone switch
- Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, help protect sensitive business information
- Captive portal support facilitates highly secure, customized guest access with multiple rights and roles
- Simple installation and an intuitive web-based configuration and wizard facilitate fast, simple deployment and setup in minutes
- Support for PoE allows for easy installation without expensive additional wiring
- A sleek design with multiple internal antennas and a versatile mounting kit allows for mounts directly to an electrical or data junction box
- Intelligent quality of service (QoS) prioritizes network traffic to help keep critical network applications running at top performance
- Power-saving sleep mode and port control features help to increase energy efficiency
- Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network
- Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades
- A limited lifetime hardware warranty provides peace of mind
Specifications
| Standards | IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af/at, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) | |
| Cabling type | Category 5e or better | |
| Antennas | Internal antennas optimized for installation on a wall or ceiling | |
| Operating system | Linux | |
| Physical Interfaces | ||
| Ports | 5 – 10/100/1000 Ethernet, with support for 802.3af/at PoE, power port for AC adapter (not included) | |
| Power supply | 802.3af/at PoE and external 48V/1.25A DC power adapter (not included) | |
| Buttons | Reset button | |
| Lock slot | Slot for Kensington lock | |
| LEDs | One multi-function LED | |
| Physical Specifications | ||
| Physical dimensions (W x D x H) | 6.5 x 4.33 x 1.8 in. (165 x 110 x 45.75 mm) | |
| Weight | 1.06 lbs or 480 g | |
| Network Capabilities | ||
| VLAN support | Yes | |
| Number of VLANs | 1 management VLAN plus 16 VLANs for SSIDs | |
| 802.1X supplicant | Yes | |
| SSID-to-VLAN mapping | Yes | |
| Auto-channel selection | Yes | |
| Spanning Tree | Yes | |
| Load balancing | Yes | |
| IPv6 | Yes
|
|
| Layer 2 | 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN | |
| Security | ||
| WPA, WPA2 | Yes, including Enterprise authentication | |
| Access control | Yes, management access control list (ACL) plus MAC ACL | |
| Secure management | HTTPS | |
| SSID broadcast | Yes | |
| Rogue access point detection | Yes | |
| Mounting and Physical Security | ||
| Multiple mounting options | Mounting bracket included for easy mounting to junction box | |
| Physical security lock | Kensington lock slot | |
| Quality of Service | ||
| QoS | Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS | |
| Performance | ||
| Wireless throughput | Up to 1.2-Gbps data rate (real-world throughput will vary) | |
| Recommended user support | Up to 128 connective users, 32 active users per radio | |
| Multiple-Access Point Management | ||
| Single Point Setup | Yes | |
| Number of access points per cluster | 8 | |
| Active clients per cluster | 240 | |
| Configuration | ||
| Web user interface | Built-in web user interface for easy, browser-based configuration (HTTP, HTTPS) | |
| Management | ||
| Management protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour | |
| Remote management | Yes | |
| Event logging | Local, remote syslog, email alerts | |
| Network diagnostics | Logging and packet capture | |
| Web firmware upgrade | Firmware upgradable through web browser, imported or exported configuration file | |
| Dynamic Host Configuration Protocol (DHCP) | DHCP client | |
| IPv6 host | Yes | |
| HTTP redirect | Yes | |
| Wireless | ||
| Frequency | Dual concurrent radios (2.4 and 5 GHz) | |
| Radio and modulation type | Dual radio, orthogonal frequency division multiplexing (OFDM)
|
|
| Non-overlapping channels | 2.4 GHz
|
5 GHz
|
| Wireless isolation | Wireless isolation between clients | |
| External antennas | None | |
| Internal antennas | Internal fixed PiFA antenna | |
| Antenna gain in dBi | Maximum antenna gain of 4.35 dBi on 2.4 GHz
Maximum antenna gain of 3.96 dBi on 5 GHz |
|
| Wireless distribution system (WDS) | Yes | |
| Fast roaming | Yes | |
| Multiple SSIDs | 16 | |
| Wireless VLAN map | Yes | |
| WLAN security | Yes | |
| Wi-Fi Multimedia (WMM) | Yes, with unscheduled automatic power saving | |
| Operating Modes | ||
| Access point | Access point mode, WDS Bridging, Workgroup Bridge mode | |
| Environmental | ||
| Power options |
|
|
| Compliance | Safety :
Radio approvals :
|
|
| Operating temperature | 0° to 40°C (32° to 104°F) | |
| Storage temperature | -20° to 70°C (-4° to 158°F) | |
| Operating humidity | 10% to 85% noncondensing | |
| Storage humidity | 5% to 90% noncondensing | |
| System memory |
|
|
| Package Contents | ||
|
||
