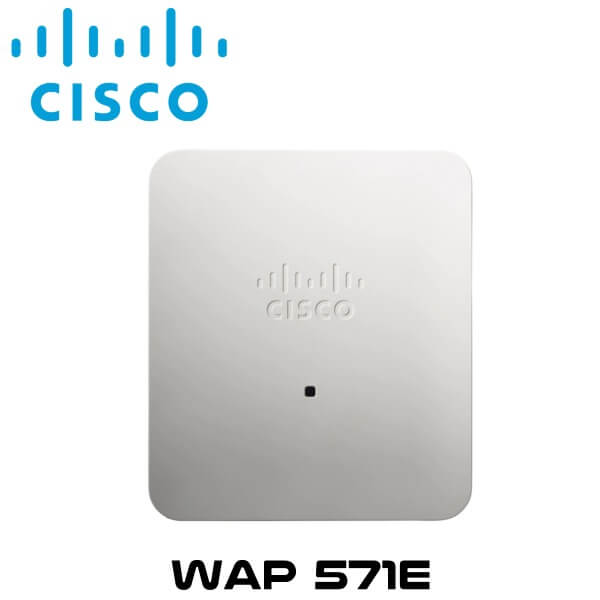

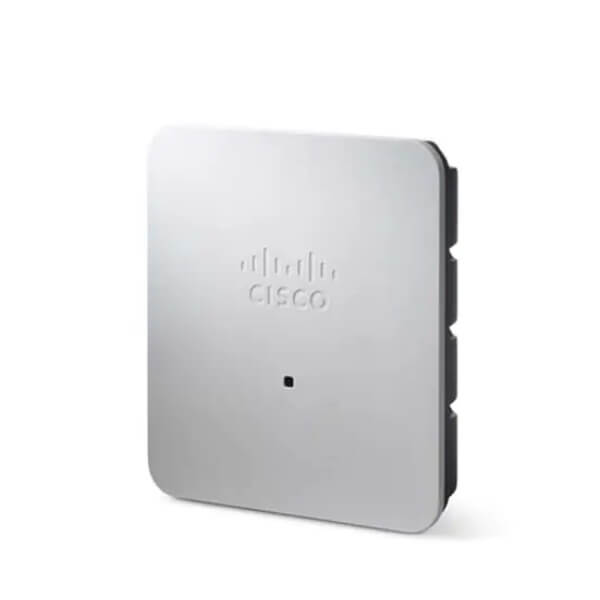

Cisco WAP571E Ghana



Cisco WAP571E Ghana

The Cisco WAP571E Ghana is a Wireless-AC/N Dual Radio Outdoor Wireless Access Point is purpose-built to meet the demands of your outdoor spaces. The 3×3 multiple-input multiple-output (MIMO) technology with three spatial streams

Description

Cisco WAP571E Access Point Ghana

The Cisco WAP571E Ghana is a Wireless-AC/N Dual Radio Outdoor Wireless Access Point is purpose-built to meet the demands of your outdoor spaces. The 3×3 multiple-input multiple-output (MIMO) technology with three spatial streams allows the access point to run at maximum performance in both the 5.0-GHz and 2.4-GHz frequency. Gigabit Ethernet LAN interfaces with Power over Ethernet (PoE) facilitates flexible installation and can reduce cabling and wiring costs. Intelligent quality-of-service (QoS) features let you prioritize bandwidth-sensitive traffic for voice over IP (VoIP) and video applications. The Cisco WAP571E Ghana access point offers a rugged housing built to handle anything from rain, snow, and even high or low temperatures. This Cisco WiFi Ghana provides a simple, cost-effective way to extend highly secure, high-performance mobile networking to outdoor spaces. It uses concurrent, dual-band radio for improved coverage and user capacity.

To provide highly secure guest access to visitors and other users, the Cisco WAP571E Ghana supports a captive portal with multiple authentication options and the ability to configure rights, roles, and bandwidth. A customized guest login page lets you present a welcome message and access details, and reinforces your brand with company logos. The WAP571E WiFI Outdoor Wireless Access Points are easy to set up and use, with an intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options allows the access points to smoothly blend into any small-business environment.

To enhance reliability and safeguard sensitive business information, Cisco WAP571E Ghana support both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1X RADIUS authentication helps keep unauthorized users out. This Cisco WiFi Ghana is designed to scale smoothly as your organization grows, the access points feature controller-less Single Point Setup, which simplifies the deployment of multiple access points without additional hardware. With the WAP571E Wireless-AC/N Dual Radio Outdoor Wireless Access Point, you can extend business-class wireless networking to employees and guests anywhere in the business properties, with the flexibility to meet new business needs for years to come.

Features

  • Concurrent dual-band radio supports up to 1.3 Gbps on a 5.0-Ghz radio and 600 Mbps on a 2.4-Ghz radio to make the most of capacity and coverage
  • 3×3 MIMO with three spatial streams on both 5.0 GHz and 2.4GHz allows maximum performance
  • Outdoor-rated IP66 enclosure designed for challenging outdoor environments, such as rain and extreme temperatures, as well surge protection support
  • Single Point Setup, a controller-less technology, simplifies the deployment and management of multiple access points, without requiring additional hardware
  • A two-Gigabit Ethernet LAN interface can enable a high-speed uplink to the wired network and link aggregation support to increase the overall bandwith between the two ports
  • Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection help protect sensitive business information
  • Captive portal support facilitates highly secure, customized guest access with multiple rights and roles
  • A simple installation and intuitive web-based configuration and wizard facilitate fast, simple deployment and setup in minutes
  • Support for Power over Ethernet (PoE) allows for easy installation without expensive additional wiring
  • Sleek design with multiple internal antennas and a versatile mounting kit allows for installation on a pole or a wall
  • Intelligent quality of service (QoS) prioritizes network traffic to help keep critical network applications running at top performance
  • Power-saving sleep mode and port control features help increase energy efficiency
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network
  • Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades

Specifications

Standards IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Ports 2 LAN Gigabit Ethernet autosensing
Cabling type Category 5e or better
Antennas Internal antennas optimized for installation on a wall
LED indicators One LED
Operating system Linux
Physical Interfaces
Ports 2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports
Buttons Reset button
LEDs One multi-function LED
Physical Specifications
Physical dimensions (W x D x H) 9.05 x 7.87 x 1.96 in. (230 x 200 x 50 mm)
Weight 2.97 lb or 1350g
Network Capabilities
VLAN support Yes
Number of VLANs 1 management VLAN plus 32 VLANs for SSIDs
802.1X supplicant Yes
SSID-to-VLAN mapping Yes
Auto-channel selection Yes
Spanning tree Yes
Load balancing Yes
IPv6 Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP)
Layer 2 802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN
Security
WPA, WPA2 Yes, including Enterprise authentication
Access control Yes, management access control list (ACL) plus MAC ACL
Secure management HTTPS
SSID broadcast Yes
Rogue access point detection Yes
Mounting and Physical Security
Multiple mounting options Mounting bracket included for easy wall or pole mounting
Quality of Service
QoS Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), client QoS
Performance
Wireless throughput Up to 1.9Gbps data rate (real-world throughput will vary)
Recommended user support Up to 200 connective users, 50 active users per radio
Multiple-Access Point Management
Single Point Setup Yes
Number of access points per cluster 16
Active clients per cluster 960
Configuration
Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management Yes
Event logging Local, remote syslog, email alerts
Network diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported and exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 host Yes
HTTP redirect Yes
Wireless
Frequency Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type Dual radio, orthogonal frequency division multiplexing (OFDM)

IEEE 802.11a/n : OFDM (BPSK/QPSK/16QAM/64QAM/256AM)

IEEE 802.11ac : OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

WLAN 802.11n/ac

  • 3×3 MIMO with 3 spatial streams at 5 GHz and 2.4 GHz
  • 21 for 20-MHz bandwidth; 9 for 40-MHz bandwidth; 4 for 80-MHz bandwidth
  • 1 for 20-MHz bandwidth; 7 for 40-MHz bandwidth

802.11 dynamic frequency selection (DFS)

Data rates supported
  • IEEE 802.11b : DSSS (1/2/5.5/11)
  • IEEE 802.11g : OFDM (6/9/12/18/24/36/48/54)
  • IEEE 802.11n : see the below table
  • IEEE 802.11b : 12.94 MHz
  • IEEE 802.11g : 24.49 MHz
  • EEE 802.11n MCS0 (HT20) : 27.44 MHz
  • IEEE 802.11n MCS0 (HT40) : 36.18 MHz
  • IEEE 802.11b : 29.76 dBm
  • IEEE 802.11g : 29.24 dBm
  • IEEE 802.11n MCS0 (HT20) : 29.25 dBm
  • IEEE 802.11n MCS0 (HT40) : 23.81 dBm
Frequency band and operating channels Frequency Band Channel No. Frequency Channel No. Frequency
2400~2483.5MHz 1 2412 MHz 7 2442 MHz
2 2417 MHz 8 2447 MHz
3 2422 MHz 9 2452 MHz
4 2427 MHz 10 2457 MHz
5 2432 MHz 11 2462 MHz
6 2437 MHz
  Frequency Band Channel No. Frequency Channel No.
5150~5250 MHz Band 1 36 5180 MHz 44
38 5190 MHz 46
40 5200 MHz 48
42 5210 MHz
52 5260 MHz 60
54 5270 MHz 62
5250~5350 MHz Band 2 56 5280 MHz 64
58 5290 MHz
100 5500 MHz 112
102 5510 MHz 116
104 5520 MHz 132
5470~5725 MHz Band 3 106 5530 MHz 134
108 5540 MHz 136
110 5550 MHz 140
149 5745 MHz 157
151 5755 MHz 159
5725~5850 MHz Band 4 153 5765 MHz 161
155 5775 MHz 165
Transmitted output power 2.4 GHz

  • 802.11b : 20.0 +/- 1.5 dBm at CH6, all rates
  • 802.11g : 20.0 +/- 1.5 dBm at CH6, 6 Mbps
  • 802.11g : 17.0 +/- 1.5 dBm at CH6, 54 Mbps
  • 802.11n(HT20) : 20.0 +/- 1.5 dBm at CH6, MCS0
  • 802.11n(HT20) : 17.0 +/- 1.5 dBm at CH6, MCS7
  • 802.11n(HT40) : 16.0 +/- 1.5 dBm at CH6, MCS7

5 GHz UNII-1 (5150~5250 MHz)

  • 802.11a : 22.0 +/- 1.5 dBm at 6 Mbps
  • 802.11a : 22.0 +/- 1.5 dBm at 54 Mbps
  • 802.11ac(HT20) : 22.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT20) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT40) : 21.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT40) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT80) : 20.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT80) : 14.0 +/- 1.5 dBm at MCS9

5 GHz UNII-2 (5250 – 5350 MHz)/UNII-2 Extended (5470 – 5725 MHz)

  • 802.11a : 18.0 +/- 1.5 dBm at 6 Mbps
  • 802.11a : 18.0 +/- 1.5 dBm at 54 Mbps
  • 802.11ac(HT20) : 18.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT20) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT40) : 18.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT40) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT80) : 14.0 +/- 1.5 dBm at MCS9

5 GHz UNII-3 (5725~5850 MHz)

  • 802.11a : 22.0 +/- 1.5 dBm at 6 Mbps
  • 802.11a : 22.0 +/- 1.5 dBm at 54 Mbps
  • 802.11ac(HT20) : 22.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT20) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT40) : 21.0 +/- 1.5dBm @ MCS0
  • 802.11ac(HT40) : 14.0 +/- 1.5 dBm at MCS9
  • 802.11ac(HT80) : 20.0 +/- 1.5 dBm at MCS0
  • 802.11ac(HT80) : 14.0 +/- 1.5 dBm at MCS9
Wireless isolation Wireless isolation between clients
External antennas None
Internal antennas 6 Internal fixed PIFA antenna
Antenna gain in dBi 3.55 dBi for 5 GHz, 2.98 dBi for 2.4 GHz
Receiver sensitivity 2.4 GHz

  • 802.11b : -86 dBm at 11Mbps
  • 802.11g : -74 dBm at 54 Mbps
  • 802.11n(HT20) : -71 dBm at MCS7
  • 802.11n(HT40) : -68 dBm at MCS7

5 GHz

  • 802.11a : -90 dBm at 6 Mbps
  • 802.11a : -75 dBm at 54 Mbps
  • 802.11ac(HT20) : -63 dBm at MCS9
  • 802.11ac(HT40) : -60 dBm at MCS9
  • 802.11ac(HT80) : -58 dBm at MCS9
Wireless distribution system (WDS) Yes
Fast roaming Yes
Multiple SSIDs 16 per Radio
Wireless VLAN map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
Operating Modes
Access point Access point mode, Wireless Domain Services (WDS) bridging, Workgroup Bridge mode
Environmental
Power options
  • IEEE 802.3at/af Ethernet switch
  • Cisco power injector : SB-PWR-INJ2-xx
  • Peak power : 18 Watts
Operating temperature -40° to 55°C (-40° to 131°F) with solar loading or -40 to 65°C (-40° to 149°F) without solar loading
Storage temperature -50° to 70°C (-58 to 158°F)
Operating humidity 5% to 95% noncondensing
Storage humidity 5% to 90% noncondensing
System memory 256 MB RAM

128 MB flash

Package Contents
  • Cisco WAP571E Wireless-AC/N Dual Radio Outdoor Wireless Access Point
  • Wall and pole mounting kit
  • Ethernet network cable



Datasheet Download
