Description

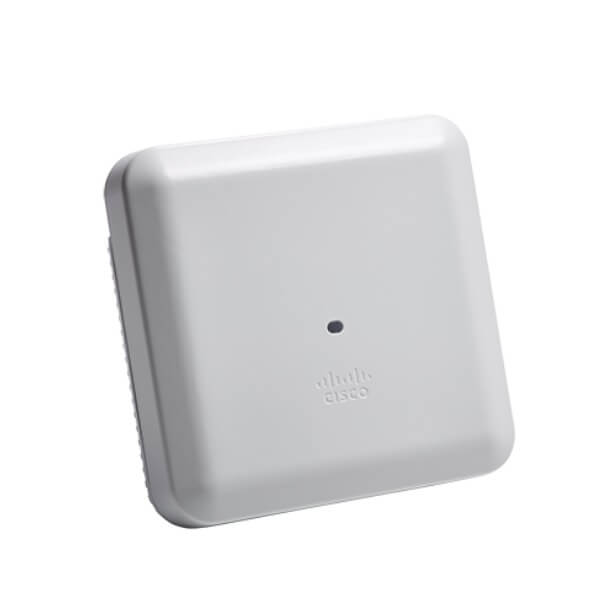

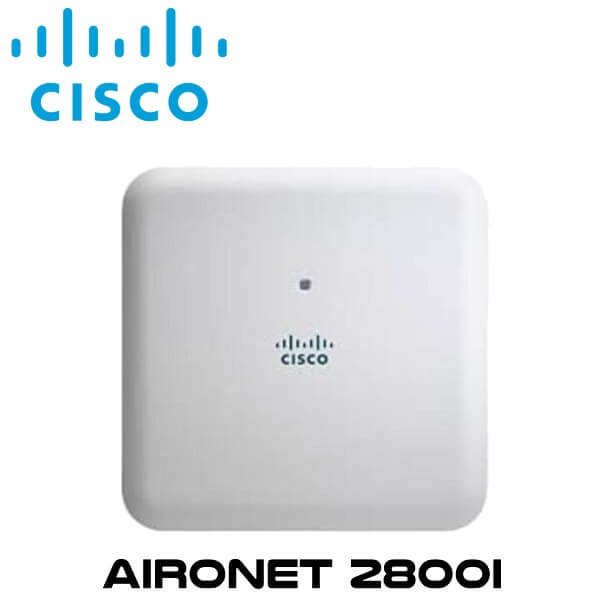

Cisco Aironet2800i Access Point Ghana

The Cisco Aironet2800i Ghana access point go beyond getting ready for the new standard, providing the ultimate in flexibility and versatility. Ideal for large enterprise organizations that rely on Wi-Fi to engage with customers, Cisco Aironet2800i Ghana is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential. The Cisco Aironet2800i Ghana is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.

With best-in-class RF architecture, this Cisco Aironet2800i Ghana provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. HDX includes features such as custom hardware in 802.11ac Wave 2 radios, Cisco CleanAir, ClientLink 4.0, cross-access point noise reduction, and an optimized client roaming experience. Flexible deployment mode through the Cisco Mobility Express Solution is ideal for medium-sized deployments and can support up to 100 access points. Easy setup allows the Cisco Aironet2800i Access Points to be deployed on networks without a physical controller.

Features

High-density experience

Building on the Cisco Aironet heritage of RF excellence, the Cisco Aironet2800i Ghana run on a purpose-built, innovative chipset with a best-in-class RF architecture. This chipset provides a high-density experience for enterprise networks designed for mission-critical, high-performance applications.

802.11ac Wave 2 support

Cisco Aironet2800i Ghana provides a theoretical connection rate of up to 2.6 Gbps per radio which roughly double the rates offered by today’s high-end 802.11ac access points.

High Density Experience (HDX)

Best-in-class RF architecture, this Cisco WiFi Ghana provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. HDX includes features such as custom hardware in 802.11ac Wave 2 radios, Cisco CleanAir, ClientLink 4.0, cross-access point noise reduction, and an optimized client roaming experience.

Multiuser Multiple-Input Multiple-Output (MU‑MIMO) technology

Supporting three spatial streams, MU-MIMO enables Cisco Aironet2800i Ghana to split spatial streams between client devices, to maximize throughput.

Flexible Radio Assignment

Allows the access points to intelligently determine the operating mode of serving radios based on the RF environment. The access points can operate in the following modes :

4-GHz and 5-GHz mode : One radio will serve clients in 2.4-GHz mode, while the other serves clients in 5-GHz mode
Dual 5-GHz mode : Both radios inside the access point operate on the 5-GHz band, maximizing the benefits of 802.11ac Wave 2 and increasing client device capacity.
Security Monitoring and 5-GHz mode, one radio will serve 5-GHz clients, while the other is scanning the full spectrum for wIPS attackers, CleanAir interferers, and rogue devices.

Dual 5-GHz radio support

Cisco Aironet2800i Ghana enables both radios to operate in 5-GHz client serving mode, allowing an industry-leading 5.2 Gbps (2 x 2.6 Gbps) over-the-air speeds while increasing client capacity.

Smart antenna connector

An intelligent second physical antenna connector is included on Cisco Aironet2800i models with an external antenna. This connector provides advanced network design flexibility for high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, and arenas/stadiums, allowing two sets of antennas to be connected and active on a single access point.

160-MHz channel support

This Wifi Ghana supports channels up to 160 MHz wide, Dynamic Bandwidth Selection allows the access point to dynamically switch between 20-, 40-, 80-, and 160-MHz channels, depending on the RF channel conditions, providing the industry’s best-performing wireless network.

Optimized access point roaming

Helps ensure that client devices associate with the access point in their coverage range that offers the fastest data rate available.

Zero-impact Application Visibility and Control

Cisco Aironet2800i Ghana uses dedicated hardware acceleration to improve the performance of line-speed applications such as Application Visibility and Control.

Auto Link Aggregation (LAG) support

802.3ad (LACP) compliant, allowing both Gigabit Ethernet interfaces to automatically LAG, increasing overall throughput to the access point.

ClientLink 4.0

Cisco ClientLink 4.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11a/b/g/n/ac while improving battery life on mobile devices such as smartphones and tablets.

CleanAir 160 MHz

With Cisco CleanAir technology, enhanced with 160-MHz channel support, Cisco Aironet2800i Ghana provides proactive, high-speed spectrum intelligence across 20-, 40-, 80-, or 160-MHz-wide channels to combat performance problems due to wireless interference

Cisco Mobility Express

Flexible deployment mode through the Cisco Mobility Express Solution is ideal for medium-sized deployments and can support up to 100 access points. Easy setup allows the Cisco Aironet2800i Access Points to be deployed on networks without a physical controller.

Specifications

Software		Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS XE Software Release 16.3
Supported wireless LAN controllers		Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches Cisco Mobility Express
802.11n version 2.0 (and related) capabilities		4×4 MIMO with three spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities		4×4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities		4×4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 4680 Mbps Packet aggregation : A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna		Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)		2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector		Available on the 2802e Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio
Interfaces		2802I/E 2x 100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators		Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)		Access point (without mounting brackets) : 2802I : 8.66” x 8.68” x 2.17”, 2802E : 8.66” x 8.77” x 2.50”
Weight		Cisco Aironet 2802i 3.53 lb (1.6 kg) Cisco Aironet 2802e 4.6 lb (2.09 kg)
Input power requirements		802.3at PoE+, Cisco Universal PoE (Cisco UPOE ) 802.3at power injector (AIR-PWRINJ6=)
Power draw		22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port 26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled
Environmental		Cisco Aironet 2802i Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C) Non-operating (storage) altitude test : 25˚C, 15,000 ft. Operating temperature : 32° to 104°F (0° to 40°C) Operating humidity : 10% to 90% (noncondensing) Operating altitude test : 40˚C, 9843 ft. Cisco Aironet 2802e Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C) Non-operating (storage) altitude test : 25˚C, 15,000 ft. Operating temperature : -4° to 122°F (-20° to 50°C) Operating humidity : 10% to 90% (noncondensing) Operating altitude test : 40˚C, 9843 ft.
System memory		1024 MB DRAM 256 MB flash
Warranty		Limited lifetime hardware warranty
Available transmit power settings		2.4 GHz 23 dBm (200 mW) 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW)			5 GHz 23 dBm (200 mW) 20 dBm (100 mW) 17 dBm (50 mW) 14 dBm (25 mW) 11 dBm (12.5 mW) 8 dBm (6.25 mW) 5 dBm (3.13 mW) 2 dBm (1.56 mW)
Frequency band and 20-MHz operating channels		A (A regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels B (B regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.720 GHz; 12 channels 5.745 to 5.825 GHz; 5 channels C (C regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels D (D regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels E (E regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.250 to 5.350 GHz; 4 channels 5.725 to 5.825 GHz; 4 channels G (G regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels H (H regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.150 to 5.350 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels			I (I regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels K (K regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.620 GHz; 7 channels 5.745 to 5.805 GHz; 4 channels N (N regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels R (R regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.660 to 5,805 GHz; 7 channels S (S regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz;, 11 channels 5.745 to 5.825 GHz; 5 channels T (T regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.280 to 5.320 GHz; 3 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels
Maximum number of nonoverlapping channels		2.4 GHz 802.11b/g : 20 MHz : 3 802.11n : 20 MHz : 3			5 GHz 802.11a : 20 MHz : 25 FCC, 16 EU 802.11n : 20 MHz : 25 FCC, 16 EU 40 MHz : 12 FCC, 7 EU 80 MHz : 6 FCC, 3 EU 160 MHz 2 FCC, 1 EU
Compliance standards		UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155 for 2800e (Operating temperature -20° to 50°C) Radio approvals : FCC Part 15.107, 15.109, 15.247, 15.407, 14-30 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC IEEE standards : IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac Security : 802.11i, Wi-Fi Protected Access 3 (WPA3), WPA2, WPA 802.1X Advanced Encryption Standards (AES) Extensible Authentication Protocol (EAP) types : EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MCSHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 EAP-Flexible Authentication via Secure Tunneling (FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM) Multimedia : Wi-Fi Multimedia (WMM) Other : FCC Bulletin OET-65C RSS-102
Data rates supported		802.11b : 1, 2, 5.5, and 11 Mbps 802.11a/g : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n HT20 : 6.5 to 216.7 Mbps (MCS0 to MCS23) 802.11n HT40 : 13.5 to 450 Mbps (MCS0 to MCS23) 802.11ac VHT20 : 6.5 to 288.9 Mbps (MCS0 to 8 – SS 1, MCS0 to 9 – SS 2 and 3) 802.11ac VHT40 : 13.5 to 600 Mbps (MCS0 to 9 – SS 1 to 3) 802.11ac VHT80 : 29.3 to 1300 Mbps (MCS0 to 9 – SS 1 to 3) 802.11ac VHT160 : 58.5 to 2304 Mbps (MCS0 to 9 – SS 1 and 2, MCS0 to 8 – SS 3)
Transmit power and receive sensitivity
Spatial streams		5-GHz radio		2.4-GHz flexible radio		5-GHz flexible radio
Spatial streams		Total Tx power (dBm)	Rx sensitivity (dBm)	Total Tx power (dBm)	Rx sensitivity (dBm)	Total Tx power (dBm)	Rx sensitivity (dBm)
802.11/11b
1 Mbps	1	NA	NA	23	-101	NA	NA
11 Mbps	1	NA	NA	23	-88	NA	NA
802.11a/g
6 Mbps	1	23	-93	23	-91	23	-92
24 Mbps	1	23	-89	23	-87	23	-89
54 Mbps	1	23	-81	23	-77	22	-80
802.11n HT20
MCS0	1	23	-93	23	-91	23	-93
MCS4	1	23	-88	23	-86	23	-87
MCS7	1	23	-79	23	-77	22	-78
MCS8	2	23	-93	23	-91	21	-93
MCS12	2	23	-86	23	-85	23	-86
MCS15	2	23	-79	23	-77	21	-78
MCS16	3	23	-93	23	-91	23	-92
MCS20	3	23	-85	23	-84	22	-84
MCS23	3	23	-78	23	-76	18	-77
802.11n HT40
MCS0	1	23	-90			23	-89
MCS4	1	23	-85			23	-84
MCS7	1	23	-76			23	-75
MCS8	2	23	-90			23	-89
MCS12	2	23	-83			23	-83
MCS15	2	23	-76			21	-76
MCS16	3	23	-90			23	-89
MCS20	3	23	-82			23	-81
MCS23	3	23	-75			20	-74
802.11ac VHT20
MCS0	1	23	-93			23	-92
MCS4	1	23	-88			23	-87
MCS7	1	23	-82			22	-80
MCS8	1	23	-77			21	-75
MCS0	2	23	-93			23	-91
MCS4	2	23	-86			23	-84
MCS7	2	23	-79			21	-77
MCS8	2	23	-75			20	-73
MCS9	2	NA	NA			NA	NA
MCS0	3	23	-93			23	-91
MCS4	3	23	-85			22	-83
MCS7	3	23	-78			20	-76
MCS8	3	23	-74			19	-72
MCS9	3	23	-72			18	-70
802.11ac VHT40
MCS0	1	23	-90			23	-89
MCS4	1	23	-85			23	-84
MCS7	1	23	-78			22	-77
MCS8	1	23	-75			21	-73
MCS9	1	23	-73			20	-72
MCS0	2	23	-90			23	-89
MCS4	2	23	-83			23	-82
MCS7	2	23	-76			21	-75
MCS8	2	23	-73			20	-72
MCS9	2	23	-71			19	-69
MCS0	3	23	-90			23	-89
MCS4	3	23	-82			23	-80
MCS7	3	23	-74			20	-73
MCS8	3	23	-70			19	-68
MCS9	3	23	-69			18	-67
802.11ac VHT80
MCS0	1	23	-87			23	-86
MCS4	1	23	-83			23	-81
MCS7	1	23	-76			22	-74
MCS8	1	23	-72			21	-70
MCS9	1	23	-69			20	-68
MCS0	2	23	-87			23	-86
MCS4	2	23	-80			23	-79
MCS7	2	23	-73			21	-72
MCS8	2	23	-69			20	-68
MCS9	2	23	-67			19	-66
MCS0	3	23	-87			23	-86
MCS4	3	23	-77			23	-77
MCS7	3	23	-72			20	-70
MCS8	3	23	-67			19	-66
MCS9	3	22	-65			18	-64
802.11ac VHT160
MCS0	1	23	-83			23	-83
MCS4	1	23	-78			23	-78
MCS7	1	23	-71			22	-71
MCS8	1	23	-67			21	-68
MCS9	1	23	-66			20	-66
MCS0	2	23	-83			23	-83
MCS4	2	23	-76			23	-76
MCS7	2	23	-69			21	-69
MCS8	2	23	-65			20	-66
MCS9	2	23	-63			19	-63
MCS0	3	23	-82			23	-83
MCS4	3	23	-74			22	-74
MCS7	3	23	-67			20	-68
MCS8	3	23	-62			19	-62
