Cisco Aironet1815t Ghana



Cisco Aironet1815t Ghana

The Cisco Aironet1815t Ghana access point offers a highly secure enterprise wireless and wired connection to the home, micro-branch or other types of remote sites. It is ideal for small and medium-sized networks providing a superior mobility end-user experience.

Description

Cisco Aironet1815t Access Point Ghana

The Cisco Aironet1815t Ghana access point offers a highly secure enterprise wireless and wired connection to the home, micro-branch or other types of remote sites. Ideal for small and medium-sized networks, the Cisco Aironet 1815T delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience. This access point extends the corporate network to teleworkers, to mobile workers, or to micro-sites. This Cisco WiFi Ghana connects to the home or site broadband Internet access and establishes a highly secure tunnel to the corporate network. The Cisco Aironet1815t Ghana allows remote employees access to data, voice, video, and cloud services for a mobility experience consistent with that at the corporate office. The Cisco Aironet 1815t access points support secure corporate data access and personal connectivity for teleworkers’ home devices with segmented home traffic

The Cisco Aironet1815t Ghana, with IEEE’s 802.11ac Wave 2 support, offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1 Gbps. Easy to set up a virtual office at remote locations with secure WLAN connection and the same access rights as in the office. The Cisco Aironet 1815t Ghana is an 802.11 a/b/g/n/ac (Wave 2) access point, with internal antennas. You can place the access point horizontally on a desk. The AP supports 2.4 GHz 2×2 802.11b/g/n MU-MIMO and 5 GHz 2×2 802.11 a/n/ac (Wave 2) MU-MIMO applications simultaneously.

Features

MU-MIMO

Featuring Multiuser (MU) multiple-input multiple-output (MU-MIMO) Cisco Aironet1815t Ghana, allows simultaneous data transmission to multiple 802.11ac Wave 2–capable clients to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as single-user MIMO (SU-MIMO)

Real-time service extender

Cisco Aironet1815t Ghana extends real-time services such as voice, wireless, video, and data to remote locations that have no IT staff. No longer will geography or climate be the reason for lost work hours. Working at home is now like being at the office.

Secure

Using the same profile as at the corporate office, the Cisco Aironet 1815t Ghana establishes a secure Datagram Transport Layer Security (DTLS) connection between the access point and the controller to offer remote WLAN connectivity

Gigabit Ethernet ports

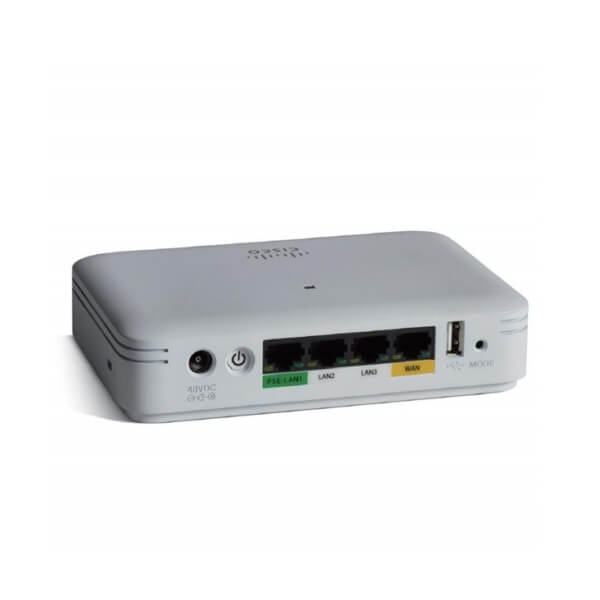

Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to a wireless LAN controller (for compatible controllers) or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera.

Increased Wireless Performance

The Cisco Aironet1815t Ghana supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

This Cisco WiFi Ghana allows wired access via a single RJ-45 10/100/1000 auto detection port. The access points come with three local Gigabit Ethernet ports and one uplink Gigabit Ethernet port, allowing for a variety of connections.

Mounting

The Cisco Aironet1815t Ghana can be configured at the corporate office and shipped, for a simple install at the remote office. The integrated antennas optimize wireless coverage when resting on a desk.

Specifications

General
Device Type Wireless access point
Width 6 in
Depth 4 in
Height 1.5 in
Weight 12.87 oz
Localization United States
Processor / Memory / Storage
Processors Installed 710 MHz
RAM 512 MB
Flash Memory 128 MB
Networking
Form Factor In-wall mountable
Ports Qty 3
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz, 5 GHz
Capacity
  • Wireless clients: 400
  • Wireless clients per Wi-Fi radio: 200
  • Spatial streams: 2
Status Indicators Port status, boot state, error, status
Features MAC address filtering, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), security lock slot (cable lock sold separately), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS)
Encryption Algorithm AES, TLS, PEAP, TTLS, WPA, WPA2
Authentication Method RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11ac (draft 5.0), IEEE 802.11r
Antenna
Antenna Internal
Expansion / Connectivity
Interfaces
  • 2 x 1000Base-T – RJ-45
  • 1 x 1000Base-T (PoE) – RJ-45
  • 1 x console – RJ-45
  • 1 x pass-through – RJ-45
Miscellaneous
Compliant Standards VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Power
Power Over Ethernet (PoE) Supported PoE
Software / System Requirements
Software Included CAPWAP Software Image
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)



Datasheet Download
