Description

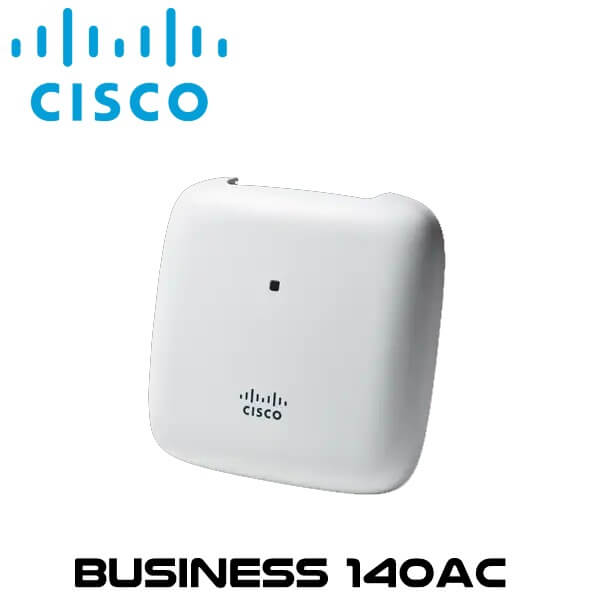

Cisco Business140AC Access Point Ghana

The Cisco Business140AC Ghana is Access Point that delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2. It also meets the growing flexibility requirements of wireless networks by introducing mesh technology—all while delivering a simple user experience. The Cisco Business140AC Ghana access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

With 802.11ac Wave 2 standard support, this Cisco Business140AC Ghana Access Point delivers a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation to stay ahead of the performance expectations and needs of wireless users. The Cisco Business 140AC Access Point delivers industry-leading performance for highly secure and reliable wireless connections, for an optimal end-user experience.

Features

MU-MIMO

Cisco Business140AC Ghana provides Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the Business140AC client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO). 802.11ac Wave 2 with 2×2 :2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Simplified management

Deploy and configure multiple Cisco Business access points and mesh extenders easily without a physical controller, using Cisco Business Mobile application. Optional multisite remote management is available through the Cisco FindIT Network Management.

Mesh technology support

Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.

Flexible deployment

Cisco Business140AC Ghana offer flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more

Increased wireless performance and coverage, featuring mesh technology

The Cisco Business140AC Ghana Access Point supports the latest 802.11ac Wave 2 standard for higher performance, greater coverage, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices and applications that will soon become a common part of the network. Integrated mesh technology enables deployment flexibility that is simple and secure. You can easily expand coverage and capacity using Cisco Business wireless mesh extenders, which include models that can be placed on a desktop, plugged into an AC electrical outlet, or mounted directly to a wall.

Cisco Business Mobile app

The Cisco Business 140AC Access Point is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can easily extend your network by adding new mesh extenders using Quick Response (QR) codes and wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling secure guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.

Power over Ethernet

The Cisco Business140AC Ghana Access Point features a single Gigabit Ethernet uplink port and is powered by Power over Ethernet (802.3af PoE standard).

Mounting

Featuring sleek, compact access point Cisco Business140AC Ghana is designed with flexible mounting options in mind. You can mount it directly on the ceiling (including T-bar rail mounting) or a wall. It is easy to install, and the mounting hardware is included.

Specifications

Authentication and security	Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) Segmentation via VLANs (up to 16) 802.11r and 802.11i Guest network can also authenticate against : Google and Facebook
Maximum clients	Maximum number of associated wireless clients : 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
Maximum # of Access Points	50 Recommended up to 25
Max # of Mesh Extenders	Maximum number of associated Cisco Business mesh extenders : 25 per Access Point, up to 8 hops
802.11ac	2×2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz 20-, 40-, and 80-MHz channels Dynamic Frequency Selection (DFS)
Ethernet ports	Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to Master AP
Data rates supported	802.11a : 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11b/g : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 GHz : 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
	802.11ac data rates on 5 GHz : 6.5 to 867 Mbps (MCS0-MCS9)
Maximum number of nonoverlapping channels	A (A regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels B (B regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.720 GHz; 12 channels 5.745 to 5.825 GHz; 5 channels C (C regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels D (D regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels E (E regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) F (F regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.805 GHz; 4 channels G (G regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.745 to 5.865 GHz; 7 channels H (H regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels I (I regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels	K (K regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.620 GHz; 7 channels 5.745 to 5.805 GHz; 4 channels N (N regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels R (R regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.660 to 5.700 GHz; 3 channels S5.745 to 5.805 GHz; 4 channels S (S regulatory domain) : 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 11 channels 5.745 to 5.825 GHz; 5 channels T (T regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.280 to 5.320 GHz; 3 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels Z (Z regulatory domain) : 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels
Available transmit power settings	2.4 GHz Up to 20 dBm	5 GHz Up to 20 dBm
Integrated antennas	2.4 GHz, gain 2 dBi 5 GHz, gain 4 dBi
Interfaces	1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) RJ-45 console port (not functional)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket) : 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)
Weight	Access point without mounting bracket or any other accessories : 14 oz (400 g)
Environmental	Operating Temperature : 32° to 104°F (0° to 50°C) Humidity : 10% to 90% (noncondensing) Maximum altitude : 9843 ft (3000 m) at 40°C Non-operating (storage and transportation) Temperature : –22° to 158°F (-30° to 70°C) Humidity : 10% to 90% (noncondensing) Maximum altitude : 15,000 ft (4500 m) at 25°C
System	1 GB DRAM, 256 MB flash 710-MHz quad core processor
Powering options	802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended Optional Cisco Business PoE injector
Power draw	8.3W (maximum, on PoE)
Mounting and physical security	Included with the access point : Mounting bracket Torx security screw Ceiling rail mount clip
Warranty	Cisco Business limited lifetime hardware warranty Free software updates, no service contract required
Compliance	Safety : UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 Radio approvals : FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 IEEE standards : IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d IEEE 802.11ac Security : 802.11i, WPA2, WAP3, WPA 802.1X AES Extensible Authentication Protocol (EAP) types : EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) Protected EAP (PEAP) v0 or EAP-MSCHAPv2 EAP-Flexible Authentication via Secure Tunneling (FAST) PEAP v1 or EAP-Generic Token Card (GTC) EAP-Subscriber Identity Module (SIM) Multimedia : Wi-Fi Multimedia (WMM) Other : FCC Bulletin OET-65C RSS-102
