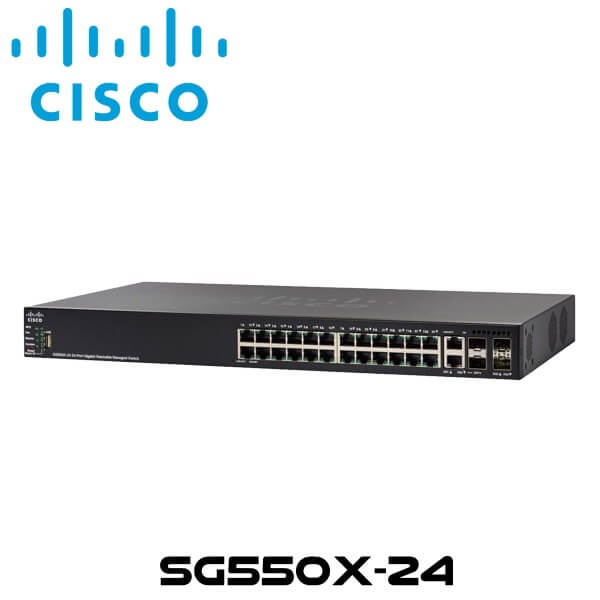

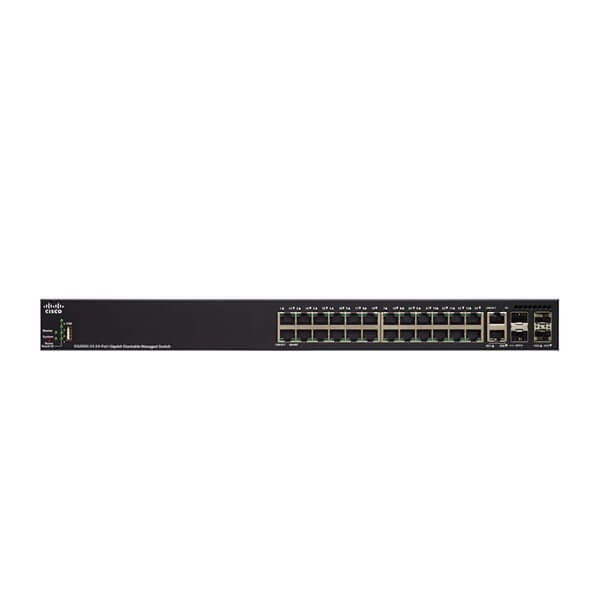

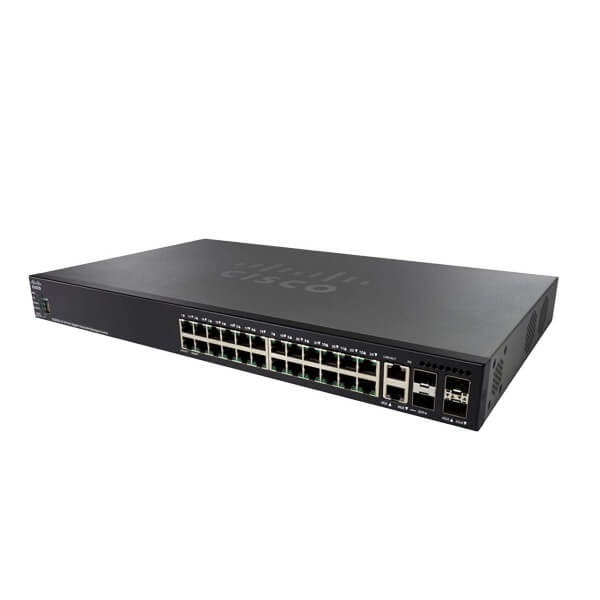

The Cisco SG550X-24 Ghana is the next-generation stackable managed Ethernet switch that provides the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price.

Category:

Description

Cisco SG550X-24 Network Switch Ghana

The Cisco SG550X-24 Ghana is the next-generation stackable managed Ethernet switch that provides the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. Cisco SG550X-24 Ghana switch incorporate fan and power hardware redundancy, increasing overall network availability. The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SG550XG models provide 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff. Cisco SG550X-24 Ghana switch provides the advanced feature set that growing businesses require and that high-bandwidth applications and technologies demand. The switch can improve the availability of your critical applications, protect your business information, and optimize your network bandwidth to more effectively deliver information and support applications.

Cisco SG550X-24 Ghana switch is designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, Cisco SG550X-24 Ghana provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. The switch also protects your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future

Features

High-Performance 10 Gigabit Ethernet

The Cisco SG550X-24 Ghana breaks the barrier of 10 Gigabit Ethernet adoption by providing affordable and flexible configurations customized for the demanding network requirements of small and medium businesses. With 10G copper ports on SG550XG switches, you can easily and cost-effectively enable 10G connections to servers and network storage devices with standard RJ45 Ethernet cable. You can also connect Cisco SG550X-24 Ghana access switch to the SG550XG aggregation with 10G SFP+ fiber, building a high-performance backbone to speed up the overall operation of your network.

High Reliability and Resiliency

The Cisco SG550X-24 Ghana switch provides an additional layer of resiliency with support for the Virtual Router Redundancy Protocol (VRRP). VRRP lets you extend the same resiliency that stacking provides for individual switches to complete network domains. By running VRRP between two stacks, you can instantly cut over from one stack to another in the event of a problem and continue operating even after a failure. The Cisco SG550X-24 Ghana also supports dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

Power over Ethernet Plus (PoE+) and 60W PoE

The Cisco SG550X-24 Ghana switch supports the Power over Ethernet Plus (PoE+) standard (IEEE 802.3at), providing up to 30 watts per port. The switches also support 60W PoE on selected ports to power compact switches, high-power wireless access points, or connected lighting. The power is managed in a smart fashion such that only the amount of power the endpoint needs is delivered to it and not wasted. As a result, the switches can support devices that require more power, such as 802.11ac wireless access points, video-based IP phones, surveillance cameras, and more. PoE capabilities simplify the deployment of advanced technologies by allowing you to connect and power network endpoints over a single Ethernet cable, without having to install separate power supplies. The Cisco SG550X-24 Ghana switch is also fully backward compatible with IEEE 802.11af PoE and Cisco legacy PoE protocols.

Power Efficiency

The Cisco SG550X-24 Ghana switch integrates a variety of power-saving features across all models, providing the industry’s most extensive energy-efficient switching portfolio. These switches are designed to conserve energy by optimizing power use, which helps protects the environment and reduce your energy costs. They provide an eco-friendly network solution without compromising performance. Cisco 550X Series switches feature:

  • Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
  • The latest application-specific integrated circuits (ASICs), which use low-power 28- or 40-nanometer technology and low-power, high-performance ARM CPUs
  • Automatic power shutoff on ports when a link is down
  • LEDs that can be turned off to save power
  • Embedded intelligence to adjust signal strength based on the length of the connecting cable
  • Smart fans in which fan speed is automatically adjusted according to switch temperature to decrease acoustic noise and save power

Advanced Stacking

The Cisco SG550X-24 Ghana provides true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit, with a single IP address for up to a maximum of 400 Ethernet ports. A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches cannot support. Using standard 10G fiber or copper connections, Cisco SG550X-24 Ghana supports both local and horizontal stacking deployments and the flexibility of ring or chain topology. The switches also have the capability to use link aggregation port as the stacking port, providing even higher stacking bandwidth for demanding applications.

Easy Deployment and Use

Cisco SG550X-24 Ghana is designed to be easy to use and manage by small and medium businesses, commercial customers, or the partners that serve them. Features include:

  • Simple and advanced mode graphic user interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
  • Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to easily set up and manage the network.
  • The switches also support Textview, a full command-line interface (CLI) option for customers or partners that prefer it.
  • The USB port on the switch enables easy image and configuration transfer for faster deployment or upgrade.
  • Using Auto Smart ports intelligence, the switch can detect a network device connected to any port and automatically configure the optimal security, quality of service (QoS), and availability on that port.
  • Cisco Discovery Protocol discovers Cisco devices and allows devices to share critical configuration information, simplifying network setup and integration.
  • Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
  • The Cisco FindIT utility, which works through a simple toolbar on the user’s web browser, discovers Cisco devices in the network and displays basic information, such as serial numbers and IP addresses, to aid in configuration and deployment.

Simplified IT Operation

Cisco SG550X-24 Ghana switch help optimize your IT operations with built-in features that simplify day-to-day network operation:

  • True stacking allows you to configure, manage, and troubleshoot multiple physical switches as a single entity.
  • Cisco switches use common chipsets/software across all switching portfolios, so all Cisco switches within a series support the same feature set, making it easier to manage and support all switches across the network.

Strong Security

Cisco SG550X-24 Ghana provides the advanced security features you need to protect your business data and keep unauthorized users off the network:

  • Embedded Secure Sockets Layer (SSL) encryption protects management data traveling to and from the switch.
  • Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
  • Guest VLANs let you provide Internet connectivity to nonemployee users while isolating critical business services from guest traffic.
  • Support for advanced network security applications such as IEEE 802.1X port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint.
  • Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB).
  • IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
  • Time-based ACLs and port operation restrict access to the network during predesignated times, such as business hours.
  • Uniform MAC address-based security can be applied automatically to mobile users as they roam between wireless access points.
  • Secure Core Technology (SCT) helps ensure that the switch is able to process management traffic in the face of a denial-of-service (DoS) attack.
  • Private VLAN provides Layer 2 isolation between devices on the same VLAN.
  • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.
  • Protection of management sessions is possible using RADIUS, TACACS+, and local database authentication as well as secure management sessions over SSL, SSH, and SNMPv3.
  • DoS attack prevention maximizes network uptime in the presence of an attack.

Advanced Layer 3 Traffic Management

The Cisco SG550X-24 Ghana enables a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. Additionally, Cisco SG550X-24 Ghana provides dynamic Layer 3 routing features. With these capabilities, you can minimize the need to manually configure routing devices and simplify the ongoing operation of the network.

IPv6 Support

As the IP address scheme evolves to accommodate a growing number of network devices Cisco SG550X-24 Ghana switch can support the transition to the next generation of networking and operating systems. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco 550X Series switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.

Networkwide Automatic Voice Deployment

Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smart ports, and Voice Services Discovery Protocol (VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The Cisco SG550X-24 Ghana switch network automatically converge around a single voice VLAN and QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

Peace of Mind and Investment Protection

Cisco 550X Series switches offer the reliable performance and peace of mind you expect from a Cisco switch. When you invest in Cisco SG550X-24 Ghana, you gain the benefits of:

  • Limited lifetime warranty with next-business-day (NBD) advance replacement (where available; otherwise same-day ship)
  • A solution that has been rigorously tested to help ensure optimal network uptime to keep employees connected to primary resources and productive
  • A solution designed and tested to easily and fully integrate with other Cisco voice, unified communications, security, and networking products as part of a comprehensive technology platform for your business

Specifications

Performance
Switching capacity and forwarding rate Product Name Capacity in mpps
(64-byte packets)
Switching Capacity (Gbps)
SF500-24 63.09 84.8
SF500-24P 63.09 84.8
SF550X-24MP 63.09 84.8
SF500-48 66.66 89.6
SF500-48P 66.66 89.6
SF550X-48MP 66.66 89.6
SG550X-24 95.23 128
SG550X-24P 95.23 128
SG550X-24MP 95.23 128
SG550X-24MPP 95.23 128
SG550X-48 130.94 176
SG550X-48P 130.94 176
SG550X-48MP 130.94 176
SG550XG-8F8T 238.08 320
SG550XG-24F 357.12 480
SG550XG-24T 357.12 480
SG550XG-48T 714.24 960
SX550X-12F 178.56 240
SX550X-16FT 238.08 320
SX550X-24FT 240.00 480
SX550X-24F 240.00 480
SX550X-24 240.00 480
SX550X-52 763.09 1,040
Layer 2 Switching
Spanning Tree Protocol
  • Standard 802.1d Spanning Tree Support
  • Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
  • Multiple spanning tree instances using 802.1s (MSTP). 16 instances are supported
Port grouping/link aggregation
  • Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Up to 32 groups
    • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG
VLAN
  • Support for up to 4094 active VLANs simultaneously; port-based and 802.1Q tag-based VLANs; MAC-based VLAN
  • Management VLAN
  • Private VLAN with promiscuous, isolated, and community port
  • Guest VLAN, unauthenticated VLAN, protocol-based VLAN, IP subnet-based VLAN, CPE VLAN
  • Dynamic VLAN assignment using RADIUS server along with 802.1x client authentication
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.
Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR).
Q-in-Q VLANs transparently cross over a service provider network while isolating traffic among customers.
GVRP/GARP Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain.
Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or port faults to prevent forwarding loops and blackholing of traffic in switched networks.
DHCP Relay at Layer 2 Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP option 82.
IGMP (versions 1, 2, and 3) snooping Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 4K multicast groups (source-specific multicasting is also supported).
IGMP querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router.
HOL blocking Head-of-line (HOL) blocking.
Layer 3
IPv4 routing
  • Wirespeed routing of IPv4 packets
  • Up to 7K routes and up to 256 IP interfaces
Wirespeed IPv6 Static Routing Up to 7K routes and up to 256 IPv6 interfaces
Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
CIDR Support for Classless Inter-Domain Routing
RIP v2 Support for Routing Information Protocol version 2, for dynamic routing
VRRP Virtual Router Redundancy Protocol (VRRP) delivers improved availability in a Layer 3 network by providing redundancy of the default gateway servicing hosts on the network. VRRP versions 2 and 3 are supported. Up to 255 virtual routers are supported
Policy-based routing (PBR) Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 ACL
DHCP server Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes.
Support for DHCP options
DHCP Relay at Layer 3 Relay of DHCP traffic across IP domains.
User Datagram Protocol (UDP) Relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of BOOTP/DHCP packets.
Stacking
Hardware stack Up to 8 units in a stack. Up to 400 ports managed as a single system with hardware failover.
High availability Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack.
Plug-and-play stacking configuration/management
  • Master/backup for resilient stack control
  • Auto-numbering
  • Hot swap of units in stack
  • Ring and chain stacking options, autostacking port speed, flexible stacking port options
High-speed stack interconnects Cost-effective high-speed 10G fiber and copper interfaces. Support LAG as stacking interconnects for even higher bandwidth.
Security
SSH Secure Shell (SSH) Protocol secures Telnet traffic to and from the switch. SSH versions 1 and 2 are supported.
SSL Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch.
IEEE 802.1X (Authenticator role)
  • RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode and single/multiple sessions
  • Supports time-based 802.1X dynamic VLAN assignment
Web-based authentication Web-based authentication provides network admission control through web browser to any host devices and operating systems.
STP BPDU Guard A security mechanism to protect the networks from invalid configurations. A port enabled for Bridge Protocol Data Unit (BPDU) Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops.
STP Root Guard This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.
DHCP snooping Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as a DHCP server.
IP Source Guard (IPSG) When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing.
Dynamic ARP Inspection (DAI) The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks.
IP/MAC/Port Binding (IPMB) The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DoS attacks in the network, thereby increasing network availability.
Secure Core Technology (SCT) Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received.
Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.
Private VLAN Private VLAN provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks.
Port security Ability to lock MAC addresses to ports, and limit the number of learned MAC addresses.
RADIUS/TACACS+ Supports RADIUS and TACACS authentication. Switch functions as a client.
RADIUS accounting The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.
Storm control Broadcast, multicast, and unknown unicast.
DoS prevention Denial-of-service (DoS) attack prevention.
Multiple user privilege levels in CLI Levels 1, 7, and 15 privilege levels.
ACLs
  • Support for up to 2K entries on SG550XG models.
  • Support for up to 3K entries on all other models.
  • Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag; ACL can be applied on both ingress and egress sides.
  • Time-based ACLs supported.
Quality of Service
Priority levels 8 hardware queues
Scheduling Strict Priority and weighted round-robin (WRR)
Class of service
  • Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs, Trusted QoS
  • Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Rate limiting Ingress policer; egress shaping and ingress rate control; per VLAN, per port, and flow base; 2R3C policing
Congestion avoidance A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization.
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbit/s Ethernet over fiber for LAN, IEEE 802.3an 10GBase-T 10 Gbit/s Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
IPv6
IPv6
  • IPv6 host mode IPv6 over Ethernet dual IPv6/IPv4 stack
  • IPv6 Neighbor and Router Discovery (ND), IPv6 Stateless Address Autoconfiguration, path MTU Discovery
  • Duplicate Address Detection (DAD) ICMPv6
  • IPv6 over IPv4 network with ISATAP tunnel support
  • USGv6 and IPv6 Gold Logo certified
IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or Rate Limit IPv6 packets in hardware
IPv6 First Hop Security
  • RA guard
  • ND inspection
  • DHCPv6 guard
  • Neighbor binding table (snooping and static entries)
  • Neighbor binding integrity check
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet Server/SSH, Ping, Traceroute, SNTP, TFTP, SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS
IPv6 RFC supported
  • RFC 4443 (which obsoletes RFC 2463) – ICMPv6
  • RFC 4291 (which obsoletes RFC 3513) – IPv6 Address Architecture
  • RFC 4291 – IP Version 6 Addressing Architecture
  • RFC 2460 – IPv6 Specification
  • RFC 4861 (which obsoletes RFC 2461) – Neighbor Discovery for IPv6
  • RFC 4862 (which obsoletes RFC 2462) – IPv6 Stateless Address Auto-configuration
  • RFC 1981 – Path MTU Discovery
  • RFC 4007 – IPv6 Scoped Address Architecture
  • RFC 3484 – Default address selection mechanism
  • RFC 5214 (which obsoletes RFC 4214) – ISATAP tunneling
  • RFC 4293 – MIB IPv6: Textual Conventions and General Group
  • RFC 3595 – Textual Conventions for IPv6 Flow Label
Management
Web user interface
  • Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS).
  • Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search.
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)
Standard MIBs
  • lldp-MIB
  • lldpextdot1-MIB
  • lldpextdot3-MIB
  • lldpextmed-MIB
  • rfc2674-MIB
  • rfc2575-MIB
  • rfc2573-MIB
  • rfc2233-MIB
  • rfc2013-MIB
  • rfc2012-MIB
  • rfc2011-MIB
  • RFC-1212
  • RFC-1215
  • SNMPv2-CONF
  • SNMPv2-TC
  • p-bridge-MIB
  • q-bridge-MIB
  • rfc1389-MIB
  • rfc1493-MIB
  • rfc1611-MIB
  • rfc1612-MIB
  • rfc1850-MIB
  • rfc1907-MIB
  • rfc2571-MIB
  • rfc2572-MIB
  • rfc2574-MIB
  • rfc2576-MIB
  • rfc2613-MIB
  • rfc2665-MIB
  • rfc2668-MIB
  • rfc2737-MIB
  • rfc3621-MIB
  • rfc4668-MIB
  • rfc4670-MIB
  • trunk-MIB
  • tunnel-MIB
  • udp-MIB
  • draft-ietf-bridge-8021x-MIB
  • draft-ietf-bridge-rstpmib-04-MIB
  • draft-ietf-hubmib-etherif-mib-v3-00-MIB
  • ianaaddrfamnumbers-MIB
  • ianaifty-MIB
  • ianaprot-MIB
  • inet-address-MIB
  • ip-forward-MIB
  • ip-MIB
  • RFC1155-SMI
  • RFC1213-MIB
  • SNMPv2-MIB
  • SNMPv2-SMI
  • SNMPv2-TM
  • RMON-MIB
  • rfc1724-MIB
  • dcb-raj-DCBX-MIB-1108-MIB
  • rfc1213-MIB
  • rfc1757-MIB
Private MIBs
  • CISCOSB-lldp-MIB
  • CISCOSB-brgmulticast-MIB
  • CISCOSB-bridgemibobjects-MIB
  • CISCOSB-bonjour-MIB
  • CISCOSB-dhcpcl-MIB
  • CISCOSB-MIB
  • CISCOSB-wrandomtaildrop-MIB
  • CISCOSB-traceroute-MIB
  • CISCOSB-telnet-MIB
  • CISCOSB-stormctrl-MIB
  • CISCOSBssh-MIB
  • CISCOSB-socket-MIB
  • CISCOSB-sntp-MIB
  • CISCOSB-smon-MIB
  • CISCOSB-phy-MIB
  • CISCOSB-multisessionterminal-MIB
  • CISCOSB-mri-MIB
  • CISCOSB-jumboframes-MIB
  • CISCOSB-gvrp-MIB
  • CISCOSB-endofmib-MIB
  • CISCOSB-dot1x-MIB
  • CISCOSB-deviceparams-MIB
  • CISCOSB-cli-MIB
  • CISCOSB-cdb-MIB
  • CISCOSB-brgmacswitch-MIB
  • CISCOSB-3sw2swtables-MIB
  • CISCOSB-smartPorts-MIB
  • CISCOSB-tbi-MIB
  • CISCOSB-macbaseprio-MIB
  • CISCOSB-env_mib-MIB
  • CISCOSB-policy-MIB
  • CISCOSB-sensor-MIB
  • CISCOSB-aaa-MIB
  • CISCOSB-application-MIB
  • CISCOSB-bridgesecurity-MIB
  • CISCOSB-copy-MIB
  • CISCOSB-CpuCounters-MIB
  • CISCOSB-Custom1BonjourService-MIB
  • CISCOSB-dhcp-MIB
  • CISCOSB-dlf-MIB
  • CISCOSB-dnscl-MIB
  • CISCOSB-embweb-MIB
  • CISCOSB-fft-MIB
  • CISCOSB-file-MIB
  • CISCOSB-greeneth-MIB
  • CISCOSB-interfaces-MIB
  • CISCOSB-interfaces_recovery-MIB
  • CISCOSB-ip-MIB
  • CISCOSB-iprouter-MIB
  • CISCOSB-ipv6-MIB
  • CISCOSB-mnginf-MIB
  • CISCOSB-lcli-MIB
  • CISCOSBlocalization-MIB
  • CISCOSB-mcmngr-MIB
  • CISCOSB-mng-MIB
  • CISCOSB-physdescription-MIB
  • CISCOSB-PoE-MIB
  • CISCOSB-protectedport-MIB
  • CISCOSB-rmon-MIB
  • CISCOSB-rs232-MIB
  • CISCOSB-SecuritySuite-MIB
  • CISCOSB-snmp-MIB
  • CISCOSB-specialbpdu-MIB
  • CISCOSB-banner-MIB
  • CISCOSB-syslog-MIB
  • CISCOSB-TcpSession-MIB
  • CISCOSB-traps-MIB
  • CISCOSB-trunk-MIB
  • CISCOSB-tuning-MIB
  • CISCOSB-tunnel-MIB
  • CISCOSB-udp-MIB
  • CISCOSB-vlan-MIB
  • CISCOSB-ipstdacl-MIB
  • CISCOSB-eee-MIB
  • CISCOSB-ssl-MIB
  • CISCOSB-digitalkeymanage-MIB
  • CISCOSB-qosclimib-MIB
  • CISCOSB-vrrp-MIB
  • CISCOSB-tbp-MIB
  • CISCOSB-stack-MIB
  • CISCOSMB-MIB
  • CISCOSB-secsd-MIB
  • CISCOSB-draft-ietf-entmib-sensor-MIB
  • CISCOSB-draft-ietf-syslog-device-MIB
  • CISCOSB-rfc2925-MIB
  • CISCOSB-vrrpv3-MIB
  • CISCO-SMI-MIB
  • CISCOSB-DebugCapabilities-MIB
  • CISCOSB-CDP-MIB
  • CISCOSB-vlanVoice-MIB
  • CISCOSB-EVENTS-MIB
  • CISCOSB-sysmng-MIB
  • CISCOSB-sct-MIB
  • CISCO-TC-MIB
  • CISCO-VTP-MIB
  • CISCO-CDP-MIB
RMON Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack Coexistence of both protocol stacks to ease migration
Firmware upgrade
  • Web browser upgrade (HTTP/HTTPS) and TFTP and SCP
  • Upgrade can be initiated through console port as well
  • Dual images for resilient firmware upgrades
Port mirroring Traffic on a port or LAG can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.
Flow-based redirection and mirroring Redirect or mirror traffic to a destination port or mirroring session based on flow
Remote Switch Port Analyzer (RSPAN) Traffic can be mirrored across Layer 2 domain to a remote port on a different switch for easier troubleshooting
sFlow agent Switch can export sFlow sample to external collectors. sFlow provides visibility into network traffic down to flow level.
DHCP (Options 12, 66, 67, 82, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP Server), to obtain IP address, auto configuration (with configuration file download), DHCP Relay, and host name.
Auto configuration with Secure Copy (SCP) file download Enables secure mass deployment with protection of sensitive data.
Text-editable configs Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment.
Smartports Simplified configuration of QoS and security capabilities.
Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero touch deployments.
Secure Copy (SCP) Securely transfer files to and from the switch.
Textview CLI Scriptable CLI. A full CLI as well as a menu CLI is supported.
Cloud Services Support for Cisco Active Advisor
Localization Localization of GUI and documentation into multiple languages.
Login banner Configurable login banners for web as well as CLI.
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up).
Other management Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; Simple Network Time Protocol (SNTP); Xmodem upgrade; cable diagnostics; Ping; syslog; Telnet client (SSH secure support); Automatic time settings from Management Station.
Green (Power Efficiency)
Energy Detect
  • Automatically turns power off on Gigabit Ethernet RJ-45 port when detecting link down.
  • Active mode is resumed without loss of any packets when the switch detects the link is up.
Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE compliant (802.3az) Supports IEEE 802.3az on all Gigabit copper ports.
Disable port LEDs LEDs can be manually turned off to save on energy.
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K.
MAC table
  • 64K addresses on SG550XG models.
  • 16K addresses on all other models.
Discovery
Bonjour The switch advertises itself using the Bonjour protocol.
LLDP (802.1ab) with LLDP-MED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol (CDP) The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol.
Power over Ethernet (PoE)
The following switches support 802.3at PoE+, 802.3af PoE, and Cisco prestandard (legacy) PoE on any of the RJ45 network ports. 60W PoE is also supported on selected RJ-45 network ports.
Maximum power of 60W is delivered to any of the 60W PoE ports, and maximum power of 30W is delivered to any of the other RJ45 network ports, until the PoE budget for the switch is reached.
The total power available for PoE per switch is as follows.
Model Name Power Dedicated to PoE Number of Ports That Support PoE
SF500X-24P 195W 24 (8 support 60W PoE)
SF500X-24MP 382W 24 (8 support 60W PoE)
SF500X-48P 382W 48 (16 support 60W PoE)
SF500X-48MP 740W 48 (16 support 60W PoE)
SG500X-24P 195W 24 (8 support 60W PoE)
SF500X-24MP 382W 24 (8 support 60W PoE)
SF500X-24MPP 740W 24 (8 support 60W PoE)
SG500X-48P 382W 48 (16 support 60W PoE)
SG500X-48MP 740W 48 (16 support 60W PoE)
Power consumption (worst case)
Model Name Green Power (mode) System Power Consumption (with PoE) Heat Dissipation (BTU/hr)
SF550X-24 EEE, Energy Detect, Short Reach 110V=20.0W
220V=20.8W
70.97
SF500X-24P EEE, Energy Detect, Short Reach 110V=39.3W (110V=242.1W)
220V=39.9W (220V=239.2W)
826.08
SF550X-24MP EEE, Energy Detect, Short Reach 110V=41.2W (110V=452.0W)
220V=42.0W (220V=440.9W)
1,542.29
SF500X-48 EEE, Energy Detect, Short Reach 110V=35.9W
220V=37.6W
128.30
SF500X-48P EEE, Energy Detect, Short Reach 110V=50.7W (110V=461.8W)
220V=51.3W (220V=448.9W)
1,575.73
SF550X-48MP EEE, Energy Detect, Short Reach 110V=54.7W (110V=842.1W)
220V=54.4W (220V=820.7W)
2,873.36
SG550X-24 EEE, Energy Detect, Short Reach 110V=33.5W
220V=33.5W
114.31
SG550X-24P EEE, Energy Detect, Short Reach 110V=49.4W (110V=269.2W)
220V=50.1W (220V=260.1W)
918.55
SG550X-24MP EEE, Energy Detect, Short Reach 110V=53.8W (110V=471.2W)
220V=54.8W (220V=460.4W)
1,607.80
SG550X-24MPP EEE, Energy Detect, Short Reach 110V=62.3W (110V=870.1W)
220V=62.2W (220V=860.2W)
2,968.90
SG550X-48 EEE, Energy Detect, Short Reach 110V=52.0W
220V=51.8W
177.43
SG550X-48P EEE, Energy Detect, Short Reach 110V=76.3W (110V=494.3W)
220V=76.9W (220V=483.1W)
1,686.62
SG550X-48MP EEE, Energy Detect, Short Reach 110V=82.9W (110V=893.1W)
220V=82.9W (220V=878.0W)
3,047.38
SG550XG-8F8T EEE, Energy Detect, Short Reach 110V=84.3W
220V=84.6W
288.67
SG550XG-24F EEE, Energy Detect, Short Reach 110V=76.6W
220V=77.5W
264.44
SG550XG-24T EEE, Energy Detect, Short Reach 110V=143.9W
220V=142.9W
491.01
SG550XG-48T EEE, Energy Detect, Short Reach 110V=264.4W
220V=255.8W
902.17
SG550XG-48T EEE, Energy Detect, Short Reach 110V=264.4W
220V=255.8W
902.17
SX550X-12F EEE, Energy Detect, Short Reach 110V=24.43W
220V=25.3W
86.33
SX550X-16FT EEE, Energy Detect, Short Reach 110V=54W
220V=57.7W
196.88
SX550X-24FT EEE, Energy Detect, Short Reach 110V=78.4W
220V=80.2W
273.65
SX550X-24F EEE, Energy Detect, Short Reach 110V=54.9W
220V=55.5W
189.37
SX550X-24 EEE, Energy Detect, Short Reach 110V=124.1W
220V=124.6W
425.15
SX550X-52 EEE, Energy Detect, Short Reach 110V=234.5W
220V=229.3W
800.15
Ports
Model Name Total System Ports RJ-45 Ports Combo Ports (RJ-45 + SFP)
SF550X-24 24 FE + 4 10GE 24 FE 2 10GE copper/SFP+ combo + 2 SFP+
SF500X-24P 24 FE + 4 10GE 24 FE 2 10GE copper/SFP+ combo + 2 SFP+
SF550X-24MP 24 FE + 4 10GE 24 FE 2 10GE copper/SFP+ combo + 2 SFP+
SF500X-48 48 FE + 4 10GE 48 FE 2 10GE copper/SFP+ combo + 2 SFP+
SF500X-48P 48 FE + 4 10GE 48 FE 2 10GE copper/SFP+ combo + 2 SFP+
SF550X-48MP 48 FE + 4 10GE 48 FE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-24 24 GE + 4 10GE 24 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-24P 24 GE + 4 10GE 24 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-24MP 24 GE + 4 10GE 24 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-24MPP 24 GE + 4 10GE 24 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-48 48 GE + 4 10GE 48 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-48P 48 GE + 4 10GE 48 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550X-48MP 48 GE + 4 10GE 48 GE 2 10GE copper/SFP+ combo + 2 SFP+
SG550XG-8F8T 8 10G copper + 8 10G SFP+ plus 1 GE OOB management 8 10GE 8 10GE SFP+ (dedicated)
SG550XG-24F 22 10G SFP+ slots + 2 combo 10G copper/SFP+ plus 1 GE OOB management 22 10GE SFP+ 2 10GE copper/SFP+ combo
SG550XG-24T 22 10G copper + 2 combo 10G copper/SFP+ plus 1 GE OOB management 22 10GE 2 10GE copper/SFP+ combo
SG550XG-48T 46 10G copper + 2 combo 10G copper/SFP+ plus 1 GE OOB management 46 10GE 2 10GE copper/SFP+ combo
SX550X-12F 10x 10 GE SFP+ slots + 2x combo 10 GE copper/SFP+ plus 1x GE OOB management 10x 10 GE 2x 10 GE copper/SFP+ combo
SX550X-16FT 8x 10 GE copper + 8x 10 GE SFP+ plus 1x GE OOB management 8x 10 GE 8x 10 GE SFP+
SX550X-24FT 12x 10 GE copper + 12x 10 GE SFP+ plus 1 GE OOB management 12x 10 GE 12x 10 GE SFP+
SX550X-24F 20x 10 GE SFP+ slots + 4x combo 10 GE copper/SFP+ plus 1x GE OOB management 20x 10 GE SFP+ 4x 10 GE copper/SFP+ combo
SX550X-24 20x 10 GE copper + 4x combo 10 GE copper/SFP+ plus 1x GE OOB management 20x 10 GE 4x 10 GE copper/SFP+ combo
SX550X-52 48x 10 GE copper + 4x 10 GE SFP+ plus 1x GE OOB management 48x 10 GE 4x 10 GE SFP+
Product Specifications
Console port Cisco Standard RJ45 console port
OOB management port Dedicated Gigabit management port for out-of-band management on SG550XG models
RPS RPS connector
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better; fiber options (SMF and MMF); coaxial SFP+
LEDs System, master, fan, RPS, stack ID, link/speed per port
Flash 256 MB
CPU 800 MHz (dual-core) ARM
CPU memory 512 MB
Package Contents
  • Cisco 550X Series Stackable Managed Switch
  • Power cord
  • Mounting kit included with all models
  • Serial cable
  • CD-ROM with user documentation (PDF) included
  • Quick Start Guide
Minimum Requirements
  • Web browser: Mozilla Firefox version 34 or later; Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later.
  • Category 5 Ethernet network cable for 10/100 speeds at up to 100m; Category 5e Ethernet network cable for Gigabit speeds at up to 100m; Category 6a Ethernet network cable for 10 Gig speeds at up to 100m.
  • TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
Packet buffer
All numbers are aggregate across all ports because the buffers are dynamically shared:
Model Name Packet Buffer
SF550X-24 1.5 MB
SF500X-24P 1.5 MB
SF550X-24MP 1.5 MB
SF500X-48 3 MB
SF500X-48P 3 MB
SF550X-48MP 3 MB
SG550X-24 1.5 MB
SG550X-24P 1.5 MB
SG550X-24MP 1.5 MB
SG550X-24MPP 1.5 MB
SG550X-48 3 MB
SG550X-48P 3 MB
SG550X-48MP 3 MB
SG550XG-8F8T 2 MB
SG550XG-24F 2 MB
SG550XG-24T 2 MB
SG550XG-48T 4 MB
SX550X-12F 3 MB
SX550X-16FT 3 MB
SX550X-24FT 3 MB
SX550X-24F 3 MB
SX550X-24 3 MB
SX550X-52 10 MB
Supported SFP/SFP+ Modules
SKU Media Speed Maximum Distance
MGBBX1 Single-mode fiber 1000 Mbps 10 km
MGBSX1 Multimode fiber 1000 Mbps 500 m
MGBLH1 Single-mode fiber 1000 Mbps 40 km
MGBLX1 Single-mode fiber 1000 Mbps 10 km
MGBT1 UPT cat 5 1000 Mbps 100 m
SFP-H10GB-CU1M Copper coax 10 Gig 1 m
SFP-H10GB-CU3M Copper coax 10 Gig 3 m
SFP-H10GB-CU5M Copper coax 10 Gig 5 m
SFP-10G-SR Multimode fiber 10 Gig 26 m – 400 m
SFP-10G-LR Single-mode fiber 10 Gig 10 km
SFP-10G-SR-S Multimode fiber 10 Gig 26 m – 400 m
SFP-10G-LR-S Single-mode fiber 10 Gig 10 km
Environmental
Power 100 – 240V 47 – 63 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 122°F (0° to 50°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Warranty Limited lifetime with next-business-day advance replacement (where available, otherwise same day ship)
Unit Dimensions (W x H x D)
SF550X-24 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SF500X-24P 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SF550X-24MP 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SF500X-48 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SF500X-48P 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SF550X-48MP 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550X-24 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SG550X-24P 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550X-24MP 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550X-24MPP 440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)
SG550X-48 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SG550X-48P 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550X-48MP 440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)
SG550XG-8F8T 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550XG-24F 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SG550XG-24T 440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)
SG550XG-48T 440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)
SX550X-12F 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SX550X-16FT 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
SX550X-24FT 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SX550X-24F 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SX550X-24 440 x 44 x 350 mm (17.3 x 1.7 x 13.78 in)
SX550X-52 440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)
Unit weight
SF550X-24 3.09 kg (6.81 lb)
SF500X-24P 4.14 kg (9.13 lb)
SF550X-24MP 4.74 kg (10.45 lb)
SF500X-48 3.54 kg (7.80 lb)
SF500X-48P 5.09 kg (11.22 lb)
SF550X-48MP 5.16 kg (11.38 lb)
SG550X-24 3.27 kg (7.21 lb)
SG550X-24P 4.72 kg (10.41 lb)
SG550X-24MP 5.33 kg (11.75 lb)
SG550X-24MPP 6.19 kg (13.65 lb)
SG550X-48 3.73 kg (8.22 lb)
SG550X-48P 5.82 kg (12.83 lb)
SG550X-48MP 6.69 kg (14.75 lb)
SG550XG-8F8T 5.23 kg (11.53 lb)
SG550XG-24F 4.16 kg (9.17 lb)
SG550XG-24T 6.38 kg (14.07 lb)
SG550XG-48T 7.43 kg (16.38 lb)
SX550X-12F 3.42 kg (7.54 lb)
SX550X-16FT 3.79 kg (8.36lb)
SX550X-24FT 4.84 kg (10.67 lb)
SX550X-24F 4.70 kg (10.36 lb)
SX550X-24 5.16 kg (11.38 lb)
SX550X-52 7.36 kg (16.23 lb)



Datasheet Download
