Grandstream ghp620 Ghana



grandstream ghp620 ghana

The grandstream ghp620 ghana hotel phone features easy-to-use IP phone for any hotel room that can be programmed and customized based on the needs of hotels and their guests.

Category:

Description

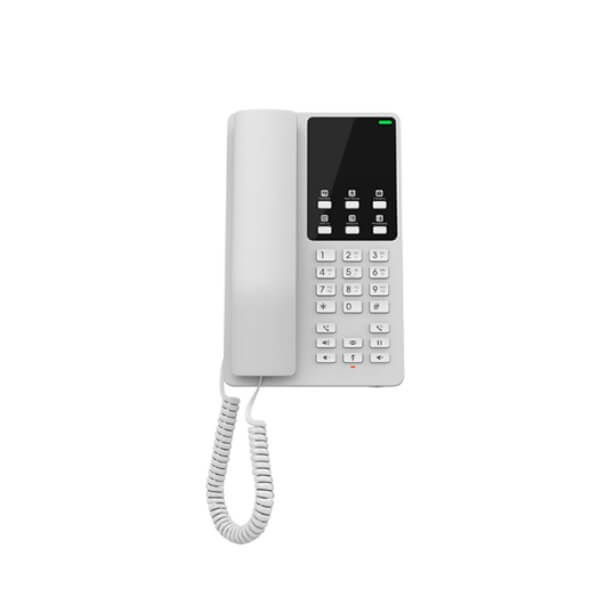

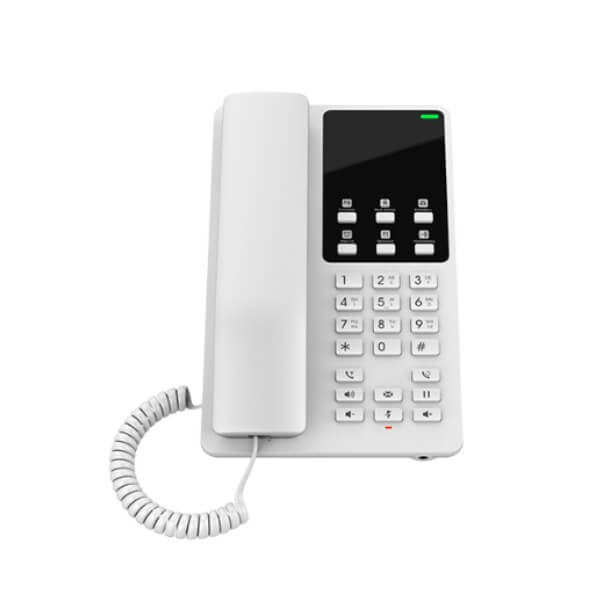

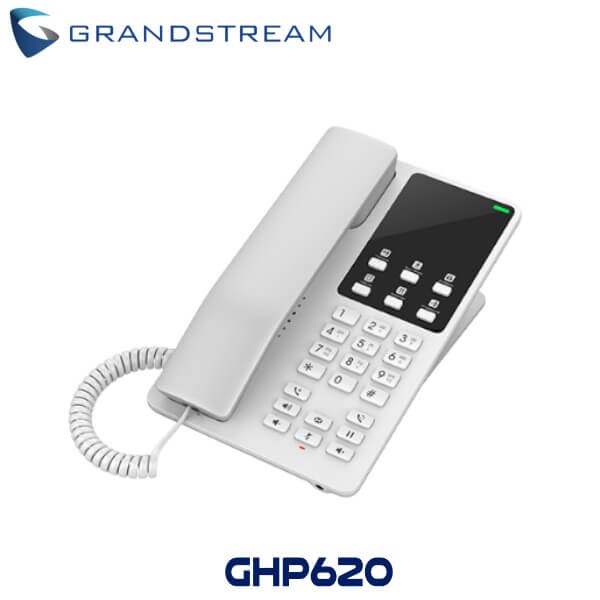

Grandstream ghp620 hotel phone ghana

The grandstream ghp620 ghana hotel phone features easy-to-use IP phone for any hotel room that can be programmed and customized based on the needs of hotels and their guests. The GHP620 is a compact IP phone with a streamlined interface and a desktop phone design that can be customized based on the needs of hotels and their guests. The grandstream ghp620 ghana provides an HD speaker on the handset, 2 SIP accounts/lines, 10-speed dial keys, and six programmable keys ideal for deployment in hotels and resorts as well as many other similar environments that need a simple, sleek, and easy-to-use IP phone.

This hotel phone provides 3-way voice conferencing, supports full-band OPUS voice codec and features an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The GHP620 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Thanks to a compact design that can be easily used on a desktop or mounted on a wall, the GHP620 is ideal for hotel deployments as well as many other similar enterprises.

Features

  • 2 SIP Accounts, 2 Lines
  • GDMS online device management and provisioning
  • 3-way audio conferencing for easy conference calls
  • Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac (GHP620W & GHP621W only)
  • Includes one 100Mbps network port with PoE (GHP620 & GHP621 only)
  • Speed dial label and swappable faceplate to allow for easy customization
  • Hearing Aid Compatibility (HAC)
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage

Specifications

Protocols/Standards

SIP : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP Network : IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x

Network Interfaces

One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2 (GHP620/GHP621)

Wi-Fi

GHP620W/GHP621W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac

Feature Keys

  • 26 keys, including :
  • 6 programmable keys;
  • 12 Standard Phone Digits keys (0-9 : speed dial keys configuration on web page, * , #);
  • 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold);
  • 3 Volume Control keys, Up/Down/Mute (with red color LED)

HD Audio

  • One HD handset support for wide band audio

Voice Conferencing

  • 2 SIP accounts and lines, up to 3-way conference

Voice Codecs and Capabilities

  • Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, full band Opus, In[1]band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony Features

  • Dial, Answer, Redial, Flash ,Hands-free, Voice Mail(with the server), Transfer, Conference, Hold /Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out

Advanced Features

  • Support for multicast paging and E911 service.
  • Support GDS Door opening.
  • Support for advanced jitter-resilience algorithm.

USB

  • USB Type-C port for charging external devices (500mA MAX)

Wall Installation

  • 1 Wall Mountable Base

QoS

  • Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • Secure boot, random default password, unique security certificate per device, administrator level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control

Multi-language

  • English and Chinese

Upgrade/Provisioning

  • Firmware upgrade via FTP / TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

  • Universal power adapter (GHP620W/GHP621W) : Input : 100~240Vac 50~60Hz Output : 12V/0.5A(6W)

Temperature and Humidity

  • Operation : 0°C to 40°C Storage : -10°C to 60°C Humidity : 10% to 90% (Non-condensing)

Package Content

  • GHP phone, handset with cord, Base Stand, universal power supply (GHP620W, GHP621W), faceplate, Quick Installation Guide

Color

  • White (GHP620, GHP620W), Black (GHP621, GHP621W)

Physical

  • 210mm(L)*132mm(W)*89.8mm(H) (with handset and base stand) Unit weight : 560g (GHP620/GHP621), 610g (GHP620W/GHP621W US), 620g (GHP620W/ GHP621W World) Package weight : 860g (GHP620/GHP621), 910g (GHP620W/GHP621W US), 920g (GHP620W/GHP621W World)

GHP620 & GHP621 Compliance

  • FCC : Part 15 Subpart B, Class B; Part 68. 316/317. CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1. UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1. RCM : AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004. IC : ICES-003; CS-03 Part V. GHP620W & GHP621W Compliance FCC : Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68. 316/317. CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\- 17; ETSI EN 300 328; ETSI EN 301 893; EN IEC 62311. UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1; ETSI EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN IEC 62311. RCM : AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004. IC : RSS-247; RSS-Gen; RSS-102; ICES-003; CS-03 Part V.

Datasheet Download
