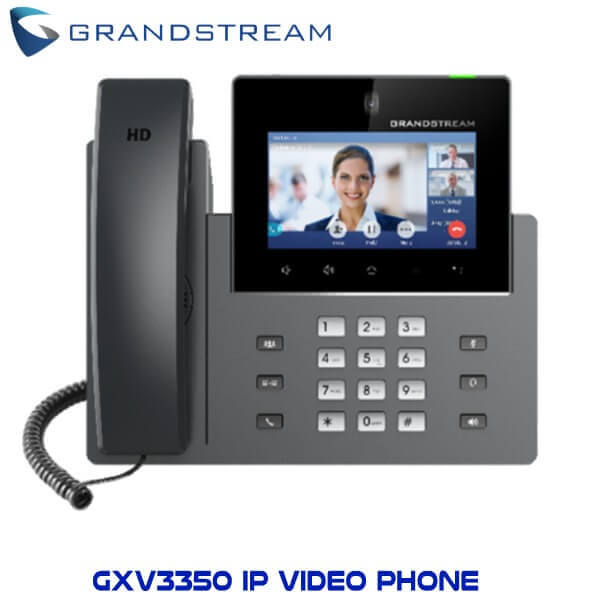

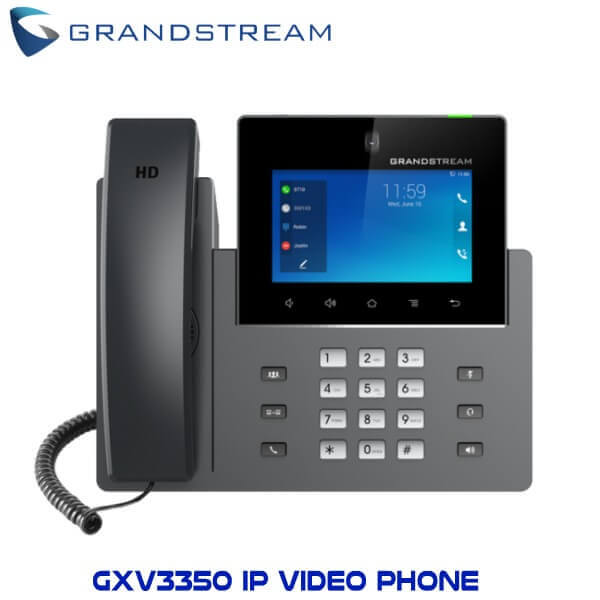

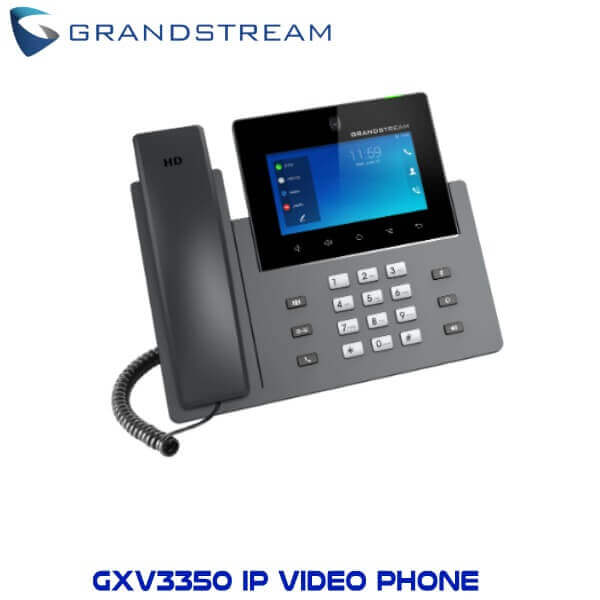

Grandstream GXV3350 IP Video Phone Ghana



Grandstream GXV3350 IP Video Phone Ghana

Based on SIP, the Grandstream GXV3350 IP Video Phone Ghana is widely compatible with many different SIP platforms and can be easily integrated with other Grandstream devices including SIP-based security cameras, door systems, IP PBXs, as well as video conferencing systems and services. It is the best choice for any user who is seeking an integrated video communications solution for their desktop

Category:

Description

Grandstream GXV3350 IP Video Phone Ghana

Grandstream GXV3350 IP Video Phone Ghana is based on the Android 7.0 Operating System and has flexible SDK support for custom apps, making it a perfect desktop video phone for business people. It’s wide 5” touch screen display delivers an enhanced visual clarity to its user. Other advanced features of the premium IP Video Phone include an advanced megapixel camera for HD video conferencing, integrated Wi-Fi and Bluetooth connectivity, Gigabit network speeds, and many other standard IP telephony features. The Grandstream GXV3350 IP Video Phone Ghana is equipped with an auxiliary port that connects to an RJ9 headset jack allowing for EHS with Plantronics headset. The headsets allow the user to enjoy maximum mobility in the office. The Grandstream GXV3370 IP Video phone Ghana supports 6-way HD audio conferencing and 3-way video conferences at a high resolution of 720p at 30 frames per second. This enables you to seamlessly connect and collaborate with colleagues from different geographical locations. It is a cost-effective means of communication which helps in saving time. The Video Phone is configured to support a number of different languages including English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more, therefore allowing you to choose the language that you best understand.

Grandstream GXV3350 Features:

  • Android Version 7.0
  • Built-in 1 mega-pixel CMOS tiltable camera for video calling with privacy wheel
  • 0” (1280×720) capacitive 5-point touch screen HD TFT LCD
  • 6-way audio conferencing & 3-way 720p 30fps HD video conferencing capability
  • Dual-switched auto-sensing 10/100/1000Mbps network ports
  • Integrated dual-band Wi-Fi (2.4GHz & 5GHz)
  • Built-in PoE/PoE+ for power and network connections
  • Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets
  • 16 SIP lines with up to 16 SIP accounts
  • Dual-mic HD speakerphone with noise reduction, advanced echo cancellation & excellent doubletalk performance
  • 4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash
  • HDMI-out, USB, headset jack, EHS

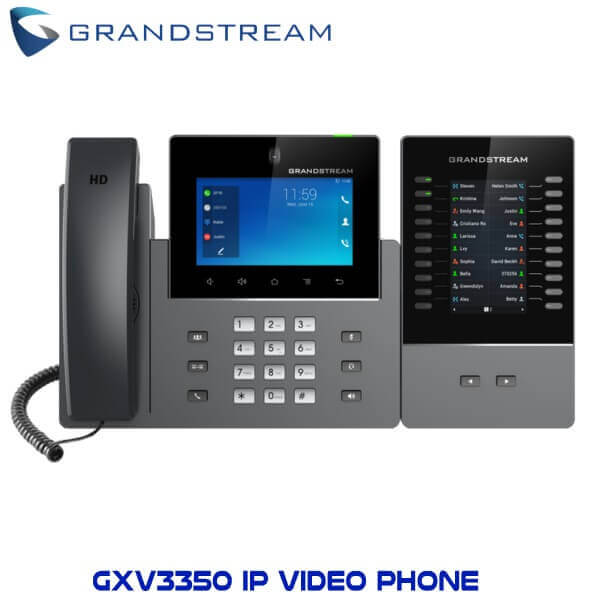

  • Compatible with GBX20 Extension Module.
  • Clear Graphic Display
    • The Grandstream GXV3350 IP Video Phone Ghana is equipped with a 5.0″ 1280×720 capacitive touch screen which offers its user an enhanced visual clarity as well as quick access to details.
  • HD Audio
    • The Grandstream GXV3350 IP Video Phone Ghana comes with an integrated speakerphone that supports wideband audio. The speakerphone has dual built-in microphones which use a number of advanced noise suppression technologies such as Acoustic Echo Cancellation (AEC) and Voice Activity Detection (VAD) To deliver crystal clear audio during the conference.
  • Conferencing Capabilities
    • The Grandstream GXV3350 IP Video phone Ghana supports 6-way HD audio conferencing and 3-way video conferences at a high resolution of 720p at 30 frames per second. This enables you to seamlessly connect and collaborate with colleagues from different geographical locations. It is a cost-effective means of communication which helps in saving time.
  • Built-In Bluetooth Connectivity
    • The Grandstream GXV3350 IP Video Phone Ghana has an integrated Bluetooth 4.2 + EDR connectivity for easy pairing with Bluetooth speakers/ microphones, headsets, and keyboards so as to facilitate smooth data exchange.
  • Clear Video Calls
    • The Grandstream GXV3350 IP Video Phone Ghana is equipped with a tiltable 1 Megapixel CMOS camera which boasts of a privacy shutter to guarantee you maximum safety and privacy. The camera delivers crystal clear images at an HD resolution of 720p at 30 frames per second.
  • Multi-Language User Interface
    • The Grandstream GXV3350 IP Video Phone Ghana is configured to support a number of different languages including English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more.
  • Supports Power over Ethernet
    • Grandstream GXV3350 IP Video Phone Ghana is equipped with 2 Auto–sensing Gigabit Ethernet ports with integrated Power over Ethernet(PoE) – (IEEE 802.3). It is therefore a highly economical device that consumes low power energy. It has a Universal Power Supply of Input:100-240VAC 50-60Hz; and Output:12VDC,2A (24W), proving to be a Power and Green Energy Efficient device.
  • Integrated Wi-Fi Connectivity
    • The Grandstream GXV3350 IP Video Phone Ghana comes with a built-in dual-band Wi-Fi 802.11 a/b/g/n/ac which provides a fast network signal for smooth conference calls over the internet at speeds of 2.4GHz and 5GHz.
  • Headset Compatibility
    • The Grandstream GXV3350 IP Video Phone Ghana is equipped with an auxiliary port that connects to an RJ9 headset jack allowing for EHS with Plantronics headset. The headsets allow the user to enjoy maximum mobility in the office.
  • Multi-Platform Compatibility
    • The Grandstream GXV3350 IP Video Phone Ghana is based on SIP and is therefore compatible with many 3rd party platforms including Skype, Google Hangouts, Skype for Business, etc. API/SDK is also available for advanced custom application development.

Grandstream GXV3350 – Technical Specifications

Protocols/Standards

  • SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

  • Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Bluetooth

  • Yes, integrated Bluetooth 4.2 + EDR

Wi-Fi

  • Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n

Graphic Display

  • 0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD

Camera

  • Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps

Auxiliary Ports

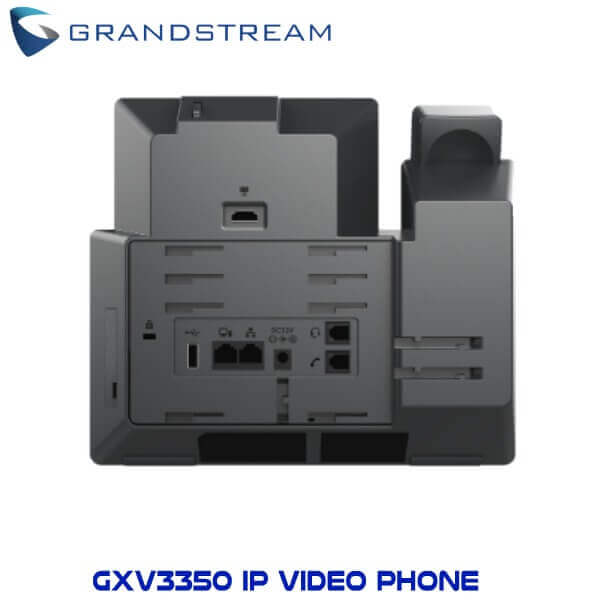

  • RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps)

Feature Keys

  • 11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU, and BACK

Voice Codecs and Capabilities

  • Wide-band Opus, wide-band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities

  • 264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, autofocus and auto exposure

Telephony Features

  • Hold,
  • Transfer
  • Forward (unconditional/no-answer/busy),
  • Call park/pickup, 6-way audio
  • Conference(including the host)
  • Shared-call-appearance (SCA) / bridged-line-appearance (BLA)
  • Programmable key
  • Downloadable contacts (XML, LDAP, up to 1000 items)
  • Call record(local and server)
  • Call log (up to 1000 records)
  • Call waiting
  • Auto answer
  • XML customization of screen
  • Click-to-dial
  • Flexible dial plan
  • Hot desking
  • Personalized music ringtones and music on hold
  • Server redundancy & fail-over

Sample Applications

  • Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Voicemail, Calculator, Clock, Recorder, GS Market, etc.
  • Supports third-party Android apps
  • API/SDK available for advanced custom application development

Android

  • Runs Android 7.0

Applications Deployment

  • Supports Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control

HD Audio

  • Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand

  • Yes, base stand with three adjustable levels

QoS

  • Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

  • User and administrator level passwords, MD5 and MD5-sess based authentication, 256bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

  • English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning

  • Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using R-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

  • Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

Temperature and Humidity

  • Operation: 0°C to 40°C, Storage: -10°C to 60°C,
  • Humidity: 10% to 90% Non-condensing

Package Content

  • GXV3350 phone, handset with cord, base stand, universal power supply, network cable, quick installation guide, GPL license
