Yealink MeetingEye800 Ghana



Yealink MeetingEye800 Ghana

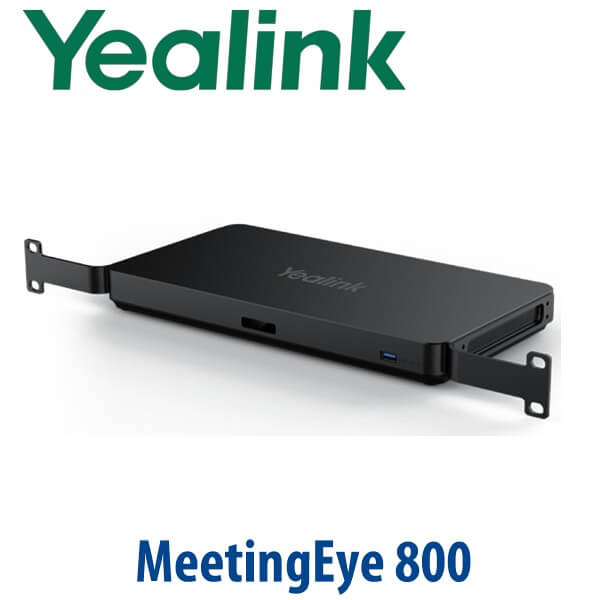

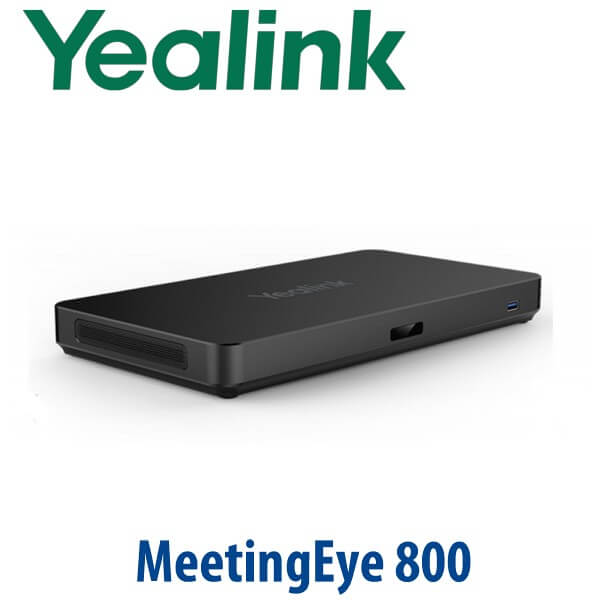

Yealink MeetingEye800 Ghana is a video conferencing endpoint designed by Yealink for large conference rooms Supporting dual 4K video calling and content sharing, bringing ultra-HD to your conferences.

Description

Yealink MeetingEye800 Video Conferencing Endpoint Ghana

Yealink MeetingEye800 Ghana is a video conferencing endpoint designed by Yealink for large conference rooms Supporting dual 4K video calling and content sharing, bringing ultra-HD to your conferences. The Yealink MeetingEye800 Ghana supports three screens to display different pictures at the same time, presenting rich information. Flexible deployment of cameras can meet multi-camera needs. Yealink MeetingEye800 adopts a detachable design and is equipped with Yealink’s professional audio and video equipment. It is easy to deploy and supports touch panel and remote control provided by Yealink. This convenient and efficient product is an ideal choice for large conference rooms.

Features

4K dual stream, bringing ultra-HD audio and video experience

Yealink MeetingEye800 Ghana supports up to 4K portraits and 4K content pictures during video conferencing, which can avoid 30% video packet loss and prevent blurry display; The combination of multiple cascaded array microphones and conference speakers provides a professional audio-video conferencing experience.

Multiple cameras to meet diverse needs

Yealink MeetingEye800 Ghana can connect up to nine cameras to meet the needs of multiple views for large meetings. Yealink cameras can be connected to the host through a POE switch. MeetingEye800 features three VCH ports. The host can automatically recognize and add cameras. Users can switch between diffrent camera layouts and control the cradle head through the touch panel or the central control device.

Three-screen display to enable free display of pictures

Yealink MeetingEye800 Ghana provides three HDMI outputs, all of which support 4K display. Three screens can present different pictures at the same time, displaying rich content. Pictures can be freely enlarged on each screen without missing any key information.

Separate Design, Minimalist Deployment

Using a separate design, Yealink MeetingEye800 Ghana allows you to connect different kinds of cameras or audio devices to meet different needs in a large meeting room. Its VCH-interface is able to convey not only the data but also the power needed, realizing using one cable to connect MeetingEye800 and its accessories, eliminating the cables between the TV and the desktop areas. This dramatically decreases the deployment time and cost

Specifications

Package includes :

  • MeetingEye800 Codec
  • VCR11 Remote Control
  • Wall Bracket
  • Mounting ears
  • Optional
    • UVC84 Video Conferencing Camera
    • CTP20/CTP18 Collaboration Touch Panel
    • VCM34 Video Conferencing Microphone Array
    • MSpeaker II Video Conferencing Soundbar
    • WPP20 Wireless Presentation Pod
    • VCH51Sharing Box

UHD Camera UVC84 (Optional)

  • 8M mega-pixels, maximum 3840 x 2160 •

Maximum 60 fps

  • 36x Hybrid Zoom (12x optical, 3x digital)
  • Camera angle :
    • Diagonal field of view : 80°
    • Horizontal field of view : 73°
    • Vertical field of view : 45°
    • Horizontal Rotation Angle : ±100°
    • Vertically Rotation Angle : + 40°/-90°

CTP20 Collaboration Touch Panel (Optional)

  • Display
    • Screen : 13.3-inch IPS FHD capacitive touch screen
    • Resolution : 1920 x 1080
    • Touch : 10 points multi-touch
  • 1 x Active Pen with 1024 pressure levels
  • Adjustable Screen Angle (15°~70°)
  • Support wired/wireless/LAN multiple connection methods

VCM34 Video Conferencing Microphone Array (Optional)

  • Built-in 3-microphone array
  • 20ft (6m) and 360° voice pickup range
  • Up to 4 units can be cascaded

VCM38 Ceiling Microphone Array (Optional)

  • Built-in 8 microphone arrays
  • 360°-degree voice pickup, covering 40 ㎡ area
  • Up to 8 units can be cascaded

Stereo speakers

  • Frequency respond : 100Hz-20KHz
  • RMS : 10W



Datasheet Download
