Yealink MVC640 Microsoft Teams Room System Ghana



Yealink MVC640 Microsoft Teams Room System Ghana

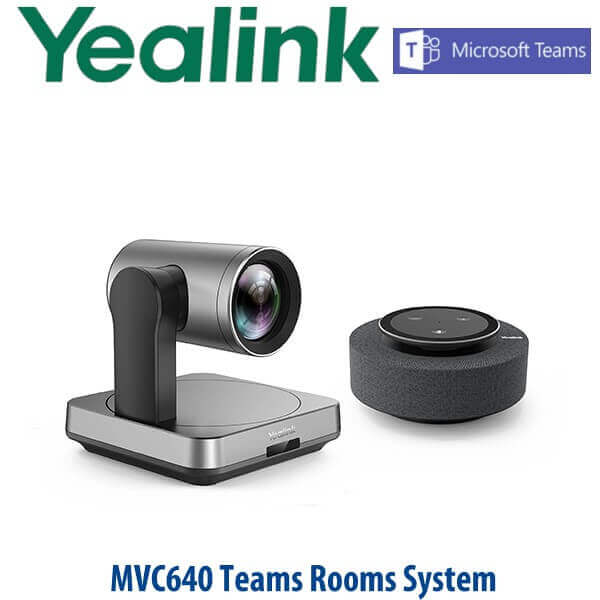

The Yealink MVC series are native and easy-to-use video conferencing solutions that are designed for Microsoft Teams Room. The Yealink MVC640 Microsoft Teams Room System Ghana is an all-in-one video bundle solution that is specifically designed for use in medium-sized rooms. It comes with an MSpeech Speakerphone and a 4K UVC84 USB PTZ camera which is equipped with an optical zoom of up to 12x, thus guaranteeing you crystal clear images and superb audio quality.



Description

Yealink MVC640 Microsoft Teams Room System Accra, Ghana

The Yealink MVC640 Microsoft Teams Room System Ghana features an MSpeech Speakerphone and a 4K UVC84 USB PTZ camera which is equipped with an optical zoom of up to 12x. The Yealink MVC640 Microsoft Teams Room System Ghana is designed to offer an easy deployment that requires zero learning curve by the user. You do not need to worry about your privacy since the Yealink MVC640 Microsoft Teams Room solution features an auto – privacy protection design that safeguards the privacy of your meetings. You can easily manage, monitor, configure and update all the Yealink audio and video devices and parameters on the Yealink Device Management Platform/ Cloud Service which is embedded in the Yealink MVC640 Microsoft Teams Room System Ghana.

Yealink Mvc640 Microsoft Teams Video Conferencing System Accra

Yealink Mvc640 Microsoft Teams Video Conferencing System Accra

Yealink MVC640 Teams Room Features

  • Crystal Clear Sounds
    • The Yealink MVC640 Microsoft Teams Room System Ghana comes with an MSpeech speakerphone which uses a 3 MEMS microphone array to deliver an Ultra High Definition voice pickup and a 7 MEMS microphone array to achieve voice recognition which entails voice transcription, real-time translation, and Cortana voice assistant. An embedded 4W HD speaker picks up voices at 360° within a range of 20ft(6meters).  The speakerphone also uses Full Duplex technology as well as the Acoustic Echo Cancelation(AEC) technology to deliver crystal clear sounds, ensuring that everyone can clearly hear and be heard.
  • Yealink Noise Proof Technology
    • Yealink has developed its Noise Proof Technology to eliminate background noise and provides noise-free services even in a busy environment. Its Active Speaker feature helps you to recognize who is speaking during the meeting, therefore easily differentiating the voices of speakers. The systems automatically mute the microphone when no human voice is detected, and intelligently reduce background noise to a minimum when you are speaking.
  • Native Microsoft Teams Room – tailored user interface
    • The Yealink MVC640 Microsoft Teams Room System Ghana comes ready with a Native Microsoft Teams Room – tailored user interface which offers a quick and easy meeting join. The System is equipped with an intuitive MTouch II touch panel which is designed to be multi-purpose to allow its user to carry out different functions such as camera control, call control, content sharing, and many other tasks ideal for a smooth conference session. The MTouch II touch panel has an integrated Human Motion Sensor that enables the Yealink MVC640 Microsoft Teams Room conference System to automatically “wake up” so you can start your conference right away.
  • Wire and Wireless Content Sharing in Real-Time
    • Yealink MVC640 Microsoft Teams Room System Ghana offers its users an easy wireless content sharing solution that provides maximum efficiency, courtesy of a WPP20 device that can easily be plugged into the system to initiate the content sharing process. The WPP20 is equipped with a high resolution of 1080p at 30 frames per second and does not interfere with the content’s original format. A user can also achieve wired content sharing by connecting to the integrated USB – C port or the HDMI port.
  • Simple Deployment & Easy User Interface
    • The Yealink MVC640 Microsoft Teams Room System Ghana offers an easy user interface that requires no technical expertise of its user. It also offers a fast deployment which is quite time-saving. Using the VCH port, the MCore is designed to enhance video conference experiences since deployment can be extended. Many functions such as data transmission and power supply are merged into one single cable, thus eliminating heavy wiring systems with cables running across tables. This results in a cleaner and a neater workspace. The most ideal deployment can be realized depending on the layout of the meeting room. A single CAT5e cable is enough to connect the TV area and the conference table area. To complete data transmission and power supply, a user does not require an extra power supply or extension cable, thus cutting down on operational expenses.
  • Easy Remote Management of Devices
    • The Yealink MVC640 Microsoft Teams Room System Ghana uses Yealink Device Management Platform/ Cloud Service to enable its user to simply manage, monitor, configure, update, and diagnose all Yealink audio and video devices peripherals on the system.
Yealink Mvc640 Microsoft Teams Video Conferencing System Ghana

Yealink Mvc640 Microsoft Teams Video Conferencing System Ghana

Yealink MVC640 -Technical Specifications

Preload Windows 10 IoT Enterprise ×64

Windows 10 IoT Enterprise License

Microsoft Teams Rooms App, support Skype for Business on-premise /online and Teams meetings

Yealink RoomConnect

MCore Mini – PC 8th gen-Intel® QUAD – CORE i5

Memory: 8GB (2 × 4GB)

Storage: 128GB SSD

2 × HDMI video output with CEC supported

Bluetooth and Wi-Fi

1 × Yealink VCH port (RJ45), connect to MTouch II

4 × USB 3.0 Type – A

1 × 10/100/1000M Ethernet port

1 × Power port

1 × Security slot

Built-in cable management

MTouch II Panel 8-inch IPS Screen

1280 × 800 resolution

10-point capacitive touch screen

3.5mm headset jack

Human Motion Sensor

Angle adjustable bracket (28° ~50°)

1080p/30FPS FHD for sharing

Support wired and wireless content sharing

Built-in Wi-Fi AP for Yealink wireless presentation device

HDMI/ USB – C video input

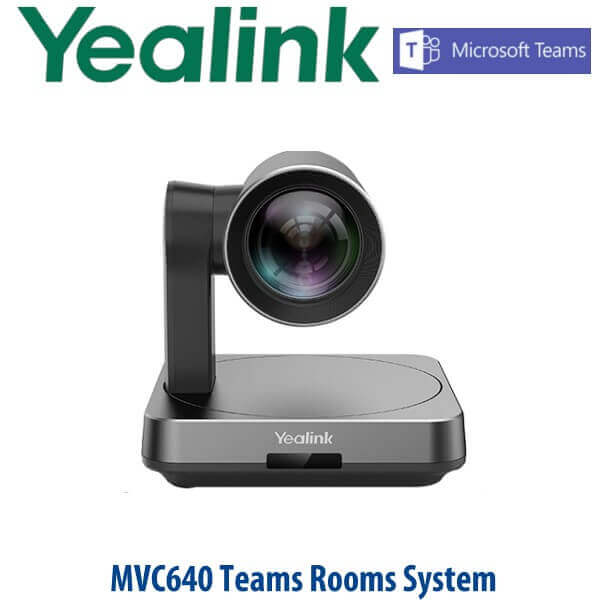

UVC84 USB PTZ Camera 12× optical zoom

4K camera

60 frame-rate

Field of view (diagonal): 80°

Auto-framing

Camera presets

Pan range: 200°

Tilt range: 130°

1 × Line In(3.5mm)

1 × Line Out(3.5mm)

1 × Yealink Microphone Port (RJ – 45)

1 × USB 2.0 Type – B

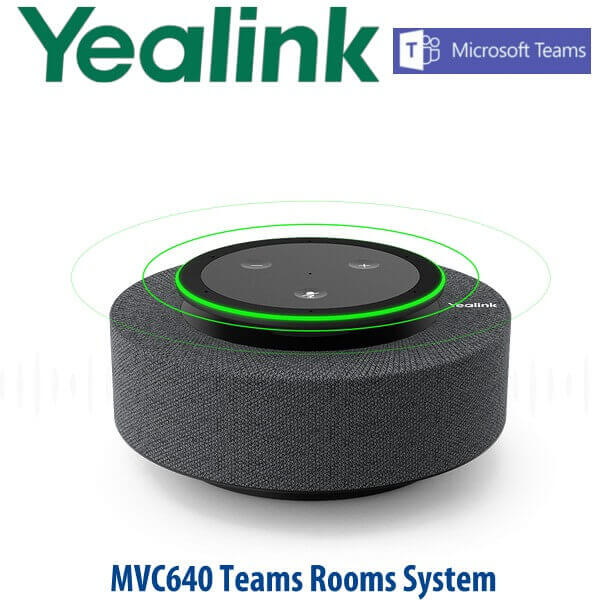

MSpeech smart USB speakerphone 3 MEMS microphone array for HD voice Pickup

7 MEMS microphone array for voice recognition*

●       Voice transcription

●       Real-time translation

●       Cortana voice assistant

4W HD speaker

360° 20ft(6m) voice pickup range

Full – Duplex technology

Acoustic Echo Cancelation(AEC)

*Voice recognition should be supported by Microsoft Teams Room Application

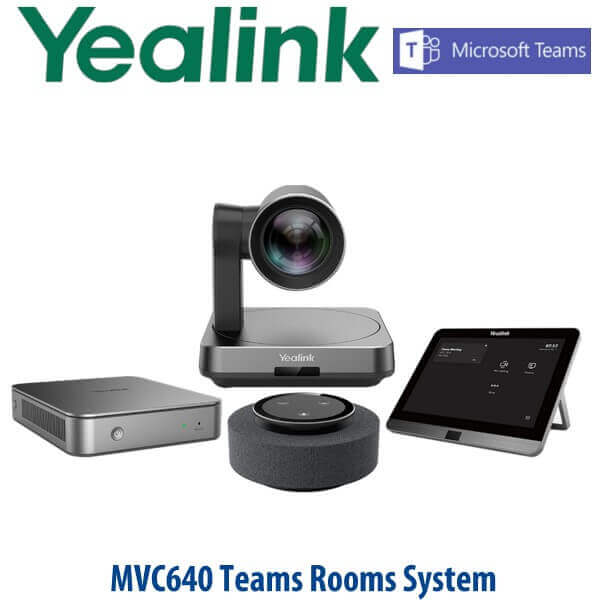

What’s in the Box

  • MCore mini-PC
  • MTouch II touch panel
  • UVC84 USB PTZ cameras
  • WPP20 wireless presentation pod.
  • MSpeech smart USB speakerphone

Package Features

  • W/CTN: 7.7kg
  • W/CTN: 8.4kg
  • Carton Measurement: 595mm x 393mm x 258mm

Datasheet Download
