Yealink MVC860 Ghana



Yealink-MVC860-Ghana

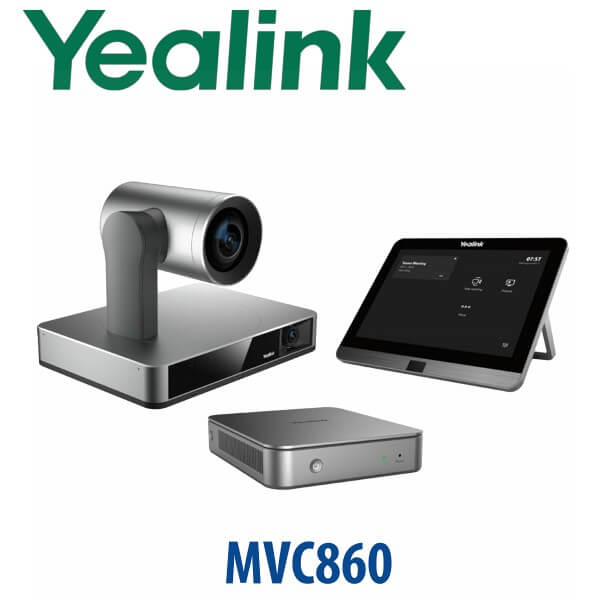

Yealink MVC860 Video Conferencing System Ghana is Microsoft Teams Certified video conferencing kit for a quality video conferencing experience in medium to large rooms. The bundles come with UVC86 Camera, MTouch II Touch Controller and MCore Mini PC.

Description

Yealink MVC860 Video Conferencing System Ghana

Yealink MVC860 Video Conferencing System Ghana is Microsoft Teams Certified video conferencing kit for a quality video conferencing experience in medium to large rooms. The All-in one package includes a UVC86 Camera, MTouch II Touch Controller and MCore Mini PC. For voice pickup, get a VCM34 Wired Microphone, VCM38 Ceiling Microphone or CPW90 Wireless Microphone (not included). For sound, connect one or two MSpeaker II Sound Bars (not included). Yealink MVC860 ghana simplifies the deployment of professional Teams video call equipment in your conference room by providing a flexible solution.

Yealink Mvc860 Auto Tracking System Accra

Yealink Mvc860 Auto Tracking System Accra

Yealink MVC860 Video Conferencing System Ghana is a powerful, dual-camera device that takes 4K Ultra HD resolution video. An intelligent camera, UVC86 offers exceptionally fast and accurate automatic framing, speaker tracking and presenter tracking. Equipped with two cameras; one PTZ with 12x optical zoom and one panoramic Yealink MVC860 Video Conferencing System ensure excellent coverage of even large rooms with lossless zooming on faces to see expressions and gestures in lifelike detail. MTouch II is a dedicated touch controller that lets you manage your meetings, adjust the camera with simple touchscreen interface with familiar Microsoft Teams UI. Yealink MCore is a powerful mini PC with Intel Core i5 processor featuring dedicated computer to run the meeting software. It has the Microsoft Teams Rooms app preinstalled for easy connectivity.

Key Features

Smooth Video Conference Experience

Yealink MVC860 Video Conferencing System Ghana has tailored user interface that offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch II has a built-in Human Motion Sensor that the conference system can be automatically waken up and you can immediately start the conference.

Smooth tracking feature

Yealink UVC86 auto tracking camera allows for the auto-framing of all participants present at a meeting, speaker-tracking of the speaker talking at a meeting, and presenter-tracking of the presenter at a meeting, freeing your hands and focusing on the meeting itself. Besides, with the Yealink camera control plug-in and camera presets supported, the mechanical pan, tilt and zoom can be easily done quietly in one step. Empowered with 12x optical zoom, UVC86 supports 4K video calls that conducts business to capture everyone in the meeting room clearly. the UVC86 delivers face to face, intelligent and smooth video experience by precisely reproducing every moment and detail, always showing the best picture of your room.

Multiple audio solution

Yealink MVC860 Video Conferencing System users can select VCM34/VCM38/CPW90 array microphones to work with MVC860. Also, Yealink Noise Proof technology effectively eliminates background distractions and noises that you can enjoy a crystal-clear voice even in a noisy environment.

Flexible Content sharing

The unique wireless content sharing solution provides participants with maximum flexibility, that a one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.

 Simple to deploy, easy to use

With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensure the stability of the wire connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.

 Remote Management

The Yealink MVC860 Video Conferencing System Ghana supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.

Yealink Mvc860 Accra

Yealink Mvc860 Accra

Technical Specifications

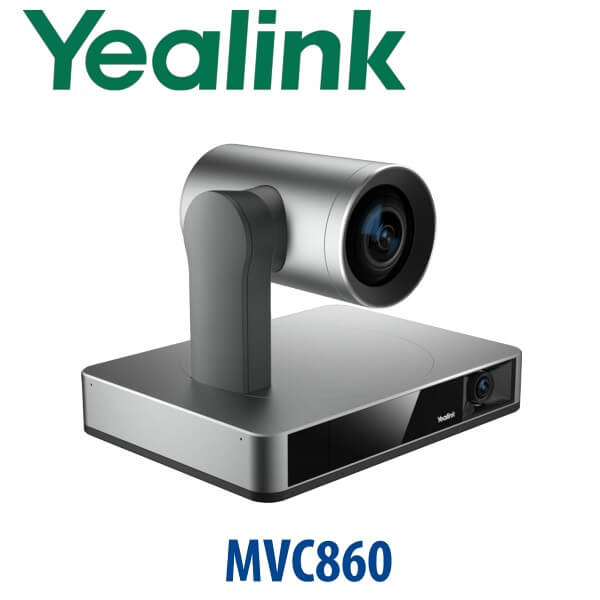

Yealink UVC86 Camera:

  • PTZ Camera:
    • Sensor: 4K Ultra HD
    • Field of View: 90° D x 81° H x 50° V
    • Pan: +100° to -100°
    • Tilt: +40° to -90°
    • Zoom: 12x optical, 1.7x digital
  • Panoramic Camera:
    • Sensor: 4K Ultra HD
    • Field of View: 120° D x 110° H x 78° V
    • Manual Tilt: +9° to -9°
  • Physical Connectors:
    • HDMI: 1x out
    • USB: 1x USB-B 3.0, 1x USB-A 2.0
    • Microphone: 1x RJ45
Yealink Mvc860 Auto Tracking System Ghana

Yealink Mvc860 Auto Tracking System Ghana

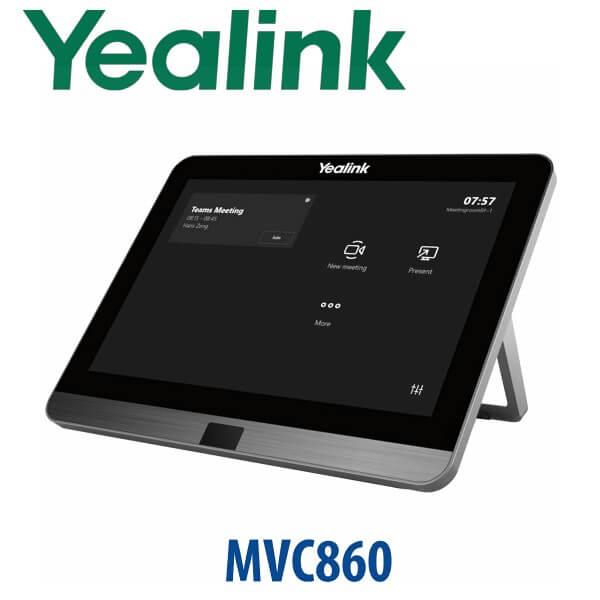

MTouch II Touch Controller:

  • Display: 8 in (1280 x 800 px) capacitive touchscreen
  • Wi-Fi: yes

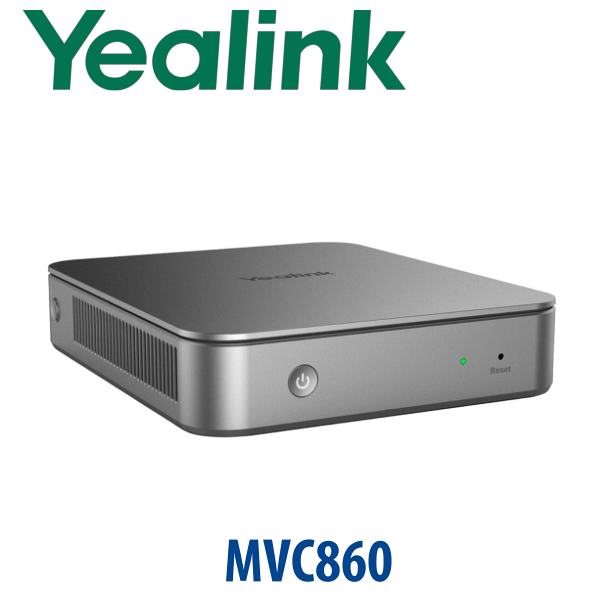

MCore Mini PC:

  • CPU: Intel Quad-Core i5
  • RAM: 8 GB (2 x 4 GB)
  • SSD: 128 GB
  • Wi-Fi: yes
  • Bluetooth: yes
  • Physical Connectors:
    • HDMI: 2x video output
    • USB: 4x USB-A 3.0
    • Ethernet: 1x Gigabit
    • RJ45: 1x for MTouch II
    • Power: 1x power port
    • Security: 1x security lock slot
Yealink Mvc860 Presenter Tracking System Kumasi

Yealink Mvc860 Presenter Tracking System Kumasi

System Package Contents:

Yealink UVC86 Camera:

  • UVC86 Camera
  • VCR20 Remote Control and Batteries
  • Power Adapter
  • Wall Bracket and Accessories
  • 7 m USB Cable
  • 5 m Ethernet Cable
  • 5x Cable Ties
  • Quick Start Guide
Yealink Mvc860 Presenter Tracking System Ghana

Yealink Mvc860 Presenter Tracking System Ghana

Yealink MTouch II Touch Controller:

  • MTouch II Touch Controller
  • 5 m Ethernet Cable
  • USB-C Cable with HDMI Adapter
  • Screwdriver
  • Quick Start Guide
Yealink Mvc860 Auto Tracking System Kumasi

Yealink Mvc860 Auto Tracking System Kumasi

Yealink MCore Mini PC:

  • MCore Mini PC
  • 2x 1.8 HDMI Cables
  • Bracket
  • Power Adapter
  • Velcro
  • Expansion Screws and Machine Screws
  • Screwdriver
  • Quick Start Guide

Datasheet Download
