The Grandstream GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses.

Description

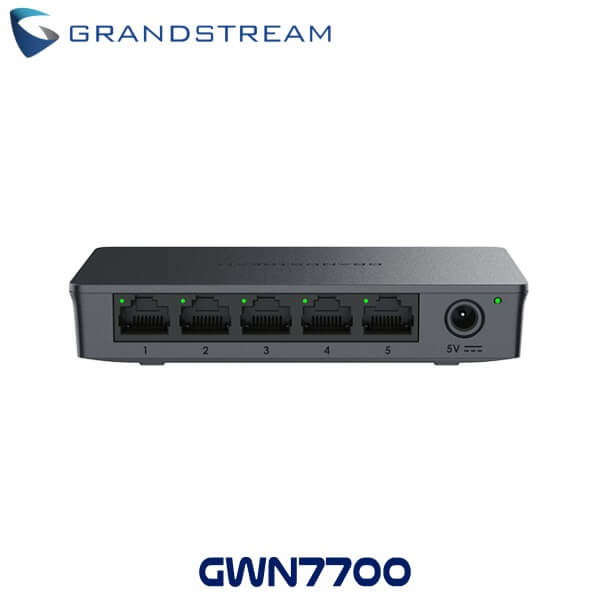

Grandstream GWN7700 Network Switch Ghana

The Grandstream GWN7700 Ghana series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the Grandstream GWN7700 Ghana to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.

Features

  • 5/8 Gigabit Ethernet ports
  • 802.3 af/at compliant with up to 30W on each port, PoE models only
  • Supports deployment in IPv6 and IPv4 networks
  • Green technology reduces power consumption
  • Support for long cable connections
  • LED Indicators; Per Port : Link/Activity/Speed, Per Device : Power
  • Auto MDI/MDIX crossover for all ports
  • The GWN7700 series supports up to 8 Gigabit ports depending on the model, supporting up to 16Gbps switching capacity and 9KB Jumbo Frame capabilities
  • All GWN7700 devices support Auto-Negotiation and Auto MDI/ MDIX, which are two features that help ensure the network and all devices within it are operating at high transmission rates

Technical Specs

  • Model : GWN7700
  • Box Contents :
    • 1x GWN7700 Switch
    • 1x Power Adapter
    • 1x QIG
  • Gigabit Ports : 5
  • PoE Ports : N/A
  • Enclosure : Plastic
  • Mounting : Desktop/ Wall-Mount
  • Standards and Protocols :
    • IEEE 802.3i
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3x
    • IEEE 802.1p
    • IEEE 802.3af
    • IEEE 802.3at
  • Port Feature :
    • 5× 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :
    • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • PoE Configuration :   N/A
  • LED Indicators :
    • Per port : Link/Activity Green
    • Per device : Power Green
  • Mac Address Table : 2K
  • Switching Capacity : 10Gbps
  • Jumbo Frame : 9KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • 802.1p/DSCP QoS
    • IGMP :
      • IGMP Fast-Leave
      • IGMP Snoop
      • Route Port Autolearn
      • Query Refresh Member Port
  • Power Adapter :
    • External 5V/0.6A
  • Max Power Consumption by Base System :
    • 1.7W
  • Environmental :
    • Operating Temperature : 0 to 40 °C (32 to 104 °F)
    • Storage Temperature : -40 to 70 °C (-40 to 158 °F)
    • Operating Humidity : 10% to 90% Non-condensing
    • Storage Humidity : 5% to 90% Non-condensing
  • Compliance :
    • FCC, CE, RCM, IC, UKCA
