Description

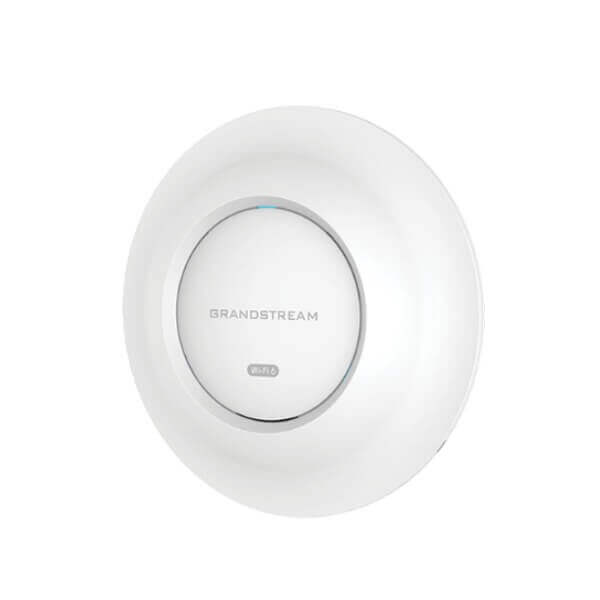

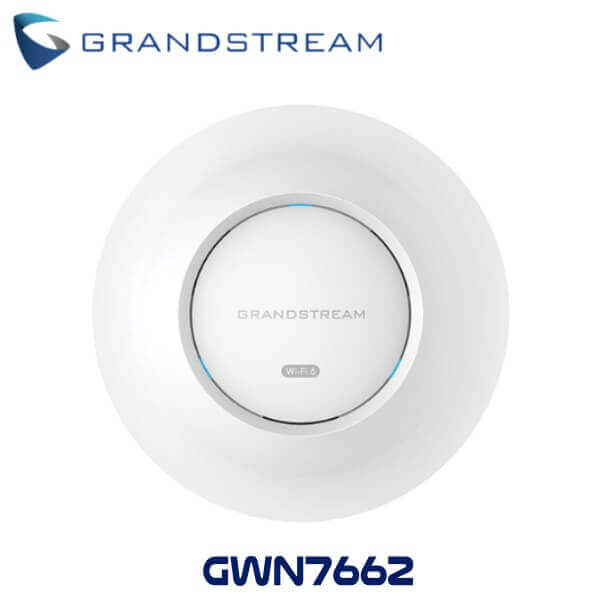

Grandstream GWN7662 Access Point Ghana

The Grandstream GWN7662 Ghana is the ideal Wi-Fi 6 access point for small businesses, home offices, retail stores, restaurants, hotels and educational institutions. It offers the latest technology in both 5G and 2.G bands for a strong and reliable WiFi connection. Powerful antenna design provides maximum network performance and extended WiFi coverage. Wi-Fi 6 is designed for busy environments with many users and devices, delivering fast and consistent Wi-Fi speeds. Grandstream GWN7662 Ghana’s uncontrolled distributed network design simplifies installation and management. The console is integrated with the product’s web UI for a seamless experience. Additionally, Grandstream GWN7662 Ghana works with GWN.Cloud and GWN Manager, Grandstream’s free local Wi-Fi network management platform. This access point is ideal for Voice over Wi-Fi deployments and easily connects to Grandstream Wi-Fi enabled IP phones. It also supports advanced QoS, real-time, low-latency applications, mesh networking, captive gateways, and 256 concurrent clients per access point. With two Gigabit network ports and PoE/PoE support, the Grandstream GWN7662 Ghana is ideal for medium-sized wireless networks with moderate numbers of users.

Features

5.38 Gbps wireless throughput and 3.5 Gigabit wireline ports
5GHz 4×4 : 4 MU-MIMO with DL/UL OFDMA technology
Up to 175-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

Technical Specifications

GENERAL INFO :

Model : GWN7662
Box Contents :
- GWN7662 indoor Wi-Fi 6 Wireless AP
- Mounting Kits
- Quick Installation Guide

WI-FI :

Wi-Fi Standards :
- IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
Antennas :
- 6 single frequency internal antennas
- 2.4GHz, gain 3.5dBi
- 5GHz, gain 4.5dBiWi-Fi Data Rates :
- 5G :
  - IEEE802.11ax : 8.6Mbps to 4804Mbps
  - IEEE 802.11ac : 6.5 Mbps to 3464 Mbps
  - IEEE 802.11n : 6.5Mbps to 600Mbps
  - IEEE 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 2.4G :
  - IEEE 802.11ax : 8.6Mbps to 573.5Mbps
  - IEEE 802.11n : 6.5Mbps to 300Mbps
  - IEEE 802.11b : 1, 2, 5.5, 11 Mbps
  - IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands :
- 2.4GHz Radio : 2412 – 2484 MHz(WIFI)
- 5GHz Radio : 5180 – 5825 MHz
Channel Bandwidth :
- 2.4G : 20 and 40 MHz
- 5G : 20, 40 , 80 and 160MHz
Wi-Fi and System Security :
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MIMO :
- 2×2 : 2 2.4GHz (MU-MIMO)
- 4×4 : 4 5GHz (MU-MIMO)
Coverage Range :
- Up to 175 meters
