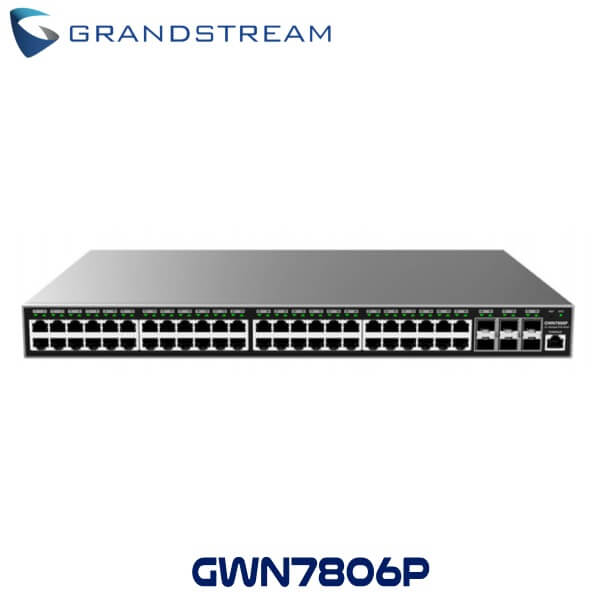

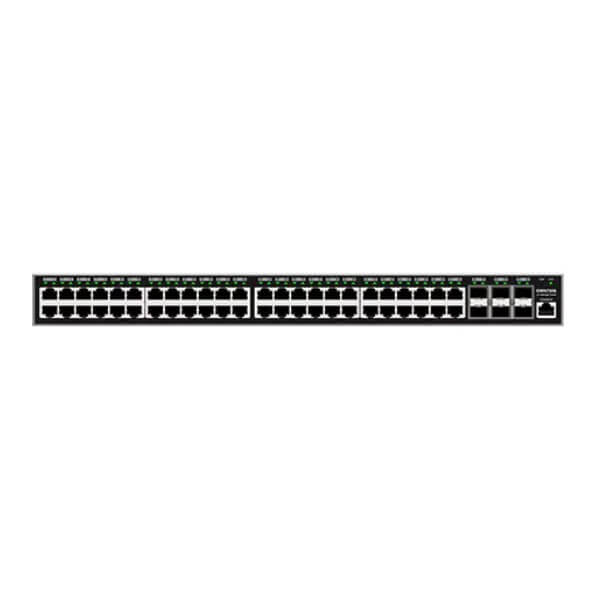

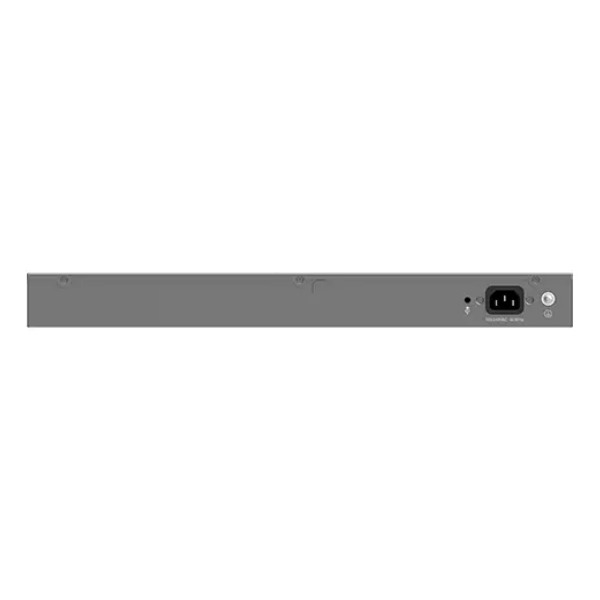

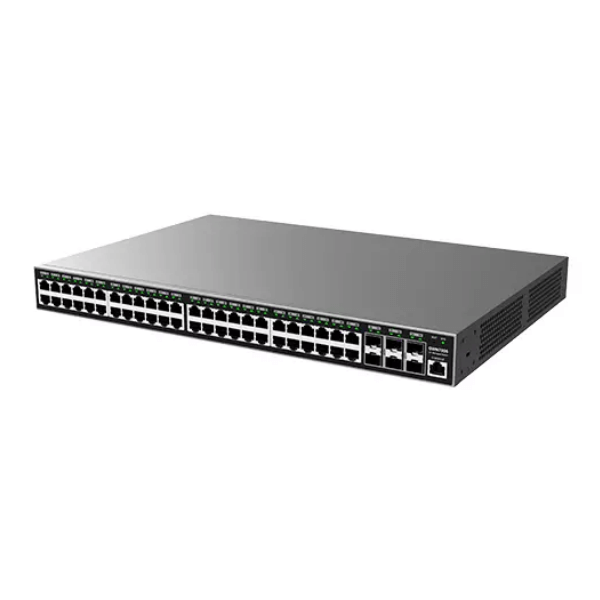

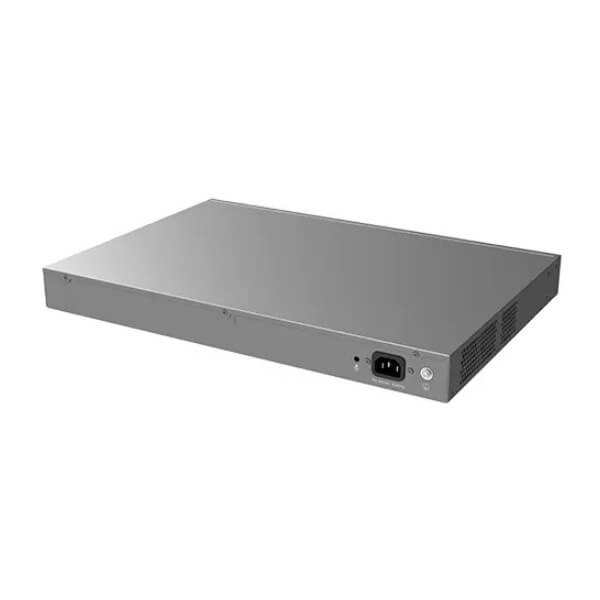

Grandstream GWN7806P Network Switch Ghana

Introducing the Grandstream GWN7806P Ghana, an inventive Layer 2+ network switch that features a setup of 48 RJ45 Gigabit Ethernet ports, each bolstered with Power Over Ethernet (POE) functionality. This exceptional attribute streamlines the procedure of connecting and energizing a diverse range of devices, spanning from VOIP phones to IP cameras, all through a singular switch unit. Additionally, it incorporates six SFP+ ports specially designed for swift fiber connections. Functioning as a POE switch, it boasts a substantial power reserve of 400 W, enabling the transmission of up to 30 W of power via Ethernet cables to the linked devices. The integration of intelligent power control ensures precise power dispersion tailored to the specific requirements of every connected endpoint. This economically efficient switch serves as a straightforward yet robust solution for establishing a high-quality enterprise network.

The Grandstream GWN7806P Ghana operates as a managed network switch, proficiently alleviating network congestion by delivering Gigabit Ethernet connectivity to all interconnected devices. With a noteworthy total switching capacity of 216 Gbps, it assures uninterrupted data flow. Primarily designed to cater to small-to-medium businesses, the switch introduces advanced functionalities including VLAN and QoS capabilities, thus facilitating the division of traffic and optimizing overall network performance. The assimilation of various security features, such as IP Source Guard and DoS protection, actively safeguards the network against malicious entities. Moreover, the Grandstream GWN7806P Ghana presents stacking capabilities, allowing for the stacking of up to 16 compatible switches, thereby enhancing scalability and flexibility.

Grandstream GWN7806P Features

• 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and  on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
• Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices

Product Highlights

Powerful Processing Capabilities

Grandstream GWN7806P Ghana Layer 2+ managed network switch comes with powerful processing capabilities to ensure a high-performance backbone for any network.

• Unicast routing via ACL for data communication routing between different network segments. Supports DHCP Server and Relay to assign IP addresses to hosts within the network.
• GVRP for VLAN dynamic distribution, registration, and attribute propagation, to reduce the amount of manual configuration and ensure the correctness of configuration.
• QoS, including Port Priority, Priority Mapping, Queue Scheduling, Traffic Shaping, and Rate Limit.
• ACL is used to recognize the filtering of data packets by configuring matching rules, processing operations and time schedule, and providing flexible security access control policies.

Specifications

Network Protocol

IPv4, IPv6, IEEE 802.3, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

Gigabit Ethernet Ports

48

Gigabit SFP Ports

6

PoE Ports (PoE Models Only)

48

Total PoE Output Power (PoE Models Only)

400W (30W per Port)

Total Non- Blocking Throughput

108Gbps

Switching Capability

216Gbps

Forwarding Rate

160.704Mpps

Switching

• 32K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RSTP/MSTP Routing Static

Security

• User hierarchical management and password protection, HTTPS, SSH,Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection,
• DHCP Snooping
• Loop protection including BPDU protection, root protection(pending), and loopback protection(pending)
• Kensington Security Slot (Kensington Lock) support.
