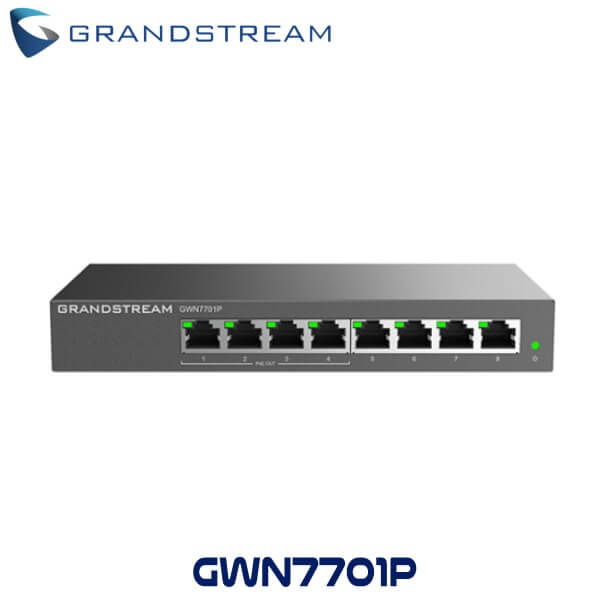

Grandstream GWN7701P Ghana



Grandstream GWN7701P Ghana

Grandstream GWN7701P Ghana requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables.

Description

Grandstream GWN7701P Network Switch Ghana

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. Grandstream GWN7701P Ghana requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.

Features

  • Layer 2 Unmanaged Switch
  • 8 x GigE
  • Plastic Case
  • Unlink clear FDB Feature
  • Green technology reduces power consumption
  • LED Indicators :
    • Per port : Link/Activity/Speed
    • Per device : Power
  • Auto MDI/MDIX crossover for all ports
  • Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • QoS – Supports Default Strict Priority when present

Technical Specs

  • Model : GWN7701
  • Box Contents :
    • 1x GWN7701 Switch
    • 1x Power Adapter
    • 1x QIG
  • Gigabit Ports : 8
  • PoE Ports : N/A
  • Enclosure : Plastic
  • Mounting : Desktop/ Wall-Mount
  • Standards and Protocols :
    • IEEE 802.3i
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3x
    • IEEE 802.1p
    • IEEE 802.3af
    • IEEE 802.3at
  • Port Feature :
    • 8× 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :
    • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • PoE Configuration :   N/A
  • LED Indicators :
    • Per port : Link/Activity Green
    • Per device : Power Green
  • Mac Address Table : 8K
  • Switching Capacity : 16Gbps
  • Jumbo Frame : 9KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • 802.1p/DSCP QoS
    • Unlink clear FDB Feature
    • IGMP :
      • IGMP Fast-Leave
      • IGMP Snoop
      • Route Port Autolearn
      • Query Refresh Member Port
  • Power Adapter :
    • External 5V/0.6A
  • Max Power Consumption by Base System :
    • 2.7W
  • Environmental :
    • Operating Temperature : 0 to 40 °C (32 to 104 °F)
    • Storage Temperature : -40 to 70 °C (-40 to 158 °F)
    • Operating Humidity : 10% to 90% Non-condensing
    • Storage Humidity : 5% to 90% Non-condensing
  • Compliance :
    • FCC, CE, RCM, IC, UKCA
