The plug-and-play GWN7701PA switches are the ideal unmanaged network switches for home offices and small-to medium businesses.

Description

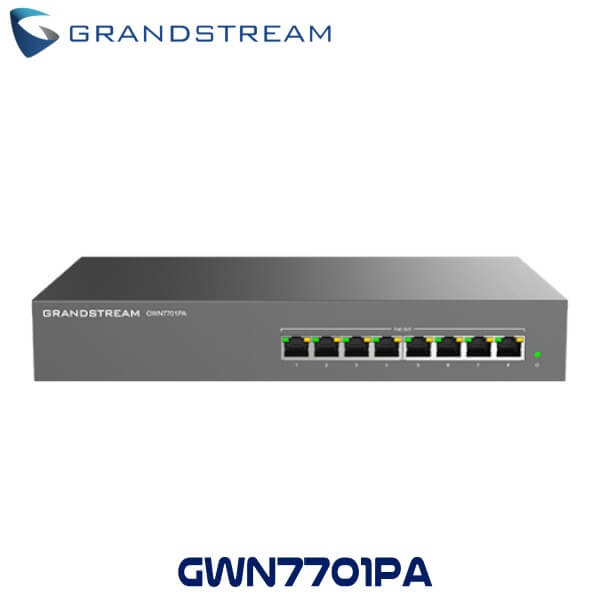

Grandstream GWN7701PA Network Switch Ghana

The Grandstream GWN7701PA Ghana is an unmanaged network switch that provides a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the Grandstream GWN7701PA Ghana to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.

Features

  • 8 x GigE (8 x PoE)
  • Metal Case
  • Unlink clear FDB Feature
  • 802.3 af/at compliant Up to 30W on each port
  • Green technology reduces power consumption
  • LED Indicators :
    • Per port : Link/Activity/Speed
    • Per device : Power
  • Auto MDI/MDIX crossover for all ports
  • Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • QoS – Supports Default Strict Priority when present

Technical Specs

  • Model : GWN7701PA
  • Box Contents :
    • 1x GWN7701PA Switch
    • 1x 1.2m(10A) AC Cable
    • 1x Rack-mounting
    • Standard Brackets
    • 4x Rubber Feet
    • 2x Lug Ear
  • Gigabit Ports : 8
  • PoE Ports : 8
  • Enclosure : Metal
  • Mounting : Desktop/ Wall-Mount/Rack-Mount
  • Standards and Protocols :
    • IEEE 802.3i
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3x
    • IEEE 802.1p
    • IEEE 802.3af
    • IEEE 802.3at
  • Port Feature :
    • 8× 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media :
    • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
  • PoE Configuration :
    • 1~8 Ports 802.3 af/at compliant
    • Up to 30W on Each Port, Total 145W Power Budget
    • Overload to cut off the lowest priority port.
    • Priority : Port 8 to Port 1
  • LED Indicators :
    • Per port : Link/Activity – Green
    • Per port : PoE output – Yellow
    • Per device : Power Green
  • Mac Address Table : 8K
  • Switching Capacity : 16Gbps
  • Jumbo Frame : 9KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • 802.1p/DSCP QoS
    • Unlink clear FDB Feature
    • IGMP :
      • IGMP Fast-Leave
      • IGMP Snoop
      • Route Port Autolearn
      • Query Refresh Member Port
  • Power Adapter :
    • Internal 110-240VAC, 50/60Hz,150W
  • Max Power Consumption by Base System :
    • 6.7W @220V/50Hz (excluding PoE output power)
  • Environmental :
    • Operating Temperature : 0 to 40 °C (32 to 104 °F)
    • Storage Temperature : -40 to 70 °C (-40 to 158 °F)
    • Operating Humidity : 10% to 90% Non-condensing
    • Storage Humidity : 5% to 90% Non-condensing
  • Compliance :
    • FCC, CE, RCM, IC, UKCA
