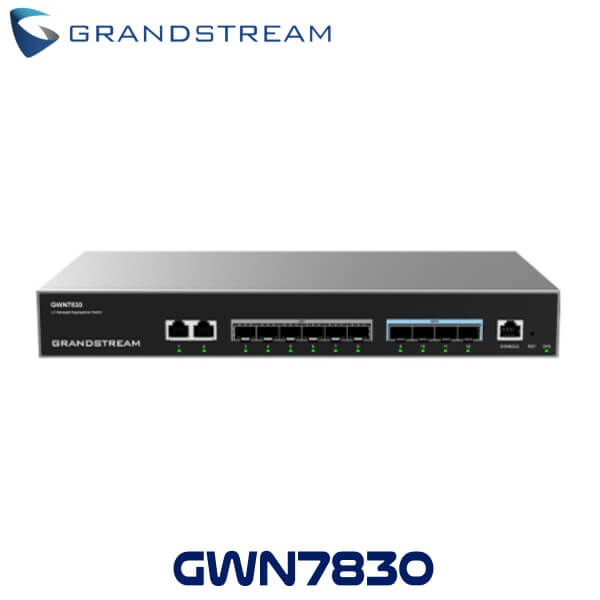

Grandstream GWN7830 Layer 3 Managed Network Switch Ghana

The Grandstream GWN7830 Ghana is a series of managed Layer 3 aggregation switches designed to help businesses establish secure, high-performance, and scalable networks. These networks are fully controllable and capable of handling large capacities. The GWN7830 Ghana offers advanced VLAN for flexible traffic division, sophisticated QoS to prioritize network traffic, IGMP/MLD Snooping for optimized network performance, and robust security features to fend off potential attacks. Users can manage these switches through the local Web interface and CLI. Moreover, the GWN7830 Ghana is compatible with GWN.Cloud and GWN Manager, Grandstream’s network management platforms for both cloud and on-premise solutions. With its comprehensive end-to-end quality of service, customizable security settings, and support for high network capacity, the Grandstream GWN7830 Ghana is an excellent choice for medium-to-large enterprises.

Grandstream GWN7830 Core Features

• 6 x SFP
• 4 x SFP+
• 2 x GigE
• Supports deployment in IPv6 and IPv4 networks.
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Additional Information

Technical Specifications

GENERAL INFO :

• Model :  GWN7830
• Box Contents :
  • 1x GWN7830 Switch
  • 1x 1.2m(10A) AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 2x Extended Rack-Mounting Kits
  • 8x Screws(KM 3*6)
  • 1x Quick Installation Guide

NETWORK PROTOCOL :

• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
  802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
• Gigabit Ethernet Ports :  2
• Gigabit SFP Ports :  6
• Gigabit SFP+ Ports :  4
  • Note :  Support DAC Cable and must be ≤ 5m
• Maximum no. of Supported Modules :
  • SM-1G :  6
  • MM-1G :  6
  • RJ45-1G :  3
  • SM-10G :  4
  • MM-10G :  4
  • RJ45-10G :  2
  • Note :  RJ45-1G, RJ45-10G modules must be interval inserted
• Console :  1
• Integrated Power Supply :  30W
• Auxiliary Ports :  1x Reset Pinhole
• Forwarding Mode :  Store-and-forward
• Total non-blocking throughput :  48Gbps
• Switching Capability :  96Gbps
• Forwarding Rate :  71.424Mpps
• Packet Buffer :  12Mb
• Network Latency : <4µs
