Description

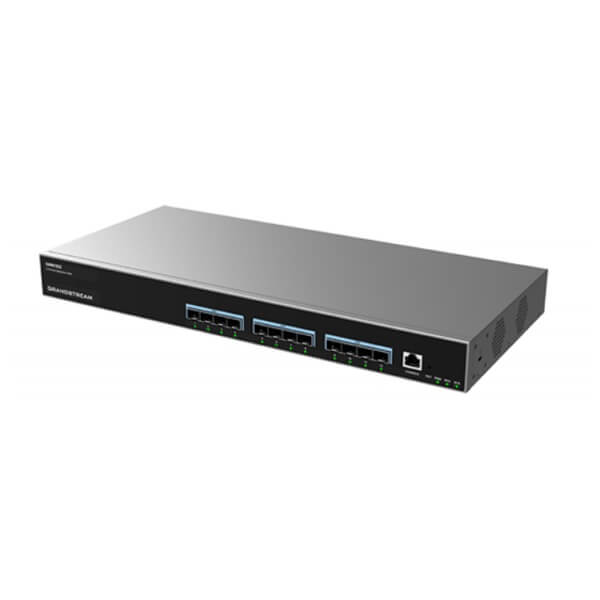

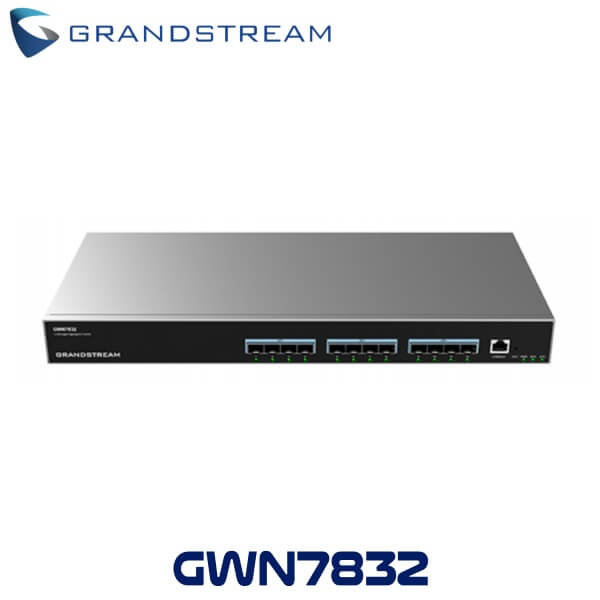

Grandstream GWN7832 Layer-3 Managed Network Switch Ghana
The Grandstream GWN7832 Ghana comprises Layer 3 aggregation managed switches designed to help enterprises establish scalable, secure, high-performance, and intelligent business networks. These networks are fully manageable and can support maximum capacity. This range provides advanced VLAN for flexible traffic segmentation, sophisticated QoS for network traffic prioritization, IGMP/MLD Snooping for optimized network performance, and robust security features to guard against potential attacks. Management options include the local Web user interface and CLI (command line interface) of the switch. Moreover, the series is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. Offering end-to-end quality of service, customizable security settings, and the ability to handle extensive network capacity, the Grandstream GWN7832 Ghana is an ideal choice for medium-to-large enterprise deployments requiring Layer 3 aggregation switches.
Grandstream GWN7832 Core Features
- 12 x SFP+
- Supports deployment in IPv6 and IPv4 networks.
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
Additional Information
| Weight | 5.89 lbs |
| Dimensions | 17.32 × 7.87 × 1.73 in |
| Brand | Grandstream |
| Product Family | GWN-Cloud |
| Switch Type | Managed Switches |
| Number of Ports | 11-18 |
| Main Port Speed | 10G |
| Uplink Ports | 10G SFP+ |
| Layer Support | L3 |
| PoE Support | No |
| Redundant Power Supply | Yes |
Technical Specifications
GENERAL INFO :
- Model : GWN7832
- Box Contents :
- 1x GWN7832 Switch
- 1x 1.2m(10A) AC Cable
- 1x 25cm Ground Cable
- 4x Rubber Footpads
- 1x Power Cord Anti-Trip
- 2x Rack-Mounting Kits
- 8x Screws(KM 3*6)
- 1x Quick Installation Guide
NETWORK PROTOCOL :
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE
802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x - Gigabit SFP+ Ports : 12
- Note : Support DAC Cable and must be ≤ 5m
- Maximum no. of Supported Modules :
- SM-10G : 12
- MM-10G : 12
- RJ45-10G : 6
- Note : RJ45-1G, RJ45-10G modules must be interval inserted
- Console : 1
- Integrated Power Supply : 60W
- External Redundant Power Supply( RPS) : 12V/60W
- Auxiliary Ports : 1x Reset Pinhole
- Forwarding Mode : Store-and-forward
- Total non-blocking throughput : 120Gbps
- Switching Capability : 240Gbps
- Forwarding Rate : 80.352Mpps
- Packet Buffer : 16Mb
- Network Latency : <4µs
