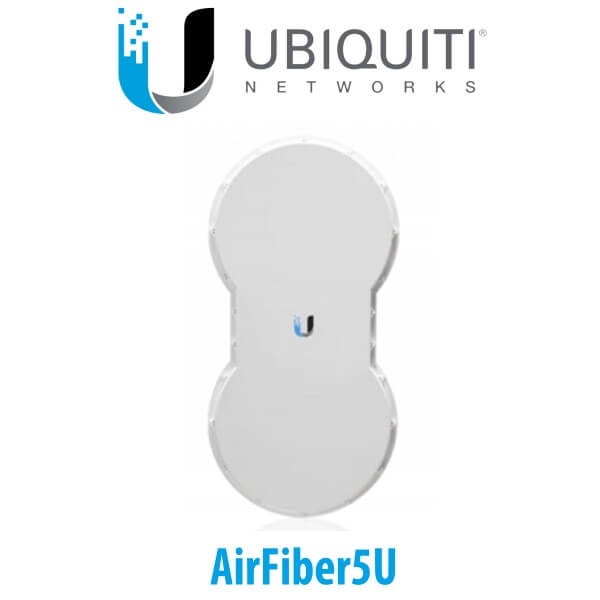

The Ubiquiti AirFiber5U Ghana is a revolutionary backhaul point-to-point radio system. Taking advantage of the 5.9 and 6.0GHz frequencies, the AF5U has a range of up to 100Km+ at an incredible 1Gbps+ speed.

Description

Ubiquiti AirFiber5U Wi-Fi Bridge Ghana

The Ubiquiti AirFiber5U Ghana is a revolutionary backhaul point-to-point radio system. Taking advantage of the 5.9 and 6.0GHz frequencies, the AF5U has a range of up to 100Km+ at an incredible 1Gbps+ speed. The Ubiquiti AirFiber5U can operate in the 5.7 – 6.2 GHz bands, enabling co-location with devices operating in the lower 5 GHz bands. The unique sliding-clamp design of Ubiquiti AirFiber5U Ghana allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation.

Features

  • 1Gbps+ throughput
  • 50MHz channel
  • Full Duplex
  • 100Km+ Range
  • Brand new alignment UI
  • Industry disruptive price point
  • Product Model Number: AF-5U-LINK

Innovative Antenna Design
Featuring, high-isolation, dual-antenna design Ubiquiti AirFiber5U Ghana is ideal for robust performance in the harshest RF noise environments.

Revolutionary Performance
Surpassing conventional wired backhauls, the Ubiquiti AirFiber5U Ghana delivers real throughput of up to 1.2+ Gbps.

Low-Latency Carrier Backhaul
The Ubiquiti AirFiber5U Ghana supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

Superior Processing

Ubiquiti Networks introduces our proprietary INVICTUS™ core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of airFiber AF5/AF5U.

Efficient Use of 5 GHz Band

airFiber AF5/AF5U features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. Ubiquiti AirFiber5U Ghana accurately and continuously controls transmit power relative to the band edge. The power level automatically tracks to optimize performance near band edges, allowing you to choose the part of the band with the least interference.

Long-Range Links

Newly developed for Ubiquiti AirFiber5U Ghana, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximizing your link budget and spectrum utilization – while still maintaining regulatory compliance. Designed to be a high-performance backhaul, the Ubiquiti AirFiber5U Ghana performs at a range of up to 100+ km.

Quick and Easy Installation

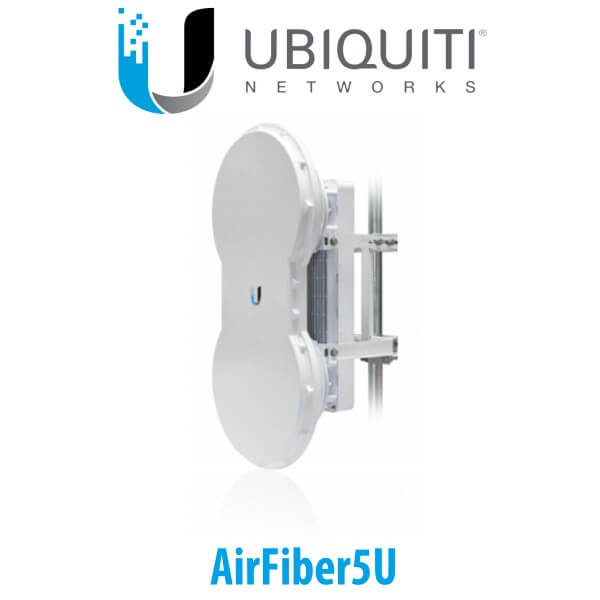

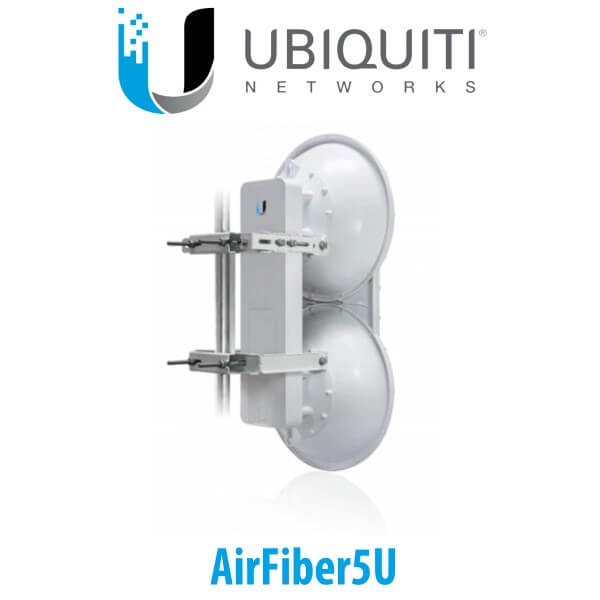

The unique sliding-clamp design of Ubiquiti AirFiber5U, allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation.

Radio Alignment Display

Equipped is Radio Alignment Display (RAD) that makes aiming quicker and easier. The dual, calibrated signal strength indicators display the actual signal strength on the local and remote airFiber radios in real time. The comprehensive array of radio status indicators displaying the following:

  • GPS synchronization status
  • Master/slave mode
  • RF link status
  • RF overload warning
  • Current modulation mode
  • Link activity and speed for wired management and data ports

Specifications

General

  • Dimensions :
    – Radio : 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08″)
    – Box : 1042 x 573 x 502 mm (41.02 x 22.56 x 19.76″)
  • Weight :
    – Radio (Mount Included) : 16 kg (35.27 lb)
    – Box : 26.5 kg (58.42 lb)
  • Power Consumption : 40W
  • Power Supply : 50V, 1.2A PoE GigE Adapter (Included)
  • Power Method : Passive Power over Ethernet
  • Supported Voltage Range : +42 to +58VDC, -48VDC
  • Automatic Transmit Power Control (ATPC) : Yes
  • Certifications : CE, FCC, IC
  • Mounting : Pole Mount Kit (Included)
  • Wind Loading : 863 N @ 200 km/hr (194 lbf @ 125 mph)
  • Wind Survivability : 200 km/hr (125 mph)
  • Operating Temperature : -40 to 55° C (-40 to 131°F)
  • LEDs (12) Status LEDs :
    – Data Port Link/Activity
    – Data Port Speed
    – Management Port Link/Activity
    – Management Port Speed
    – GPS Synchronization
    – Master/Slave
    – Link Status
    – Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
    – Remote and Local Displays (Calibrated Signal Strength)

Operating Frequency

  • FCC 15.247, IC RSS-210: 5725 – 5850 MHz
  • ETSI EN 302 502: 5725 – 5875 MHz
  • Other Regions : 5725 – 6200 MHz

Interface

  • Data Port : (1) 10/100/1000 Ethernet Port
  • Management Port : (1) 10/100 Ethernet Port
  • Auxiliary Port : (1) RJ-12, Alignment Tone Port

System

  • Maximum Throughput : 1.2+ Gbps
  • Maximum Range : 100+ km (Dependent on Regulatory Region)
  • Packets per Second : 1+ Million
  • Encryption : 128-Bit AES
  • Uplink/Downlink Ratio : 50% Fixed
  • Latency: Full Duplex Mode : < 200 µs at Full Throughput – Half Duplex Mode: < 2 ms at Full Throughput
  • Radio Frame Synchronization : GPS
  • Dynamic Frequency Selection : CE (FCC/IC Not Applicable)
  • MTU (Maximum Transmission Unit) : Up to 9600

Suggested Max. TX Power

  • 10x : 39 dBm
  • 8x: 43 dBm
  • 6x : 45 dBm
  • 4x and below : 47 dBm

Radio Frequency

  • GPS : GPS Clock Synchronization

Transceiver

  • EIRP : ~50 dBm (Dependent on Regulatory Region and Frequency Band)
  • Frequency Accuracy :
    – ±2.5 ppm without GPS Synchronization
    – ±0.2 ppm with GPS Synchronization
  • Channel Bandwidth : 10/20/30/40/50 MHz
  • Modulation :
    – 1024QAM MIMO
    – 256QAM MIMO
    – 64QAM MIMO
    – 16QAM MIMO
    – QPSK MIMO
    – ½ Rate QPSK xRT
    – ¼ Rate QPSK xRT

Integrated Split Antenna

  • TX Gain : 23 dBi
  • RX Gain : 23 dBi
  • Beamwidth : 6°
  • Front-to-Back Ratio : 70 dB
  • Polarity : Dual-Slant Polarization
  • Cross-Polarity Isolation : > 28 dB
