Ubiquiti Switch-Enterprise24PoE Ghana



Ubiquiti Switch-Enterprise24PoE Ghana

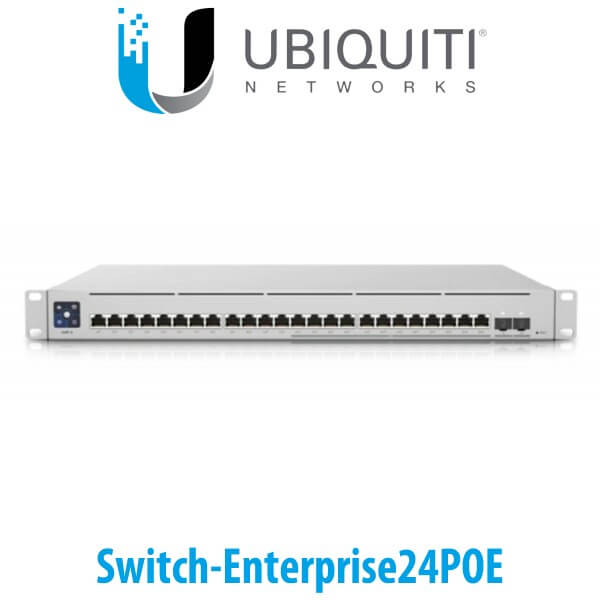

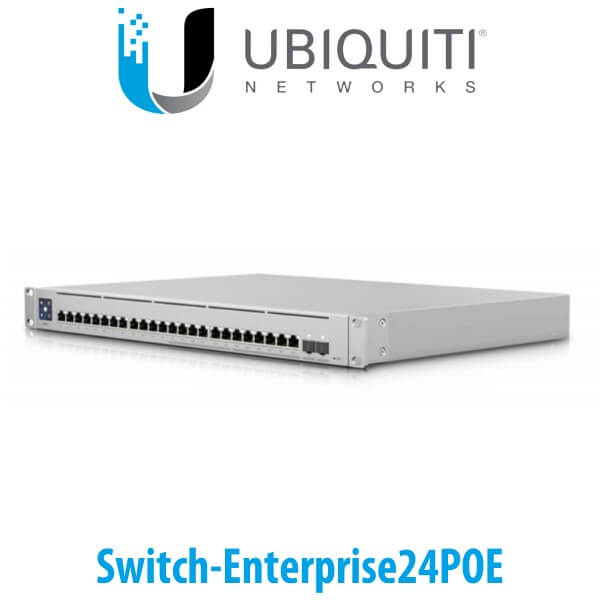

The Ubiquiti Switch-Enterprise24PoE Ghana, features a 24 PoE, fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply.

Description

Ubiquiti Switch-Enterprise24PoE Network Switch Ghana

The Ubiquiti Switch-Enterprise24PoE Ghana, features a 24 PoE, fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. This managed Switch enhances operations by offering support power-over-Ethernet devices, such as security cameras, VoIP phones, access points, and more. Ubiquiti Switch-Enterprise24PoE Ghana is equipped is two 10G SFP+ ports available for high-speed fiber uplinks. With the convenient 1.3″ LCM color touchscreen users quickly configure, monitor, and troubleshoot your connections, or you can manage your switch from almost anywhere using the UniFi Network app, which also includes an augmented reality feature that provides you with a visual overview of your port connections and rackmount hardware is included. Moreover, Ubiquiti Switch-Enterprise24PoE Ghana offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features

  • Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports
  • 3″ LCM color touchscreen with AR switch management
  • USP RPS DC input
  • 400W total PoE supply
  • Layer 3 switching features
  • Single-row RJ45 port layout for easy patch panel cable management
  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

User interface

The Ubiquiti Switch-Enterprise24PoE Ghana is equipped with a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app

High Performance

The Ubiquiti Switch-Enterprise24PoE Ghana has a 124 Gb/s with 62 Gb/s non-blocking throughput and a 92.25 Mpps forwarding rate for smooth data transfers.

Enhance your experience with UniFi Network Controller

  • Manage your networks from a single control panel
  • Robust configuration, control, and monitoring features
  • Remote firmware upgrade
  • User and guest management
  • Guest portal and hotspot support

Specifications

Mechanical
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″)
Weight
  • Without Mount : 5.11 kg (11.27 lb)
  • With Mount : 5.2 kg (11.46 lb)
Enclosure Materials SGCC Steel
Mount Material SGCC Steel
Hardware
Total Non-Blocking Throughput 62 Gbps
Switching Capacity 124 Gbps
Forwarding Rate 92.25 Mpps
Max. Power Consumption 550W
Power Method
  • (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
  • (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 550W
Management Interface Ethernet In-Band
Networking Interfaces
  • (12) 10/100/1000 Mbps RJ45 Ethernet
  • (12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10G SFP+
PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 95% Noncondensing
Certifications CE, FCC, IC
LEDs
System
  • (1) Bootup Animation : Bootup in Progress
  • Firmware Upgrade Icon : Firmware Upgrading
  • Steady White : Factory Defaults, Awaiting Adoption
  • Steady Blue : Device is Adopted
Ethernet White : Link or Activity
SFP+ White : Link or Activity



Datasheet Download
