Description
Ubiquiti Switch-ProAggregation Network Switch Ghana

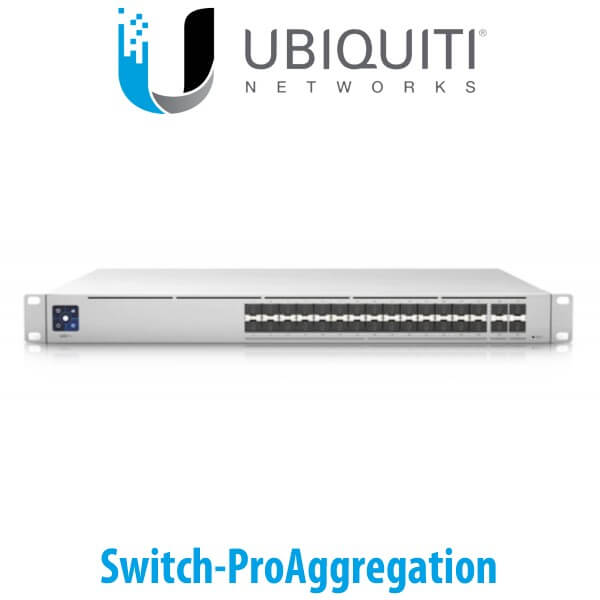

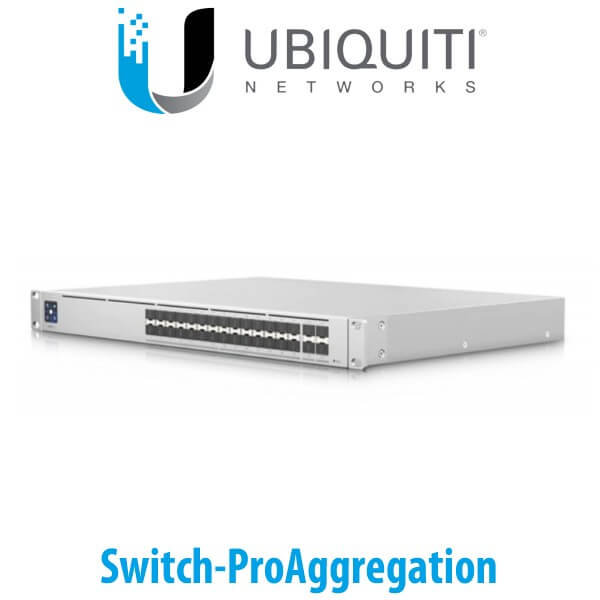

The Ubiquiti Switch-ProAggregation Ghana is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. Featuring a rack-mountable switch Ubiquiti Switch-ProAggregation Ghana offers 760 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. The Ubiquiti USW-ProAggregation Ghana utilizes high-bandwidth links to create link aggregation that enhances its switching capacity. The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks. Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately).
Features
- (28) 10 Gbps SFP+ ports
- (4) 25 Gbps SFP28 ports
- 760 Gbps switching capacity
- (1) 1.3” touchscreen with AR switch management
- (1) Backup 12V DC input connector, SmartPower RPS
- 3” LCM color touchscreen with AR switch management
- USP RPS DC input
- Layer 3 switching features
High Speed Connections
Ubiquiti Switch-ProAggregation Ghana features 28 10 Gb/s SFP+ fiber ports alongside four 25 Gb/s SFP28 uplink ports, delivering high-speed connections to compatible network devices.
Easy Management
The network administrator can manage all switch functions in the UniFi Controller graphical interface. UniFi Controller allows you to configure, scale and access statistics of the entire Ubiquiti Networks UniFi Enterprise System.
UniFi SmartPower
The UniFi SmartPower Redundant Power System connector of Ubiquiti Switch-ProAggregation Ghana allows you to switch to redundant power if the primary power supply fails without interrupting services to your customers.
UniFi Network Controller
- Manage your networks from a single control panel
- Robust configuration, control, and monitoring features
- Remote firmware upgrade
- User and guest management
- Custom guest portal and hotspot support
Specification
Mechanical
- Dimensions :442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
- Weight : Without Mount: 4.6 kg (10.14 lb)
- Weight with Mount : 4.7 kg (10.36 lb)
- Enclosure Material : SGCC Steel
Hardware
- Total Non-Blocking Throughput : 380 Gbps
- Switching Capacity : 760 Gbps
- Forwarding Rate : 565.44 Mpps
- Power Consumption : 100W
- Power Method : (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
- USP-RPS DC input, 11.5VDC, 8.7A
- Power Supply : AC/DC, Internal, 100W
- Network Interface : (28) 1/10 Gbps SFP+ Ethernet
- (4) 1/10/25 Gbps SFP28 Ethernet*
- LCM Display : (1) 1.3″ Touchscreen
- Bootup Animation : Bootup in Progress
- Firmware Upgrade Icon : Firmware Upgrading
- Steady White : Factory Defaults, Awaiting Adoption
- Steady Blue : Device is Adopted
- LEDs : SFP28/SFP+ : White, Link and Activity
- Management Interface : Ethernet In-Band
- Modes : SMB Layer 3 10/25 G Fiber Switch
- ESD/EMP Protection : Air: ± 16kV, Contact: ± 12kV
- Operating Temperature : -5 to 40° C (23 to 104° F)
- Operating Humidity : 10 – 90% Noncondensing
- Certifications : CE, FCC, IC
