Ubiquiti Switch-EnterpriseXG24 Ghana



Ubiquiti Switch-EnterpriseXG24 Ghana

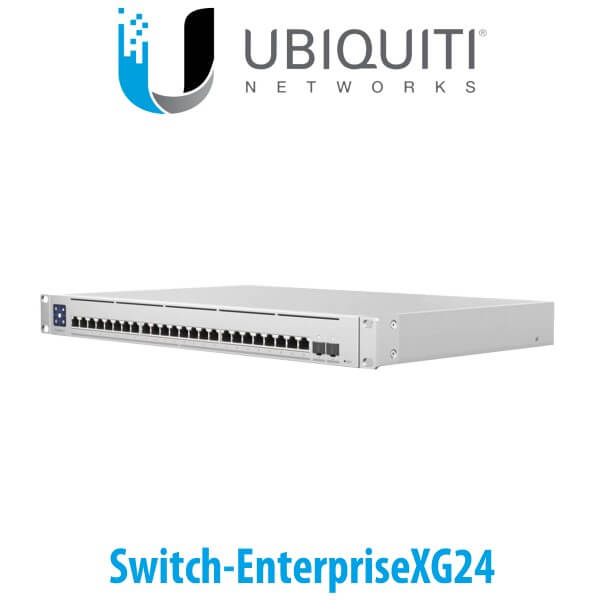

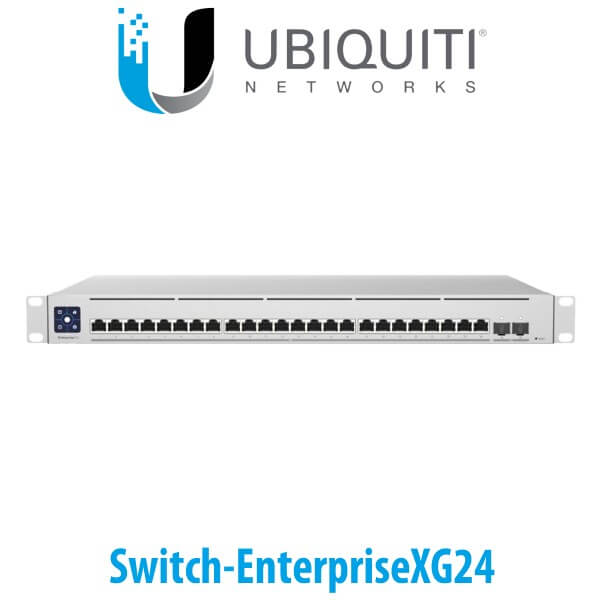

The Ubiquiti Switch-EnterpriseXG24 Ghana is a high performing switch with twenty-four 10G RJ45 Ethernet ports with a 580 Gb/s (290 Gb/s non-blocking) switching capacity and 431.52 Mpps forwarding rate.

Description

Ubiquiti Switch-EnterpriseXG24 Network Switch Ghana

The Ubiquiti Switch-EnterpriseXG24 Ghana is a high performing switch with twenty-four 10G RJ45 Ethernet ports with a 580 Gb/s (290 Gb/s non-blocking) switching capacity and 431.52 Mpps forwarding rate. This high-performance Layer 3 switch is designed to quickly transfer data between computers, servers, network attached storage, and other compatible wired devices. The Ubiquiti Switch-EnterpriseXG24 Ghana features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, the Switch-EnterpriseXG24 Ghana offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features

  • Centrally manage multiple networks from an intuitive interface
  • Real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

Powerful Performance

Featuring 24, 10G RJ45 Ethernet ports with a 580 Gb/s (290 Gb/s non-blocking) switching capacity and 431.52 Mpps forwarding rate Ubiquiti Switch-EnterpriseXG24 Ghana Layer 3 switch is designed to quickly transfer data

UniFi Network web application and mobile app.

The Ubiquiti Switch-EnterpriseXG24 Ghana allow easy configuration settings using the convenient, built-in 1.3″ LCM color touchscreen or by using the UniFi Network Application on almost any device, from almost anywhere in the world

Specifications

Interfaces
Ports
  • 28 x 10Gb Ethernet (RJ45)
  • 2 x 25 Gb/s SFP28
Protocols
Layer Services Supported Layer 3 Support
Performance
Forwarding Rate 431.52 Mpps
Switching Bandwidth
  • 580 Gb/s
  • 290 Gb/s (Non-Blocking)
Electrical
Power Draw 100.00 W
DC Input Power 11.5 VDC at 8.7 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2 A
Power Supply Type Internal
Environmental
Operating Temperature 23 to 104°F / -5 to 40°C
Operating Humidity 10 to 95%
General
Cooling System Fan
Material of Construction Steel
Rack Form Factor 1 RU
Dimensions 17.4 x 11.2 x 1.7″ / 442 x 285 x 44 mm
Weight 10.08 lb / 4.57 kg
Packaging Info
Package Weight 12.435 lb
Box Dimensions (LxWxH) 20.4 x 16.1 x 5.5″
