Ubiquiti AirFiber60LR Ghana



Ubiquiti AirFiber60LR Ghana

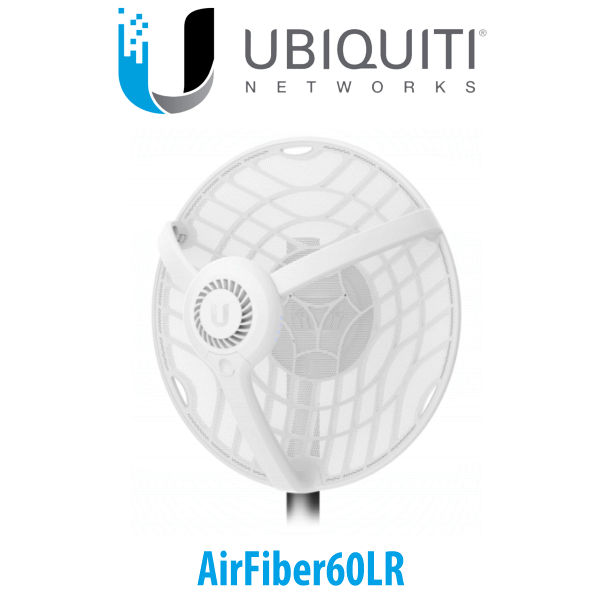

The Ubiquiti AirFiber60LR Ghana is a 60 GHz Long-range Radio featuring a revolutionized system that uses Wave Technology to establish long-distance, true-duplex Gigabit links

Description

Ubiquiti AirFiber60LR Wi-Fi Bridge Ghana

The Ubiquiti AirFiber60LR Ghana is a 60 GHz Long-range Radio featuring a revolutionized system that uses Wave Technology to establish long-distance, true-duplex Gigabit links. Equipped with a high-gain dish antenna, the AF60 LR outdoor dish antenna is designed to provide low-interference, high-throughput connectivity at ranges up to 7.5 miles and a maximum data throughput of 1.8 Gb/s. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). Ubiquiti AirFiber60LR Ghana can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna. A precision alignment pole mount is included alongside a 48V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include an integrated GPS and WPA2-PSK signal encryption.

Features

  • Low-interference 60 GHz spectrum
  • High-gain dish antenna
  • Maximum throughput: 1.9 Gbps
  • Link range: 12+ km
  • Link planning support
  • Integrated GPS antenna
  • Included precision angle mount
  • Easy-to-install snow cover
  • Simple, Bluetooth-powered setup with a Mobile app

Long Connection Range

The airFiber 60 LR wireless bridge has a range of up to 7.5 miles. The outdoor dish antenna is designed to provide low-interference, high-throughput connectivity at ranges up to 7.5 miles and a maximum data throughput of 1.8 Gb/s.

Fast Data Throughput

The Ubiquiti AirFiber60LR Ghana dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band. It connects to your network via the built-in Gigabit Ethernet port and includes a 48V PoE adapter for power.

Made for the Outdoors

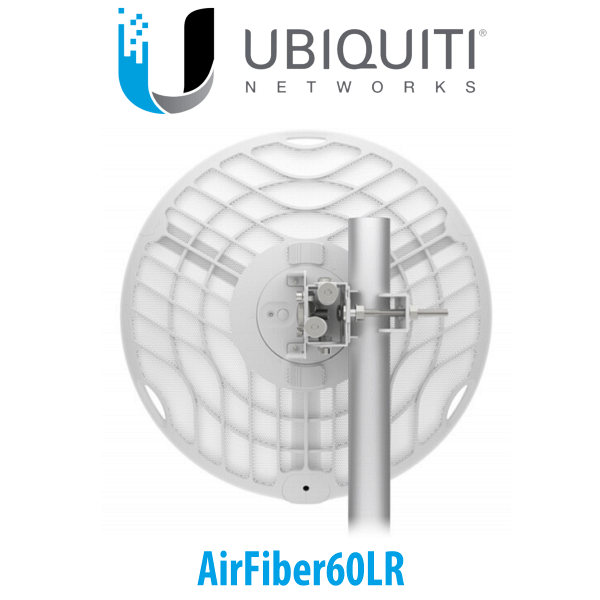

Made from aluminum and UV-stabilized plastic, the airFiber 60 LR can operate between -40 to 140°F and has ESD/EMP protection of about 24kV. A precision alignment pole mounting kit is included.

Checking Status

The Ubiquiti AirFiber60LR Ghana has easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.

Specifications

Wireless
Wireless Frequency Bands 60 GHz
MU-MIMO Support Yes
Throughput 1800 Mb/s Total
Interface
Ports 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
Security
Wireless Security WPA2-PSK
Hardware
RAM 256 MB
CPU Cortex A7 Quad-Core
Electrical
DC Input Power 48 VDC at 0.65 A
Power Consumption 18 W
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 5 to 95%
General
Mount Options Pole
Range 1.24 Miles / 2 km
Dimensions 16.3 x 16.3 x 14.2″ / 413 x 413 x 360 mm
Weight 6 lb / 2.7 kg
Packaging Info
Package Weight 13 lb
Box Dimensions (LxWxH) 17.9 x 17.6 x 7.4″



Datasheet Download
