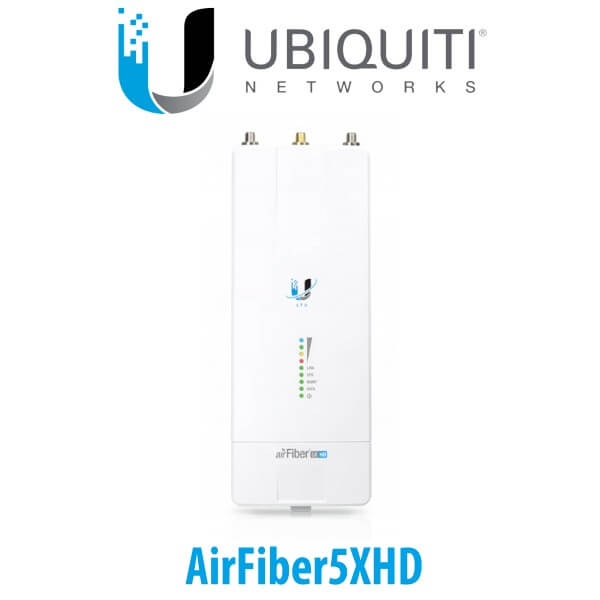

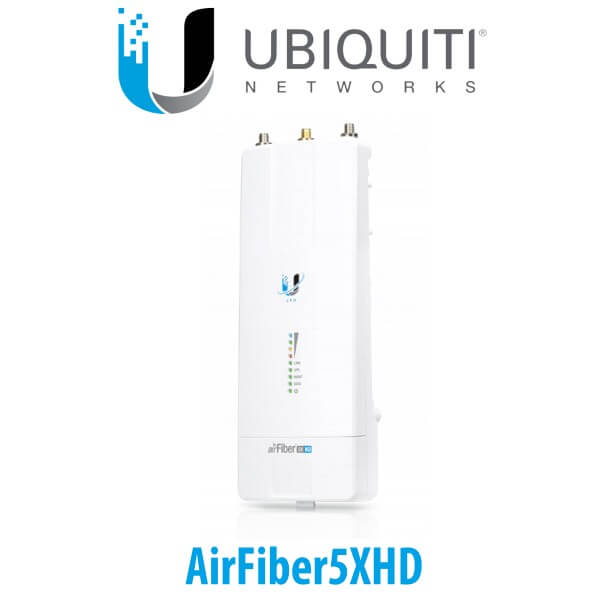

The Ubiquiti AirFiber5XHD Ghana features custom LTU silicon and radio architecture that provides breakthrough performance and is Water Resistant and Perfect for any Weather Conditions

Description

Ubiquiti AirFiber5XHD Wi-Fi Bridge Ghana

The Ubiquiti AirFiber5XHD Ghana features custom LTU silicon and radio architecture that provides breakthrough performance and is Water Resistant and Perfect for any Weather Conditions. Its core communications processing engine surpasses the limitations inherent to generic Wi -Fi chips to provide low latency, long‑range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity. AF-5XHD is Ubiquiti’s first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.  The Ubiquiti AirFiber5XHD Ghana features 21.2 bps/Hz spectral efficiency, line‑rate data packet processing for up to 1.34 Gb/s of real data throughput, and innovative xtreme Range Technology (xRT). An IP67 upgrade kit is included to provide enhanced protection from dust and water.

Features

Game-Changing LTU Technology

Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

IP-67 Durability

aUbiquiti AirFiber5XHD Ghana is Water Resistant and Perfect for any Weather Conditions.

Programmable Transmit Power

The Ubiquiti AirFiber5XHD Ghana features radio transmit power level can be programmed up to +29 dBm.

Programmable Duty Cycle (GPS synchronized frames)

The AF-5XHD allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7% and 75%.

Configurable GPS Synchronization

The Ubiquiti AirFiber5XHD Ghana offers configurable support for 2, 2.5, 4 and 5 ms frames. Timing is compatible with all other synchronous systems.

Split TX and RX Frequency

The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance.

Split TX and RX Channel Bandwidth

Ubiquiti AirFiber5XHD Ghana offer support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently.

Adaptive Modulation up to 4096 QAM

Adaptive modulation rates of up to 4096 QAM are supported.

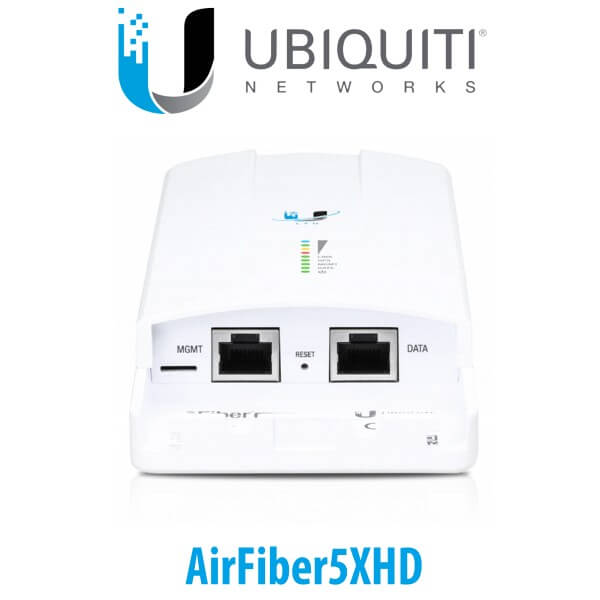

Dual Redundant Gigabit Ethernet Ports with PoE

The Ubiquiti AirFiber5XHD Ghana has two Gigabit Ethernet ports that can be used to provide redundant PoE power.

OFDM and OFDMA Support

The radio offers flexible scheduling for 2, 4 or 8 sub channels.

Bluetooth Wireless Configuration

Ubiquiti AirFiber5XHD Ghana use the built-in Bluetooth interface for wireless configuration.

AlignLock Antenna Aiming Guard

This alerts the user when the radio or antenna aiming is changed due to tampering, impact or storm damage.

User-Configurable Interference Mitigation

Ubiquiti AirFiber5XHD Ghana boasts of three user-selectable profiles support both high-interference and greenfield deployments for robust, optimal performance.

Redundant Images for Fail-Safe Configuration

Creation of backup firmware images ensures fail-safe configuration and enhances reliability.
Persistent Spectrum Analysis with Dedicated RXPerform real-time spectral analysis for the full band on live links without interrupting the link operation.

Wide Voltage Range, Enhanced Surge Protection

The Ubiquiti AirFiber5XHD Ghana has an operating voltage range of 19-50VDC and provides enhanced surge protection.

Spectral Analysis with airView

Ubiquiti AirFiber5XHD Ghana has airView allowing identification noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

  • Constantly monitors environmental noise
  • Collects energy data points in real-time spectral views
  • Helps optimize channel selection, network design and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UNMS App

The Ubiquiti AirFiber5XHD Ghana supports the Ubiquiti Network Management System. UNMS is a comprehensive management controller featuring an easy-to-navigate graphic UI. The UNMS app provides instant access to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure and manage the AF-5XHD and offers various configuration options once you’re connected or logged in.

Specifications

Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)
Weight 0.35 kg (0.77 lb)
GPS External, Magnetic Base
Operating Frequency 5150-5250MHz
5740-5850MHz
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Dual Passive Power over Ethernet
Maximum Power Consumption 12W
Supported Voltage Range 20-50VDC

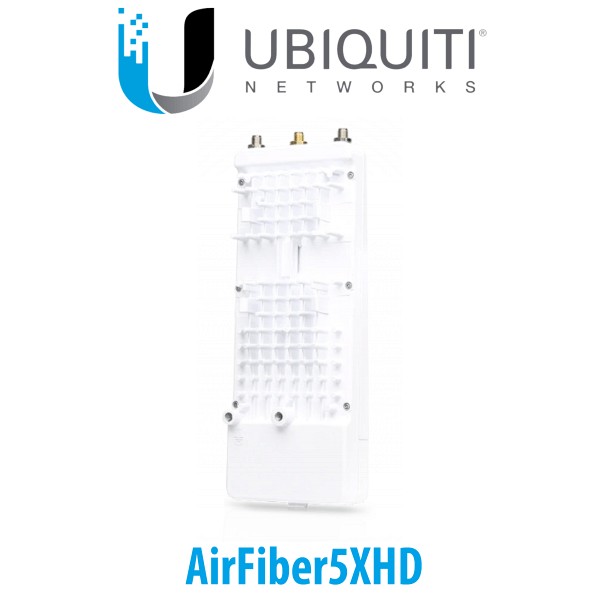

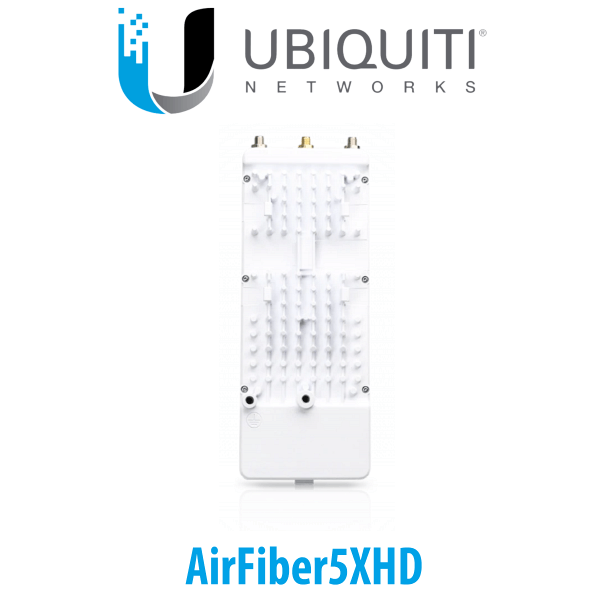

Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications FCC
Operating Temperature -40 to 55° C (-40 to 131° F)
INTERFACE
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100/1000 Ethernet Port
SYSTEM
Processor LTU IC
Maximum Throughput 1+ Gbps
Maximum Range 200+ km (Throughput and range values may vary depending on the environmental conditions)
Encryption 128-bit AES
Operating System airOS F
RADIO FREQUENCY
Max TX Power 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel Bandwidth 10/20/30/40/50/60/80/100 MHz Selectable
