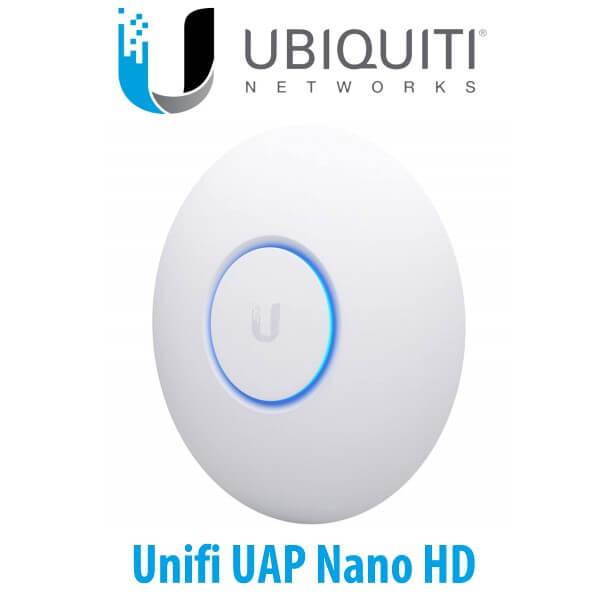

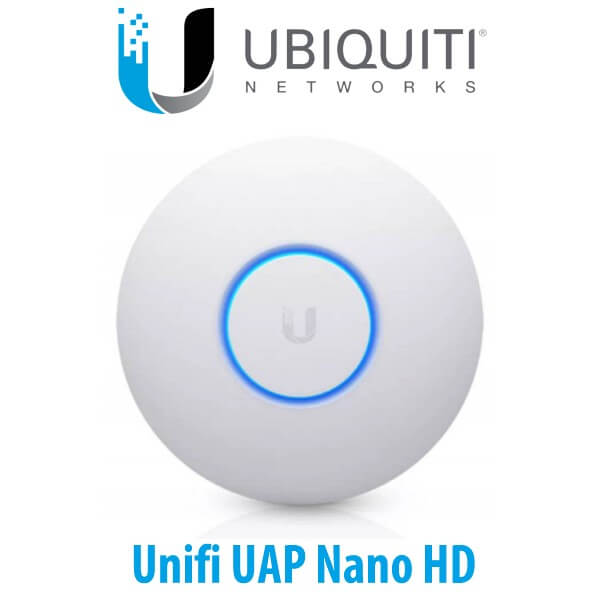

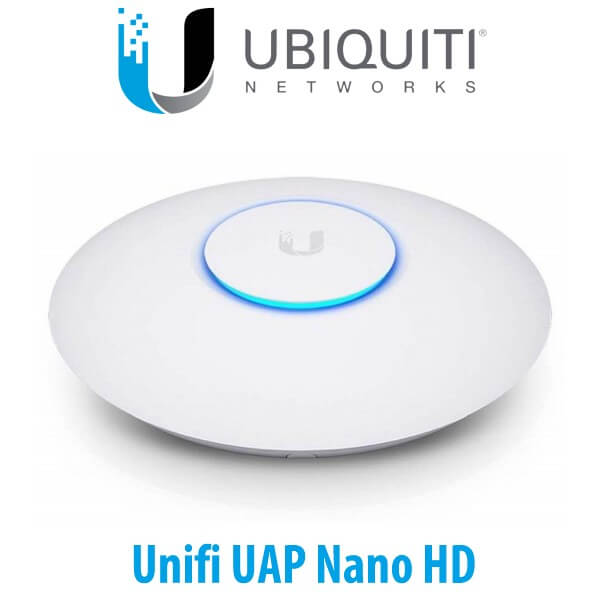

Ubiquiti Unifi UAP NanoHD Ghana



Ubiquiti Unifi UAP NanoHD Ghana

The Ubiquiti Unifi UAP NanoHD Ghana is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands.

Description

Ubiquiti Unifi UAP NanoHD Access Point Ghana

The Ubiquiti Unifi UAP NanoHD Ghana is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands. The Unifi is designed to utilize 802.11ac Wave 2, the Access Point NanoHD provides powerful multi-user support in an elegant, nano-sized design. Deploy the ubiquiti UAP-NanoHD Access Point in high-density environments requiring maximum wireless performance and minimal footprint. The Access Point NanoHD Ghana can be powered by an 802.3af PoE compliant switch sold separately. The Unifi NanoHD Access Point is compatible with all Unifi PoE switches and 48V adapters. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you’d like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the Access Point NanoHD can be set up in minutes and fully managed with the UniFi Network web application or mobile app. The Access Point NanoHD Ghana support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network.

Features:

  • Four-stream, 802.11ac Wave 2 WiFi technology
  • 5 GHz (4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
  • 4 GHz (2×2 MIMO) band with a 300 Mbps throughput rate
  • 200+ concurrent client capacity
  • Powered by 802.3af PoE (PoE injector included with single pack)

Reliability

Ubiquiti Unifi UAP-NanoHD Ghana comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.

Powerful Hardware

The Access Point NanoHD features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

Intuitive User Interface

Configure and manage Access Point NanoHD Ghana with the easy-to-learn user interface.

Expandable Unlimited scalability

Build wireless networks as big or small as needed. Start with one (or upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.

Unifi Controller Software
Easily deploy Access Point NanoHD using the included UniFi Controller software. Manage thousands of unifi devices across multiple sites, and scale your network as needed without any ongoing licensing fees.

Seamless Integration
The Ubiquiti Unifi UAP-NanoHD Ghana is designed for seamless integration with a low-profile form factor. The optional ceiling mount or custom skins allow the AP to blend even more discreetly into its setting.

Specifications

Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″)
Weight
With Mounting Kits
300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface (1) RJ45 GbE
Buttons (1) Reset to Defaults
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Operating Frequency 2.4 GHz
5 GHz
Max. TX Power 2.4 GHz : 23 dBm
5 GHz : 26 dBm
Antenna Gain 2.4 GHz : 2.8 dBi
5 GHz : 3 dBi
MIMO 2.4 GHz : 2×2
5 GHz : 4×4
Throughput 2.4GHz : 300 Mbps
5GHz : 1733 Mbps
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing



Datasheet Download
