Ubiquiti Switch-FlexMini Ghana



Ubiquiti Switch-FlexMini Ghana

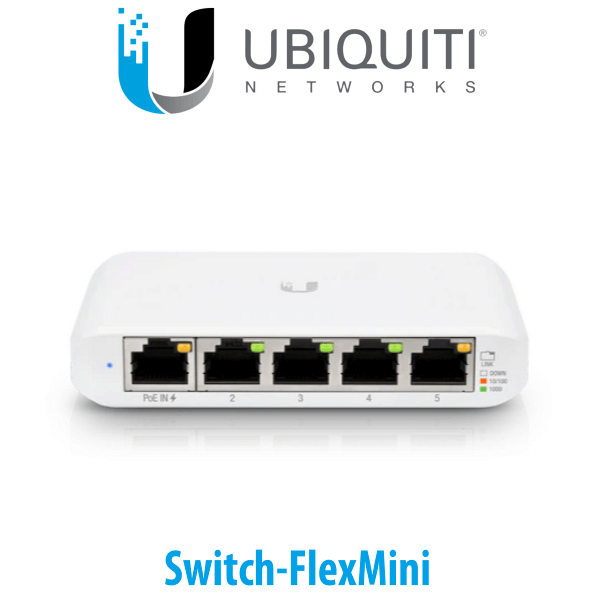

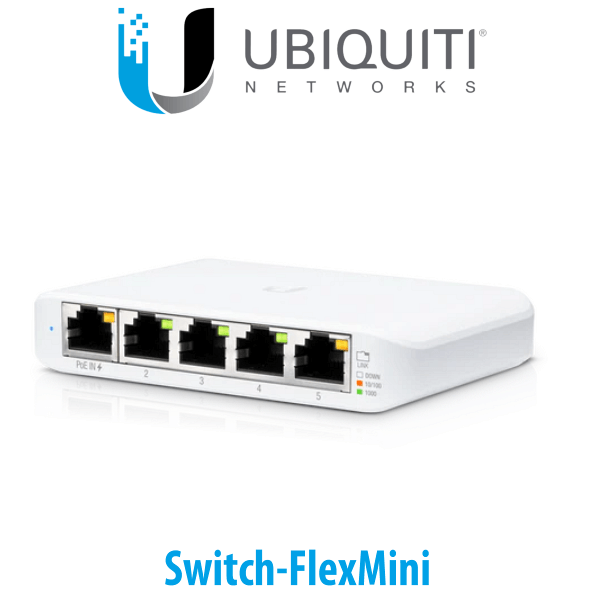

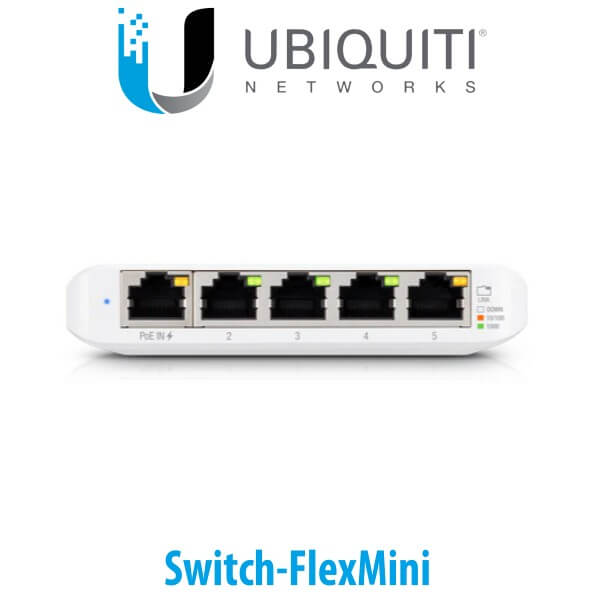

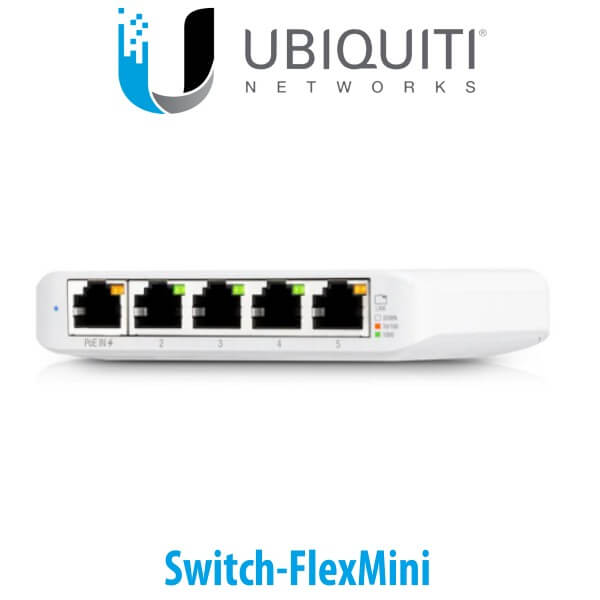

The Ubiquiti Switch-FlexMini Ghana is a 5-port fully managed router features five RJ45 Gigabit Ethernet ports that provide fast, wired connections to compatible devices, supporting a 10 Gb/s switching capacity and 7.44 Mpps forwarding rate.

Description

Ubiquiti Switch-FlexMini Network Switch Ghana

The Ubiquiti Switch-FlexMini Ghana is a 5-port fully managed router features five RJ45 Gigabit Ethernet ports that provide fast, wired connections to compatible devices, supporting a 10 Gb/s switching capacity and 7.44 Mpps forwarding rate. The Flex Mini can also be powered through its PoE-in port when connected to a compatible 802.3af/at device or using the included USB Type-C power adapter. With its small, fanless desktop design, the Ubiquiti USW-FlexMini Ghana fits into almost any office, home, or business environment, where it operates silently. The Ubiquiti Switch-FlexMini Ghana offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Use the UniFi Network Controller platform (version 5.12.5 or higher) to configure, manage, and monitor the switch and its connected devices.

Features:

  • 5 x Gigabit Ethernet Ports
  • 1 x PoE-In Port
  • 10 Gb/s Switching Capacity
  • 44 Mpps Forwarding Rate
  • Desktop Switch
  • Compact, Fanless Design
  • Supports UniFi Network Controller

UniFi Network Controller

  • Single interface network management
  • Intuitive and comprehensive device configuration, control, and monitoring
  • Remote firmware upgrading
  • Manage network users and guests
  • Personalize the design, architecture, and privacy of guest hotspots

Compact Desktop Design

The cost-effective, Ubiquiti Switch-FlexMini Ghana can be discreetly integrated into any environment.

Copper Connectivity

Equipped with five RJ45 ports, Ubiquiti Switch-FlexMini Ghana offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

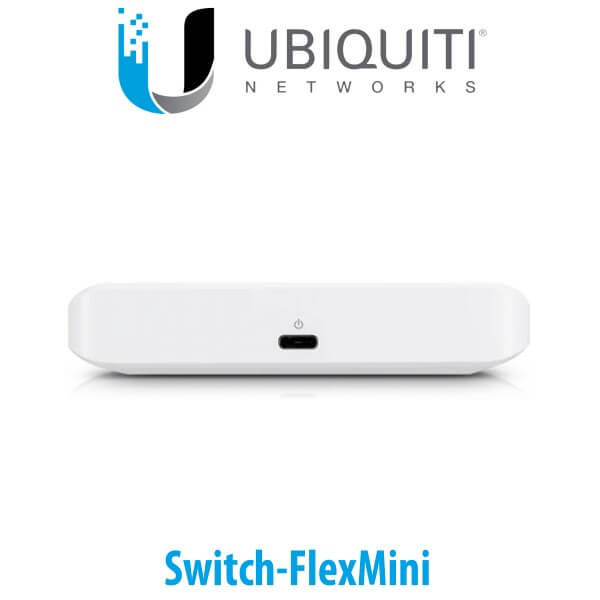

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.

Switching Performance

The Ubiquiti Switch-FlexMini Ghana offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Management Capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Software Features

The UniFi Network Controller software offers the following features for the UniFi Switch Flex Mini:

  • Centralized configuration management (including configuration cloning)
  • Auto-MDIX automatically adjusts as needed for straight through or crossover cable

Switch Configuration

Easily access Ubiquiti Switch-FlexMini Ghana through the UniFi Controller to configure a variety of features:

  • Operation mode (switching or mirroring) per port
  • Network/VLAN configuration
  • umbo frame and flow control services
  • Network settings
  • Storm control setting per port

Switch Port Status

You can also view status information for each port:

  • Connection speed and duplex mode
  • TX/RX data rates
  • Network/VLAN setting

Specifications

Interfaces
Ports 5 x10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Performance
Forwarding Rate 7.44 Mpps
Switching Bandwidth 5 Gb/s (Non-Blocking)
10 Gb/s
Electrical
Power Draw 2.5 W
DC Input Power 5 VDC at 1 A
Power Supply Type External
Environmental
Operating Temperature 23 to 113°F / -5 to 45°C
Operating Humidity 10 to 90%
General
Cooling System Passive
Indicator Lights Link/Activity/Speed
Dimensions 4.22 x 2.76 x 0.83″ / 107.16 x 70.15 x 21.17 mm
Weight 5.3 oz / 150 g
Packaging Info
Package Weight 0.5 lb
Box Dimensions (LxWxH) 7.3 x 4.5 x 1.9″



Datasheet Download
