Ubiquiti AirFiber60US Ghana



Ubiquiti AirFiber60US Ghana

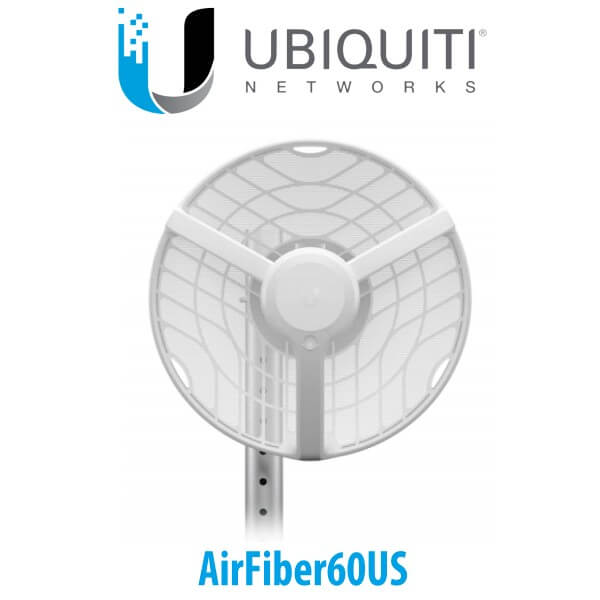

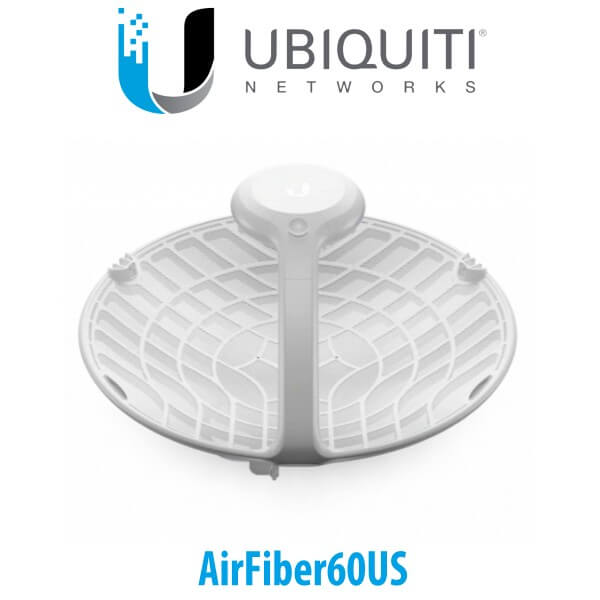

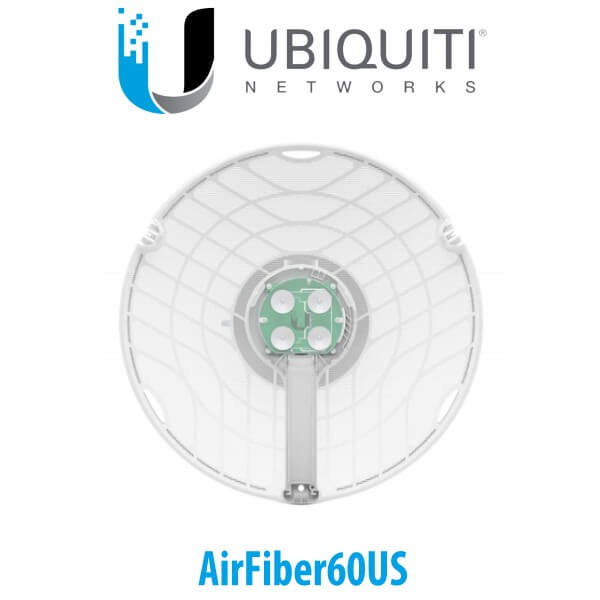

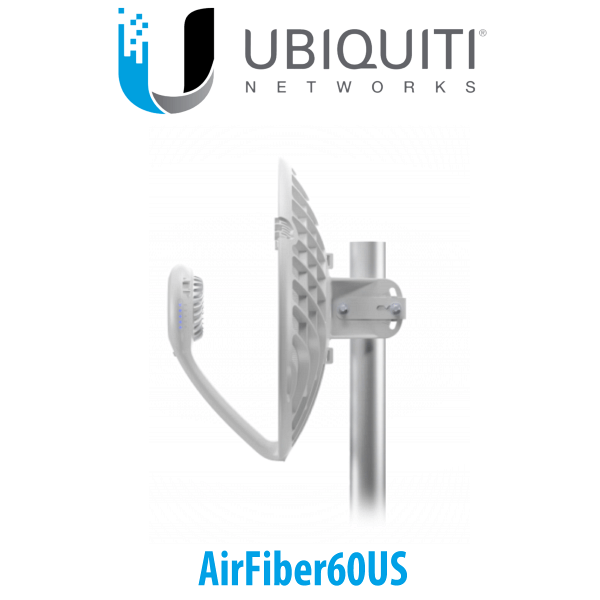

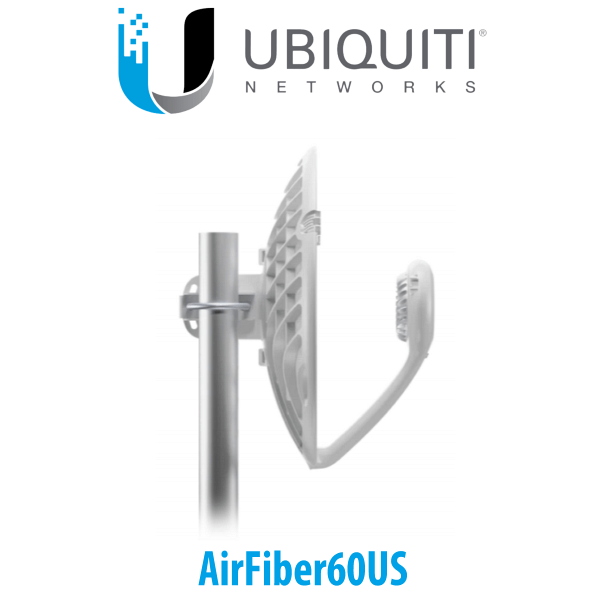

The Ubiquiti AirFiber60US Ghana is a 60 GHz radio for low-interference and high-throughput connectivity. 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles.

Description

Ubiquiti AirFiber60US Wi-Fi Bridge Ghana

The Ubiquiti AirFiber60US Ghana is a 60 GHz radio for low-interference and high-throughput connectivity. 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles and a maximum data throughput of 1.8 Gb/s. Ubiquiti AirFiber60US Ghana is integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance. Ubiquiti AirFiber60US Ghana reliable long-distance, point-to-point connection between networks. It features 38 dBi gain at 60 GHz and 11 dBi on the 5 GHz radio backup, with a combined transmission power of 25 dBm. Made from aluminum and UV-stabilized plastic, the airFiber 60 can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included alongside a 24V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include WPA2-PSK and WPA2 Enterprise signal encryption, an integrated GPS, and automatic switching between the 2 GHz and 1 GHz width channels for optimal link performance.

Features

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 Ghz spectrum
  • Long range, up to 2 km
  • Up to 1 Gbps with low latency
  • Integrated GPS
  • Full and half bandwidth support
  • Enclosure: Aluminum, UV-stabilized polycarbonate

Long Distance Connection

The Ubiquiti AirFiber60US Ghana wireless bridge has a range of up to 1.24 miles.

Fast Data Throughput

The dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band with a 5 GHz backup radio. It connects to your network via the built-in Gigabit Ethernet port and includes a 24V PoE adapter for power.

High-Powered Dish

This dish and integrated antenna have a 38 dBi signal gain at 60 GHz and 11 dBi at 5 GHz, with a combined transmit power of 25 dBm. Ubiquiti AirFiber60US Ghana automatically switches between the 1 GHz and 2 GHz channel widths on the 60 GHz link to optimize performance.

Made for the Outdoors

Made from aluminum and UV-stabilized plastic, the Ubiquiti AirFiber60US Ghana can operate between -40 to 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included.

LED Indicators

Easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.

Specifications

Dimensions 413 x 413 x 320 mm (16.26 x 16.26 x 12.60″)
Weight
Without Mount
With Mount
1.4 kg (3.09 lb)
1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 GHz
60 GHz
11 dBi
38 dBi
Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G/GPS
Mounting Pole Mount (Included)
Wind Loading 420 N @ 200 km/h (94.4 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
System
Maximum Throughput 1.9 Gbps
Maximum Range 2+ km
Encryption WPA2-PSK (AES)/WPA2 Enterprise
OS airOS GP
Radio
Max. Conducted TX Power
5/60 GHz Combined
25 dBm
Channel Bandwidth
60 GHz
5 GHz
2160 MHz
20/40/80 MHz
Operating Frequency (Mhz)
US/CA
U-NII-1
U-NII-3
5150 – 5250
5725 – 5850
57,000 – 66,000
Worldwide 5180 – 5875
57,000 – 66,000
Management Radio (MHz)
Worldwide 2412 – 2472
US/CA 2412 – 2462
