Ubiquiti AirFiber60HD Ghana



Ubiquiti AirFiber60HD Ghana

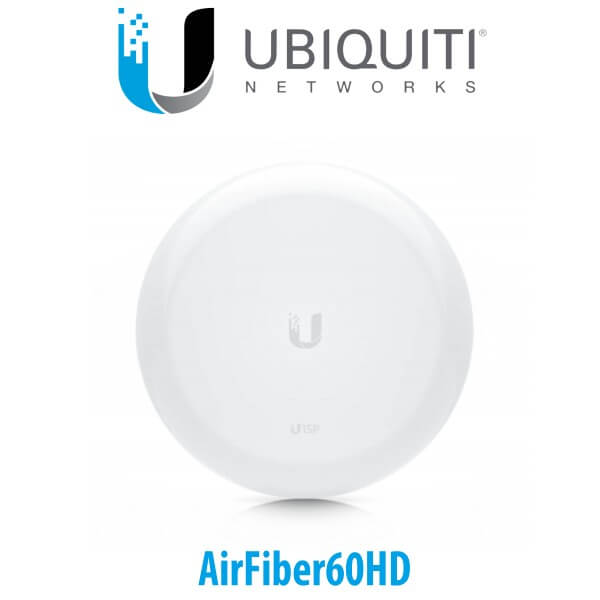

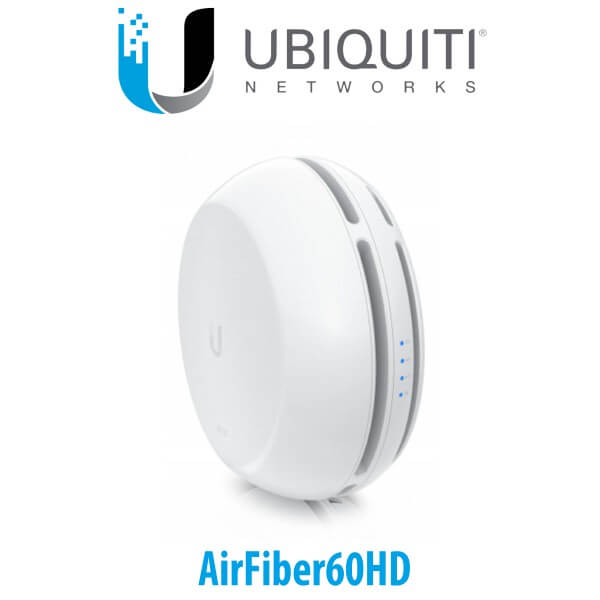

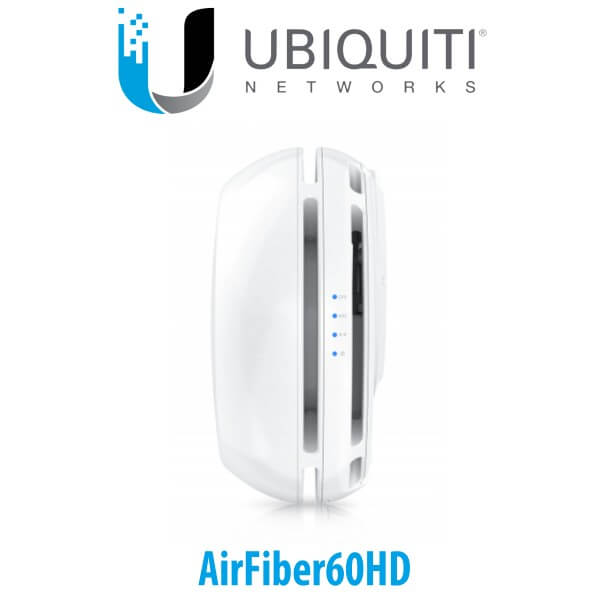

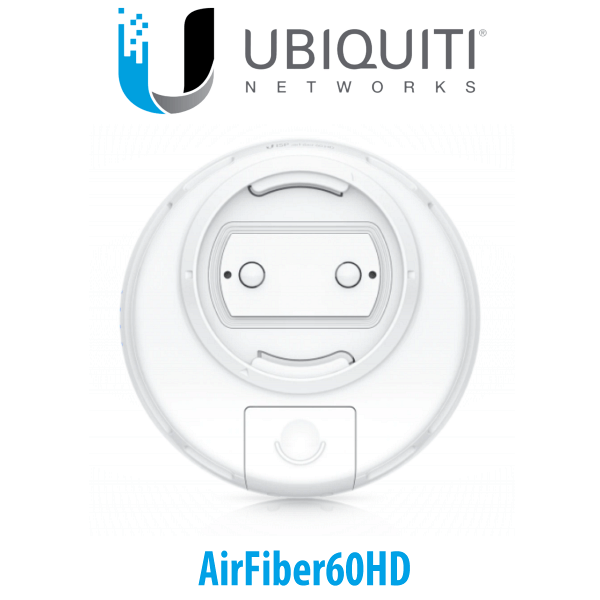

The Ubiquiti AirFiber60HD Ghana features a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum.

Description

Ubiquiti AirFiber60HD Wi-Fi Bridge Ghana

The Ubiquiti AirFiber60HD Ghana features a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The Ubiquiti AirFiber60HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the Ubiquiti AF60HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.

Features

  • Low-interference 60 GHz spectrum
  • Up to a 2 km link range
  • Supports channel bonding to achieve up to a 6 Gbps throughput rate
  • 10G SFP+ port
  • Terragraph-certified
  • Integrated GPS
  • Link planning support
  • Simple, Bluetooth-powered setup with the Mobile app

Powerful Performance

Long Connection Range

The Ubiquiti AirFiber60HD Ghana is designed to provide low-interference, high-throughput connectivity at ranges up to 2 km link range and a maximum data throughput of 1.8 Gb/s.

Fast Data Throughput

The Ubiquiti AirFiber60HD Ghana dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band. It connects to your network via the built-in Gigabit Ethernet port and includes a 48V PoE adapter for power.

Easy Configurations

The Ubiquiti AirFiber60HD Ghana features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring.

Specifications

Dimensions 189 x 89 mm (7.4 x 3.5″)
Weight Without mount : 1.8 kg (3.9 lb)
With mount : 2.95 kg (6.5 lb)
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount material Stainless steel (SUS304)
Mount 60G precision alignment pole mount (included)
Wind loading 64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-Core ARM Cortex A72 at 1.6 GHz
Memory 2 GB DDR4
Networking interfaces (1) GbE RJ45 port
(1) 1/10G SFP+ port
Button Factory reset
RF connections Internal
Max. power consumption 29.31W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8) or 2-Pairs (4, 5+; 7, 8)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported voltage range 48VDC ± 10%
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
LEDs
Power
  • Flashing white : bootup in progress
  • White : not connected to UISP console
  • Blue : connected to UISP console
Ethernet Flashing blue : ethernet activity
GPS Blue : receiving at least (4) GPS satellite signals
System
Maximum throughput 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Maximum range 2 km
Encryption WPA2-PSK (AES)
Uplink/Downlink ratio 50/50
Software
OS airFiber
Modes PtP only
Services UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Utilities Beamform info, discovery utility, ping, trace route, speed test
Network Bridge mode
Wireless settings GPS sync
Management interface Bluetooth management for easy setup over UISP app

WEB UI

Minimum software requirements Any modern WEB browser/iOS or Android based smartphone
RF
Operating frequency 57 to 66 GHz
GPS Yes
Channel bandwidth 2160 MHz/4320 MHz (with channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz
Beamwidth HPOL: NaN (the antenna is only vertically polarized)

VPOL: 3°

Elevation: 3°

Electrical downtilt



Datasheet Download
