Ubiquiti Unifi FlexHD Ghana



Ubiquiti Unifi FlexHD Ghana

The Ubiquiti Unifi FlexHD Ghana is an Access point featuring a small, sleek design and compact form factor that can easily be deployed indoors or outdoors. With flexible mounting options

Description

Ubiquiti Unifi FlexHD Access Point Ghana

The Ubiquiti Unifi FlexHD Ghana is an Access point featuring a small, sleek design and compact form factor that can easily be deployed indoors or outdoors. With flexible mounting options, the Access Point FlexHD Ghana can be deployed on tabletops, walls, poles, and ceilings. Featuring a weatherproof design, the Ubiquiti Unifi FlexHD network provides Wave 2 access point with 4×4 MU-MIMO technology utilizing Wi-Fi 5 (802.11ac) technology use 5 GHz (for up to 1.7733 Gb/s) and 2.4 GHz (300 Mb/s) frequency bands indoors and outdoors. The Access Point FlexHD Ghana can be mounted on a tabletop, wall, or a pole. The Ubiquiti Unifi FlexHD Ghana works with the UniFi Network Controller, allowing for scalability hence can be used to build wireless networks as big or as small as required, all in a unified management system.

Unifi Flex HD Features

  • 4×4 MU-MIMO Technology with 1.733 Gbps Throughput
  • Weatherproof for Indoor / Outdoor Installations
  • Flexible Mounting Options for Ceiling, Pole, Tabletop, or Wall
  • 11ac Technology
  • High-Density Scenarios
  • 10/100/1000 Ethernet Port

Save Money and Save Time
Ubiquiti Unifi FlexHD Ghana comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.

Unlimited scalability
Expand wireless networks as big or small as you require. Start with one (or upgrade to a three-pack) and expand to hundreds while maintaining a single unified management system.

802.11ac Technology
Initial 802.11ac Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time. 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi AP Flex HD, to communicate with multiple clients at the same time hence increasing multi-user throughput and overall user experience.

High-Density Scenarios
UniFi AP Flex HD support is limited by radio link airtime depending on the amount of traffic each device creates, types of devices, network configuration, and the presence of other APs on the same channel. Both Wave 1 and Wave 2 APs offer 28 independent (non-overlapping) channels: three for the 2.4 GHz band and twenty-five for the 5 GHz band, including DFS channels. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), to support more clients in any cell that deploys more than one AP. Also, with the advantages of MU-MIMO technology and 4×4 spatial streams, Ubiquiti Unifi FlexHD Ghana can support more than triple the number of users than a typical Wave 1 AP.

Wi-Fi 5 (802.11ac)

Utilizing Wi-Fi 5 (802.11ac) MU-MIMO technology, the Access Point FlexHD Ghana can communicate with multiple clients at the same time, which significantly increasing multi-user throughput and improving overall user experience.

MU-MIMO

As a Wave 2 AP, the Ubiquiti Unifi FlexHD Ghana provides increase wireless performance and/or serves more clients over a Wave 1 AP. A 4×4 Wave 2 AP delivers data to up to 33% more clients than a Wave 1 AP that is 3×3 in both 2.4 GHz and 5 GHz frequency bands.

UniFi Network Controller

The Ubiquiti Unifi FlexHD Ghana is scalable with the UniFi Network Controller. You’ll be able to manage UniFi devices, map out networks, manage system traffic, and more.

Flexible Mounting Options

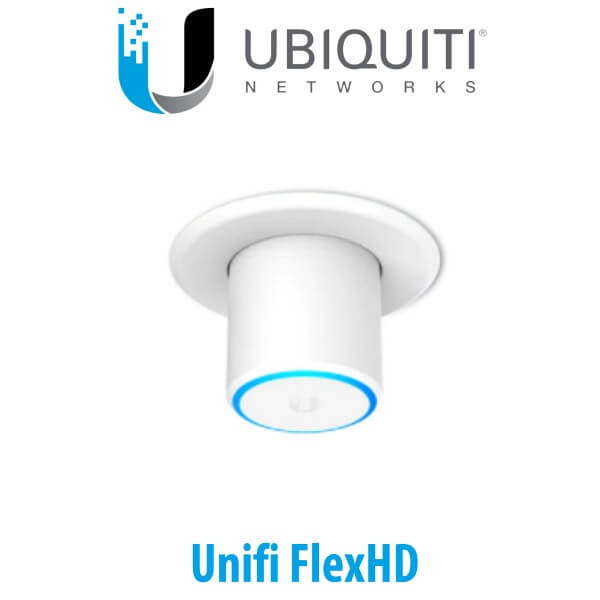

The Access Point FlexHD Ghana supports a variety of mounting options, such as tabletop, wall, pole, and even ceiling (ceiling mount available separately).

Specifications

Wireless

Wireless Frequency Bands 2.4 GHz, 5 GHz Dual-Band
MU-MIMO Support 4 x 4
WLAN Mode Wi-Fi 5 (802.11ac)
Antenna Gain 1.6 to 4 dBi
Transmit Power 23 to 26 dBm
Antenna Placement Internal
Throughput
  • 2033 Mb/s Total
  • 2.4 GHz: 300 Mb/s
  • 5 GHz: 1733 Mb/s

Interface

Ports 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Security

Wireless Security AES, TKIP, WEP, WPA, WPA-PSK, WPA-Enterprise, WPA2

Management

Operation Modes Access Point

Hardware

Supported IEEE Standards 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n

Electrical

DC Input Power 44 to 57 VDC
Power Consumption 10.5 W

Environmental

Operating Temperature -22 to 158°F / -30 to 70°C
Operating Humidity 5 to 95%

General

Certifications CE, FCC, IC, as per Manufacturer
Mount Options Pole, Wall, Ceiling
Dimensions 6.28 x 1.9″ / 159.51 x 48.26 mm
Weight 0.69 lb / 313 g

Packaging Info

Package Weight 1.975 lb
Box Dimensions (LxWxH) 7.2 x 4.7 x 3.7″



Datasheet Download
